Figure 3513 · Throttle Link & Valve Lever (atm)

14 genuine catalog part numbers · Production from 2023-08

Open interactive figure

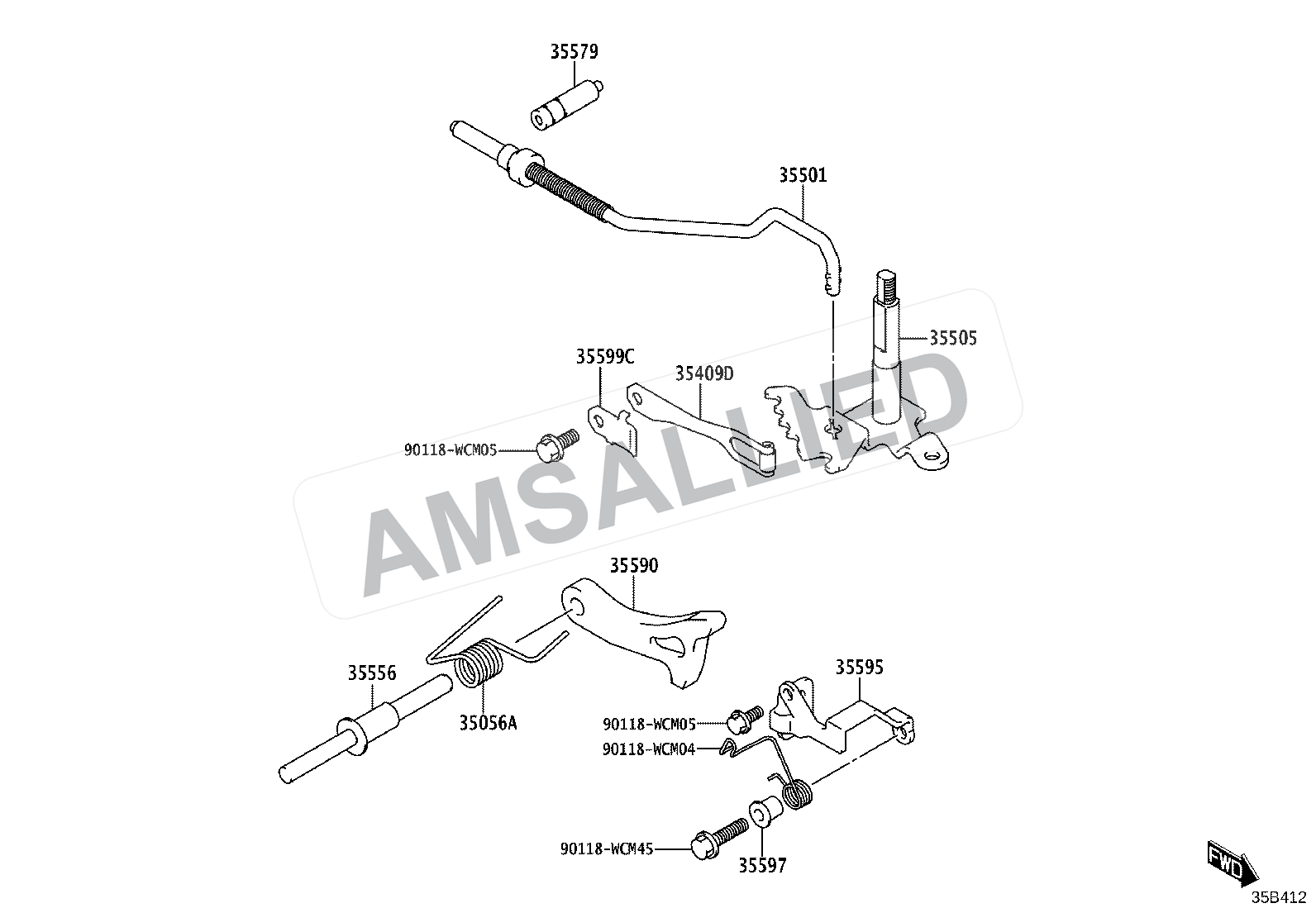

Toyota Rumion Throttle Link & Valve Lever (atm) exploded parts diagram, figure 3513 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

14 parts

Spring Sub-assy, Manual Detent

PNC 35409D

Rod Sub-assy, Parking Lock

PNC 35501

Cover, Manual Detent Spring

PNC 35599C

Lever Sub-assy, Manual Valve

PNC 35505

Pawl Assy, Parking Lock

PNC 35590

Shaft, Parking Lock Pawl

PNC 35556

Lever, Transmission Control Shaft

PNC 35572A

Pin, Parking Lock Pawl

PNC 35579

Bracket, Parking Lock Pawl

PNC 35595

Sleeve, Spring Guide

PNC 35597

Spring, Parking Lock Lever

PNC 35056A

Diagram Hardware / Fastener

PNC 90118WCM04

Diagram Hardware / Fastener

PNC 90118WCM05

Diagram Hardware / Fastener

PNC 90118WCM45
