Figure 3512 · Valve Body & Oil Strainer (atm)

11 genuine catalog part numbers · Production from 2023-08

Open interactive figure

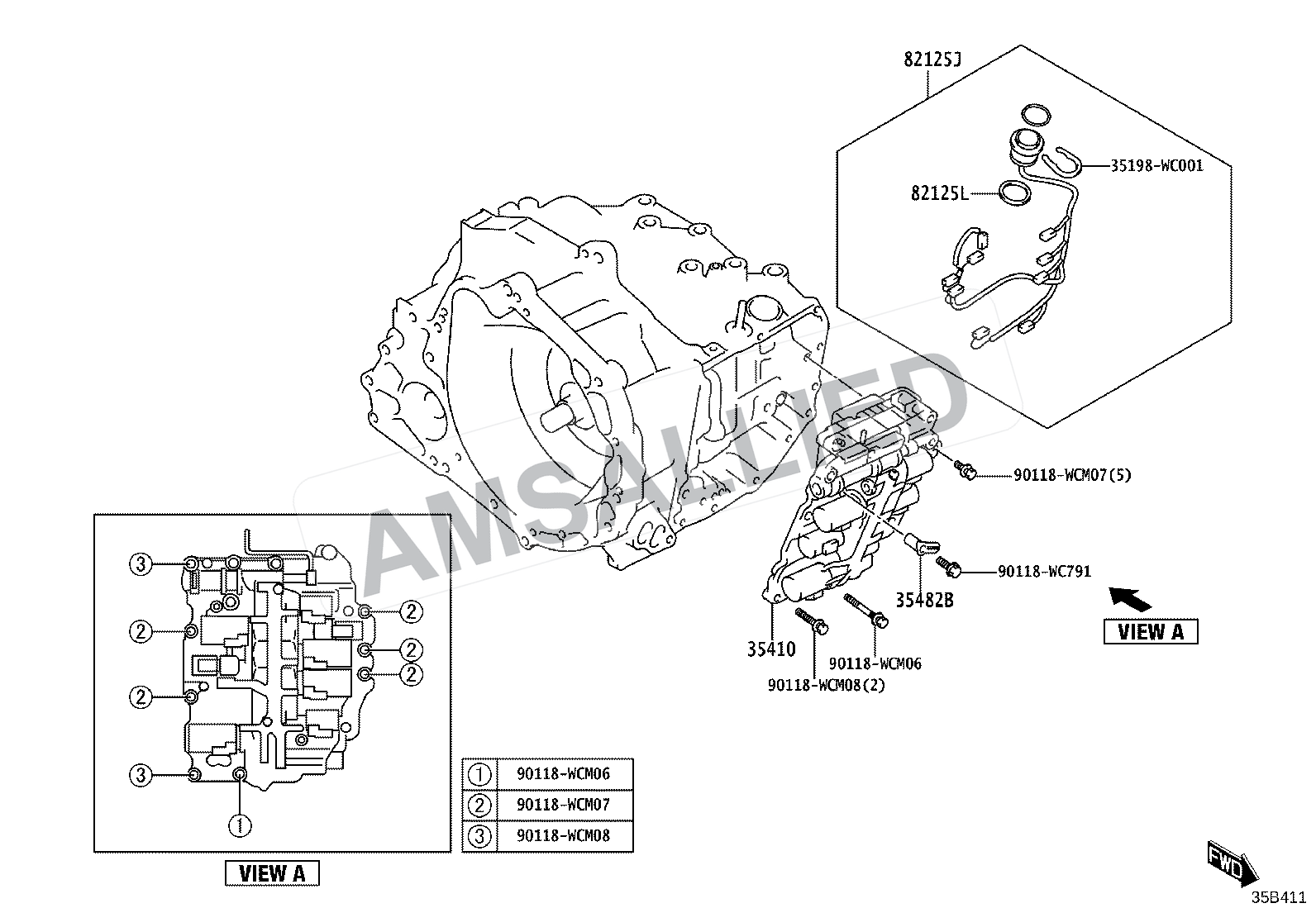

Toyota Rumion Valve Body & Oil Strainer (atm) exploded parts diagram, figure 3512 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

11 parts

Ring, O(for Transmission Wire)

PNC 82125L

Strainer Sub-assy, Oil

PNC 35303

Body Assy, Transmission Valve

PNC 35410

Clamp, Temperature Sensor

PNC 35482B

Wire, Transmission

PNC 82125J

Diagram Hardware / Fastener

PNC 90118WCM06

Diagram Hardware / Fastener

PNC 90118WCM07

Diagram Hardware / Fastener

PNC 90118WCM08

Diagram Hardware / Fastener

PNC 35198WC001

Diagram Hardware / Fastener

PNC 90118WC791

Diagram Hardware / Fastener

PNC 90118WCK63
