Gear Assy, Counter Driven & Differential Pinion
PNC 35080
Powertrain / Chassis

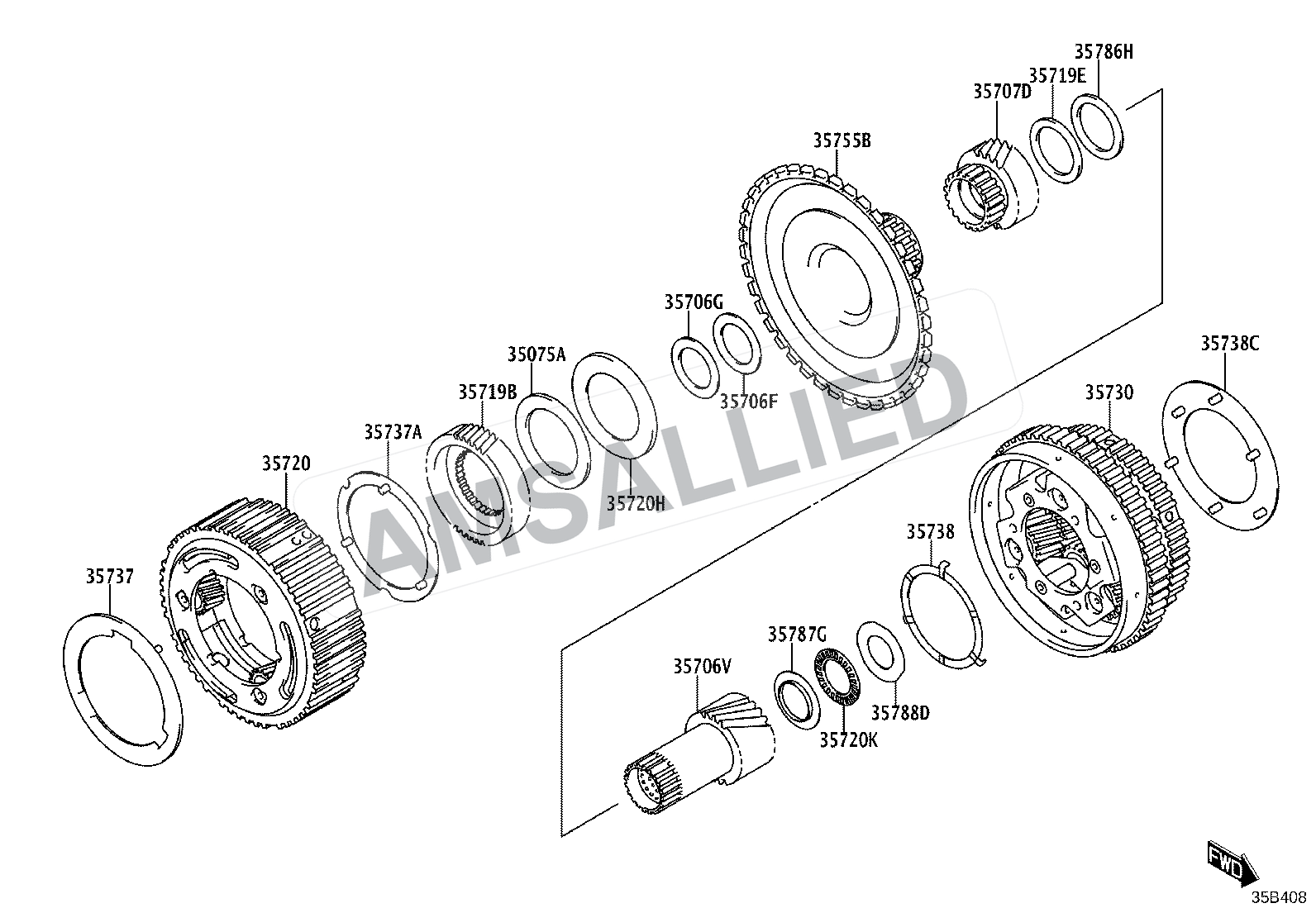

Figure 3510 · Planetary Gear, Reverse Piston & Counter Gear(atm)
30 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
30 partsCounter Gear Kit, Automatic Transaxle
PNC 35097
Gear Assy, Front Planetary
PNC 35720
Gear Sub-assy, Rear Planetary Sun
PNC 35707D
Gear Sub Assy, Planetary Sun
PNC 35706V
Gear, Planetary Sun
PNC 35719B
Gear Assy, Rear Planetary Sun
PNC 35730
Washer, Planetary Carrier Thrust
PNC 35737
Washer, Planetary Carrier Thrust, No.1
PNC 35737A
Drum, Sun Gear Input
PNC 35755B
Shim(for Pinion & Counter Driven Gear)
PNC 41206B
Race, Thrust Bearing, No.4
PNC 35785B
Race, Thrust Bearing, No.5
PNC 35775K
Bearing, Thrust Needle Roller (for Front Planetary Ring)
PNC 35075A
Race, Thrust Bearing(for Planetary Gear)
PNC 35720H
Bearing, Thrust (for Sun Gear Rear)
PNC 35706G
Race, Thrust Bearing (for Sun Gear Rear)
PNC 35706F
Washer, Planetary Carrier Thrust, No.2
PNC 35738
Washer, Planetary Carrier Thrust, No.2
PNC 35738C
Bearing, Thrust Needle Roller(for Planetary Sun Gear)
PNC 35719E
Race, Thrust Bearing, No.1
PNC 35786H
Race, Thrust Bearing, No.2
PNC 35787G
Bearing, Thrust Needle Roller(for Planetary Gear Rear)
PNC 35720K
Race, Thrust Bearing, No.3
PNC 35788D
Diagram Hardware / Fastener
PNC 90118WCM84
Diagram Hardware / Fastener
PNC 90118WCK61
Diagram Hardware / Fastener
PNC 90118WCM05
Diagram Hardware / Fastener
PNC 89411WC002
Diagram Hardware / Fastener
PNC 90118WCL51
Diagram Hardware / Fastener
PNC 90118WCK79
