Powertrain / Chassis

Figure 3507 · Brake Band & Multiple Disc Clutch (atm)

14 genuine catalog part numbers · Production from 2023-08

Open interactive figure

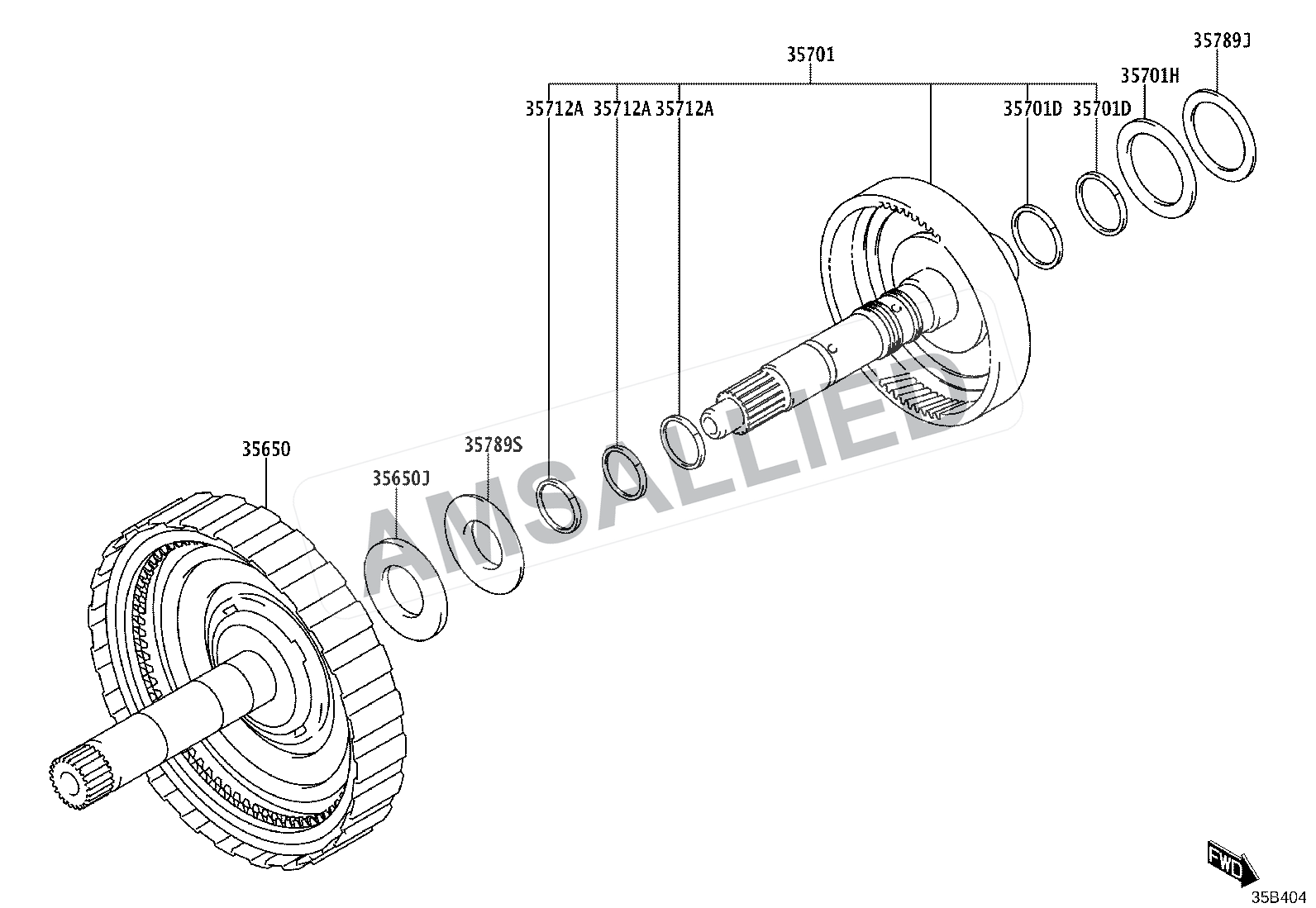

Toyota Rumion Brake Band & Multiple Disc Clutch (atm) exploded parts diagram, figure 3507 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

14 parts

Hub Sub-assy, Forward Clutch

PNC 35061

Clutch Assy, Rear Multiple Disc

PNC 35650

Spring, Compression(for B-1 Brake Piston)

PNC 35821M

Ring, O(for Brake Piston Cover)

PNC 35815D

Shaft Sub-assy, Input

PNC 35701

Ring, Input Shaft Oil Seal

PNC 35712A

Ring (for Input Shaft)

PNC 35701D

Race, Thrust Bearing (for Input Shaft Front)

PNC 35789J

Race, Thrust Bearing (for Input Shaft Rear)

PNC 35789S

Cover, Brake Piston

PNC 35815C

Piston, B-1 Brake

PNC 35821J

Bearing, Thrust Needle Roller (for Input Shaft)

PNC 35701H

Bearing, Thrust Needle Roller (for Direct Disc Clutch)

PNC 35650J

Ring, O(for B-1 Brake Piston)

PNC 35821L
