Plug, Breather, No.1 (atm)
PNC 35104B
Powertrain / Chassis

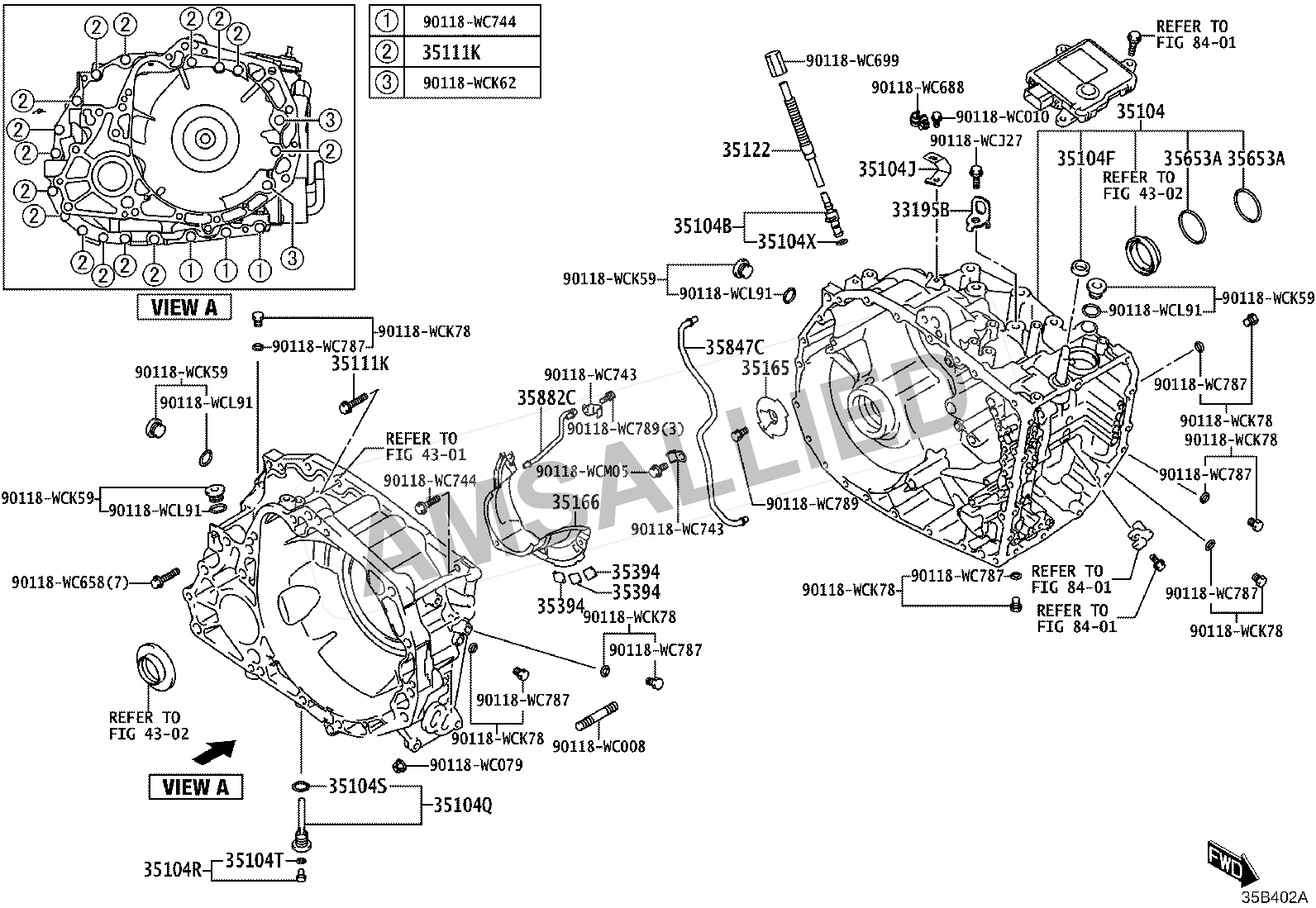

Figure 3503 · Transmission Case & Oil Pan (atm)
34 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
34 partsPlug, No.2 (for Transaxle Case)
PNC 35104R
Plate, Transmission Case, No.3
PNC 35166
Hanger, Transmission Case
PNC 33195B
Case Sub-assy, Automatic Transmission
PNC 35104
Pan Sub-assy, Automatic Transmission Oil
PNC 35106
Tube, Breather (for Automatic Transaxle)
PNC 35122
Plate, Transmission Case, No.1
PNC 35165
Magnet, Oil Cleaner (for Transmission)
PNC 35394
Tube, Transmission Lube Apply
PNC 35847C
Tube, Differential Gear Lube Apply
PNC 35882C
Seal, Oil (for Transaxle Case)
PNC 35104F
Ring, O (for Transaxle Case Plug No.2)
PNC 35104T
Plug, No.1 (for Transaxle Case)
PNC 35104Q
Bracket, Breather Plug Hose
PNC 35104J
Bolt (for Transmission Housing & Case Setting)
PNC 35111K
Bolt (for Transaxle Oil Pan)
PNC 35106E
Ring, O (for Breather Plug)
PNC 35104X
Ring, O (for Transaxle Case Plug No.1)
PNC 35104S
Ring, Direct Clutch Drum Oil Seal
PNC 35653A
Diagram Hardware / Fastener
PNC 90118WC743
Diagram Hardware / Fastener
PNC 90118WC789
Diagram Hardware / Fastener
PNC 90118WC079
Diagram Hardware / Fastener
PNC 90118WCM05
Diagram Hardware / Fastener
PNC 90118WCK78
Diagram Hardware / Fastener
PNC 90118WC008
Diagram Hardware / Fastener
PNC 90118WC744
Diagram Hardware / Fastener
PNC 90118WCL91
Diagram Hardware / Fastener
PNC 90118WCK59
Diagram Hardware / Fastener
PNC 90118WC688
Diagram Hardware / Fastener
PNC 90118WC010
Diagram Hardware / Fastener
PNC 90118WCJ27
Diagram Hardware / Fastener
PNC 90118WC699
Diagram Hardware / Fastener
PNC 90118WC658
