Figure 3307 · Gear Shift Fork & Lever Shaft (mtm)

17 genuine catalog part numbers · Production from 2023-08

Open interactive figure

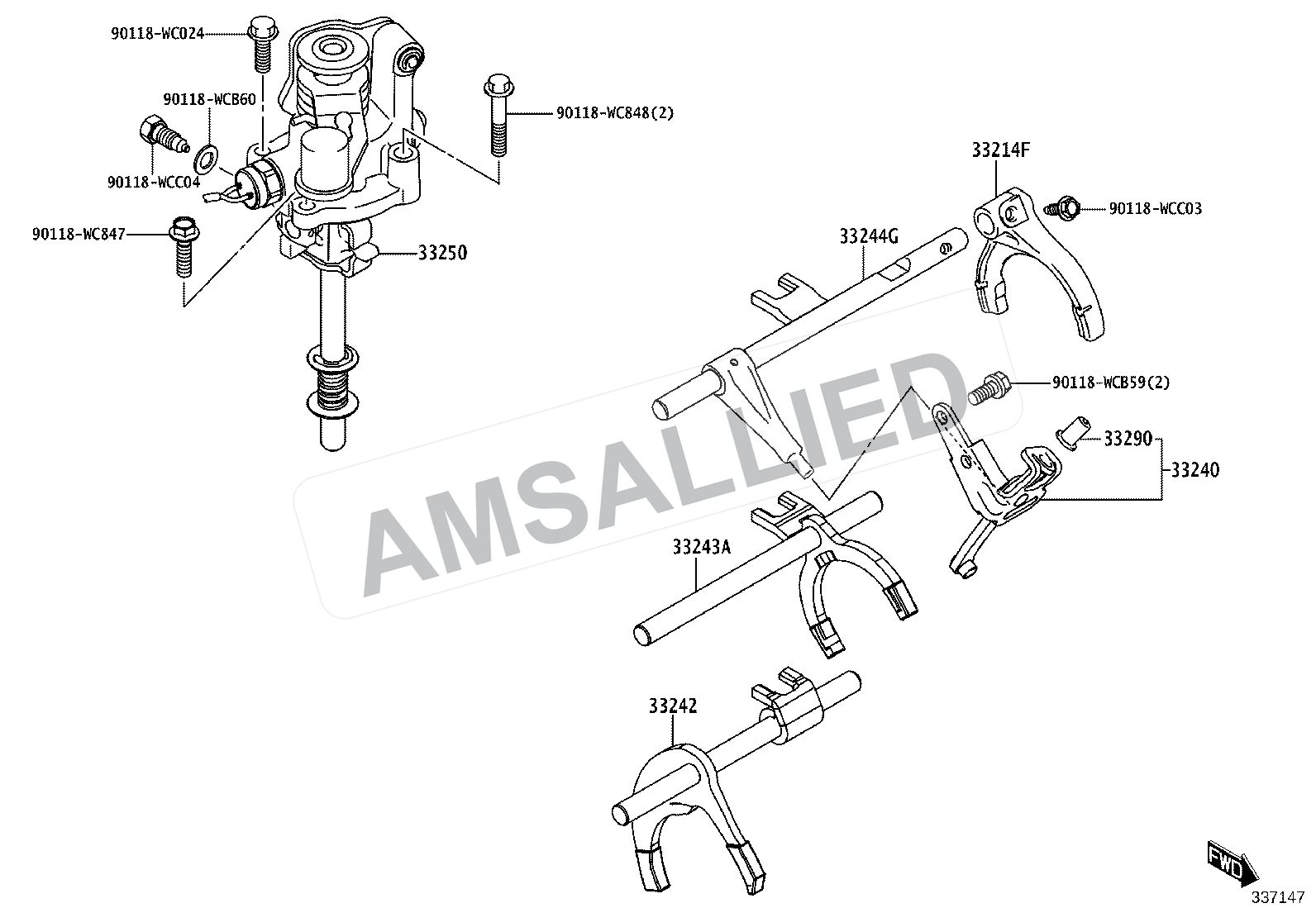

Toyota Rumion Gear Shift Fork & Lever Shaft (mtm) exploded parts diagram, figure 3307 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

17 parts

33205-WC003

Shaft, Gear Shift Fork, No.1

PNC 33242

33214-WC001

Fork, 5th Shift

PNC 33214F

33221-WC002

Bracket Assy, Reverse Shift Arm

PNC 33240

33221-WC003

Bracket Assy, Reverse Shift Arm

PNC 33240

33223-WC001

Ball Assy, Lock, No.1

PNC 33290

33223-WC002

Ball Assy, Lock, No.1

PNC 33290

33243-WC002

Shaft, Gear Shift Fork, No.2

PNC 33243A

33244-WC002

Shaft, Gear Shift Fork, No.3

PNC 33244G

33250-WC010

Shaft Assy, Shift & Select Lever

PNC 33250

33250-WC011

Shaft Assy, Shift & Select Lever

PNC 33250

90118-WCC03

Diagram Hardware / Fastener

PNC 90118WCC03

90118-WCB59

Diagram Hardware / Fastener

PNC 90118WCB59

90118-WCC04

Diagram Hardware / Fastener

PNC 90118WCC04

90118-WC848

Diagram Hardware / Fastener

PNC 90118WC848

90118-WC847

Diagram Hardware / Fastener

PNC 90118WC847

90118-WC024

Diagram Hardware / Fastener

PNC 90118WC024

90118-WCB60

Diagram Hardware / Fastener

PNC 90118WCB60
