Figure 2501 · Exhaust Gas Recirculation System

16 genuine catalog part numbers · Production from 2023-08

Open interactive figure

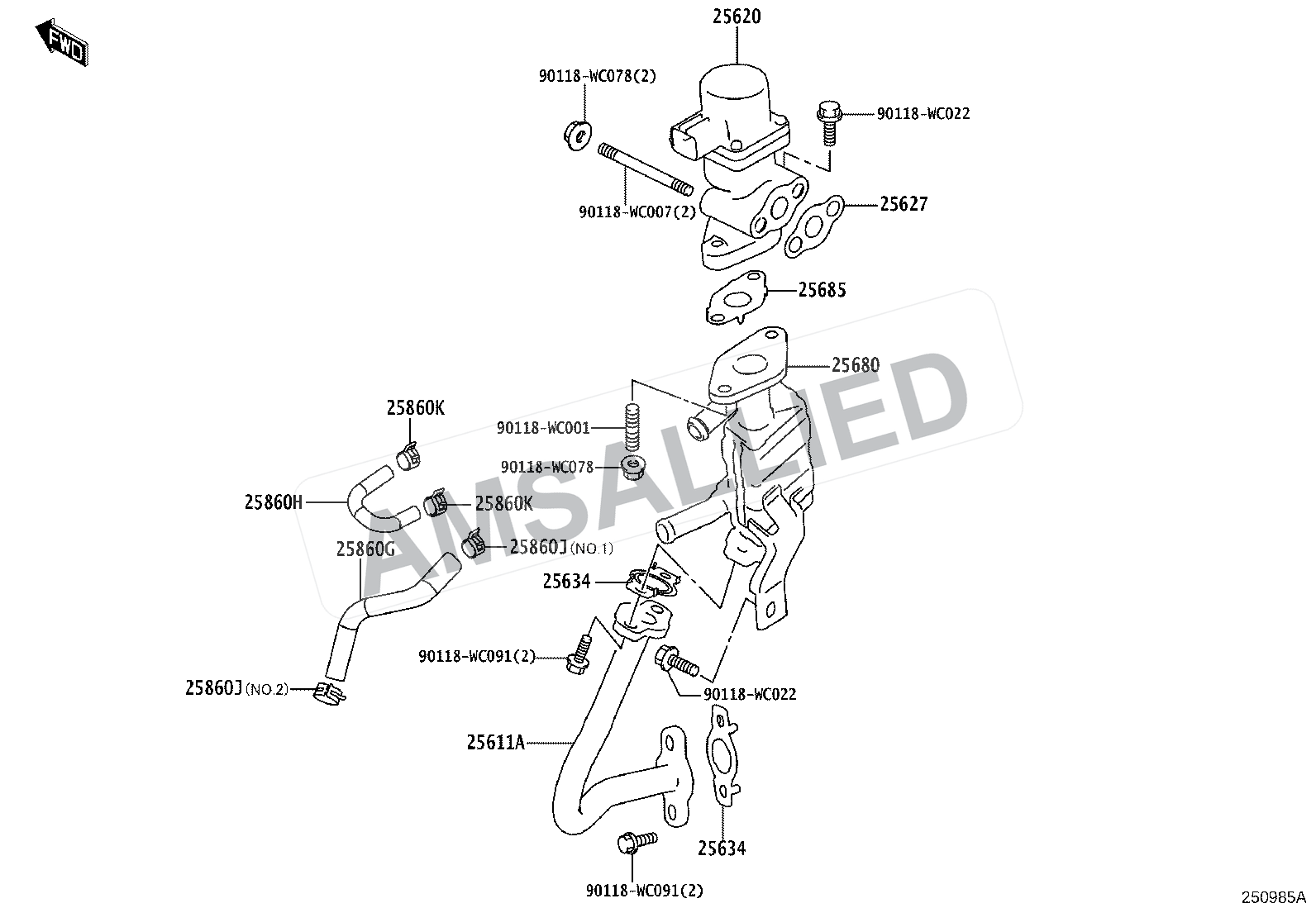

Toyota Rumion Exhaust Gas Recirculation System exploded parts diagram, figure 2501
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

16 parts
16261-WC003

Hose, Water By-pass Hose No.2(for Egr Cooler)

PNC 25860H

16264-WC001

Hose, Water By-pass Hose No.1(for Egr Cooler)

PNC 25860G

90118-WCK17

Hose, Clip No.1(for Egr Cooler)

PNC 25860J, 25860K
