Clutch Sub-assy, Starter Center Bearing
PNC 28021
Tool / Engine / Fuel

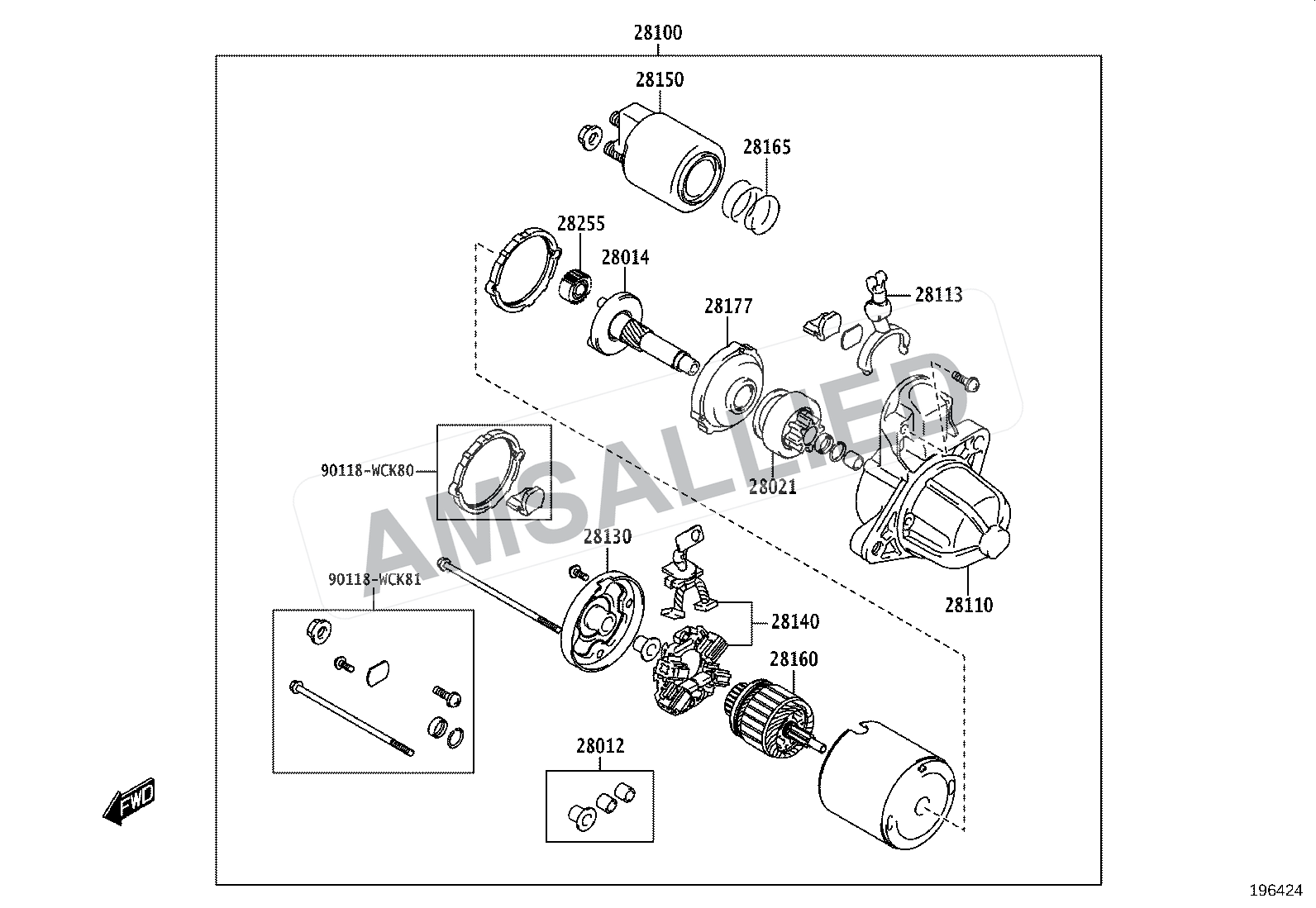

Figure 1904 · Starter
17 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
17 partsShaft Sub-assy, Planet Carrier
PNC 28014
Starter Assy
PNC 28100
Housing Assy, Starter Drive
PNC 28110
Lever, Starter Pinion Drive
PNC 28113
Frame Assy, Starter Commutator End
PNC 28130
Holder Assy, Starter Brush
PNC 28140
Switch Assy, Magnet Starter
PNC 28150
Armature Assy, Starter
PNC 28160
Spring, Starter Magnet Switch Return
PNC 28165
Plate(for Starter Armature)
PNC 28177
Gear, Planet
PNC 28255
Bearing Sub-assy, Center
PNC 28012
Diagram Hardware / Fastener
PNC 90118WCK80
Diagram Hardware / Fastener
PNC 90118WCK81
Diagram Hardware / Fastener
PNC 90118WC036
Diagram Hardware / Fastener
PNC 90118WC078
