Figure 1903 · Alternator

20 genuine catalog part numbers · Production from 2023-08

Open interactive figure

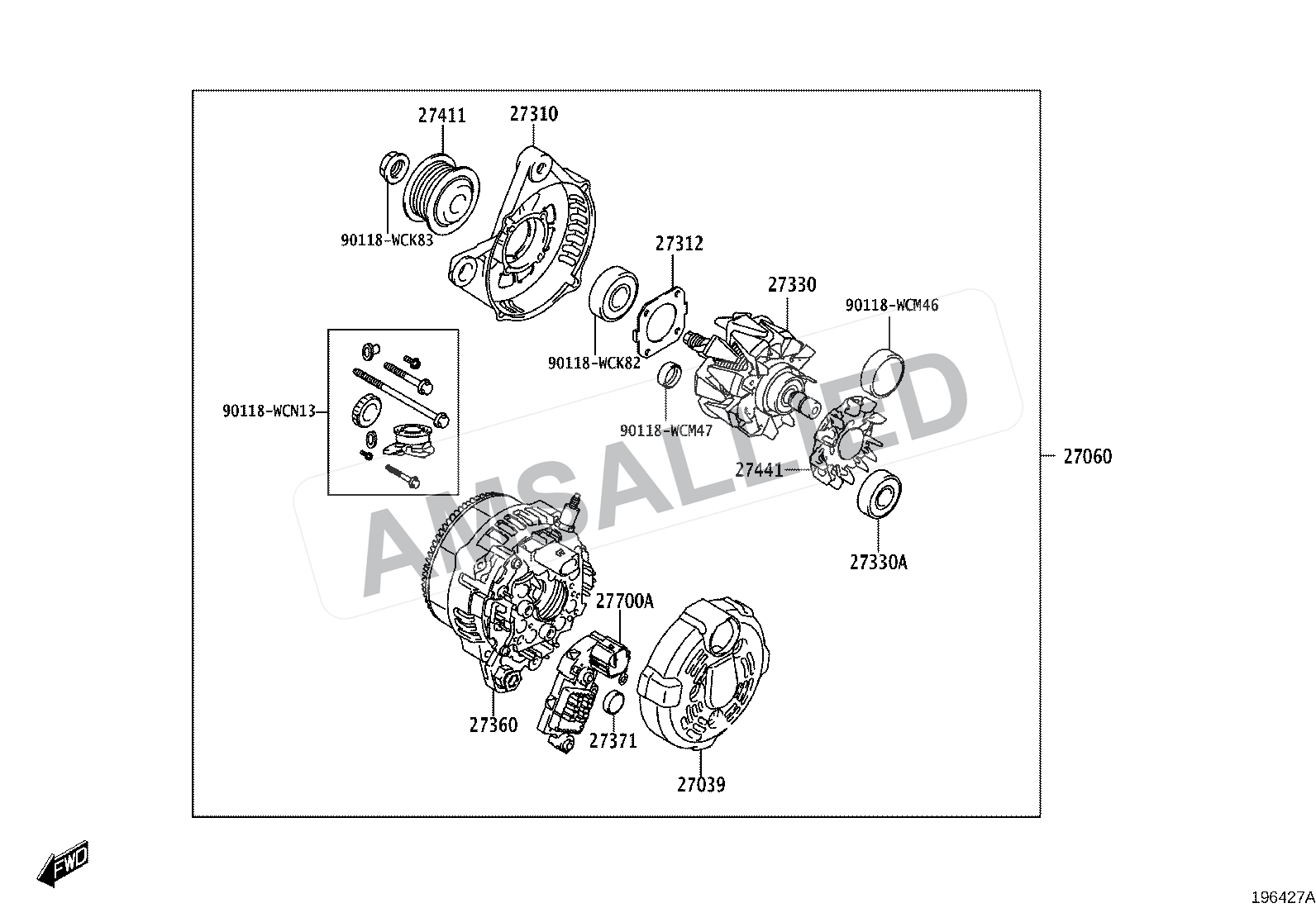

Toyota Rumion Alternator exploded parts diagram, figure 1903 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

20 parts

27039-WC003

Cover, Alternator Rear End

PNC 27039

27060-WC007

Alternator Assy, W/regulator

PNC 27060

27310-WC003

Frame Assy, Drive End, Alternator

PNC 27310

27312-WC002

Plate, Retainer

PNC 27312

27330-WC003

Rotor Assy, Alternator

PNC 27330

27360-WC004

Coil Assy, Alternator

PNC 27360

27370-WC002

Brush, Alternator

PNC 27371

27411-WC002

Pulley, Alternator

PNC 27411

27441-WC001

Fan, Alternator

PNC 27441

27700-WC002

Regulator Assy, Generator

PNC 27700A

90118-WCT27

Bearing(for Alternator Rotor)

PNC 27330A

G1280-WC011

Alternator Assy

PNC 27020

90118-WCK83

Diagram Hardware / Fastener

PNC 90118WCK83

90118-WCK82

Diagram Hardware / Fastener

PNC 90118WCK82

90118-WCN13

Diagram Hardware / Fastener

PNC 90118WCN13

90118-WCM47

Diagram Hardware / Fastener

PNC 90118WCM47

90118-WCM46

Diagram Hardware / Fastener

PNC 90118WCM46

90118-WC821

Diagram Hardware / Fastener

PNC 90118WC821

90118-WC078

Diagram Hardware / Fastener

PNC 90118WC078

90118-WCS92

Diagram Hardware / Fastener

PNC 90118WCS92
