Tool / Engine / Fuel

Figure 1708 · Vacuum Piping

7 genuine catalog part numbers · Production from 2023-08

Open interactive figure

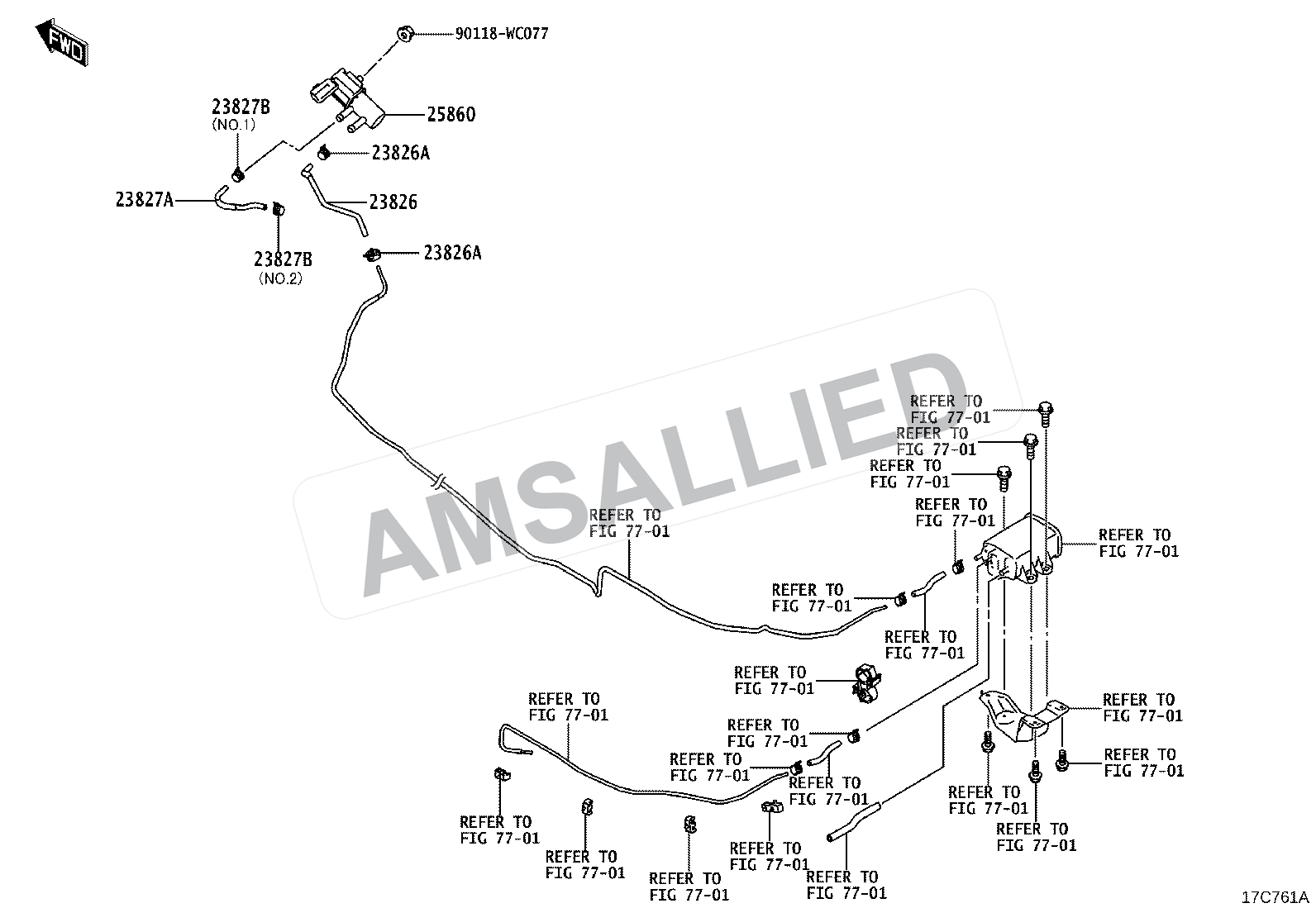

Toyota Rumion Vacuum Piping exploded parts diagram, figure 1708 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

7 parts

Hose, Fuel Vapor Feed, No.2

PNC 23827A

Valve Assy, Vacuum Switching, No.1

PNC 25860

Hose, Fuel Vapor Feed, No.1

PNC 23826

Hose, Fuel Vapor Feed, No.1

PNC 23826

Clip(for Fuel Vapor Feed Hose, No.1)

PNC 23826A, 23827B

Clip(for Fuel Vapor Feed Hose, No.2)

PNC 23827B

Diagram Hardware / Fastener

PNC 90118WC077
