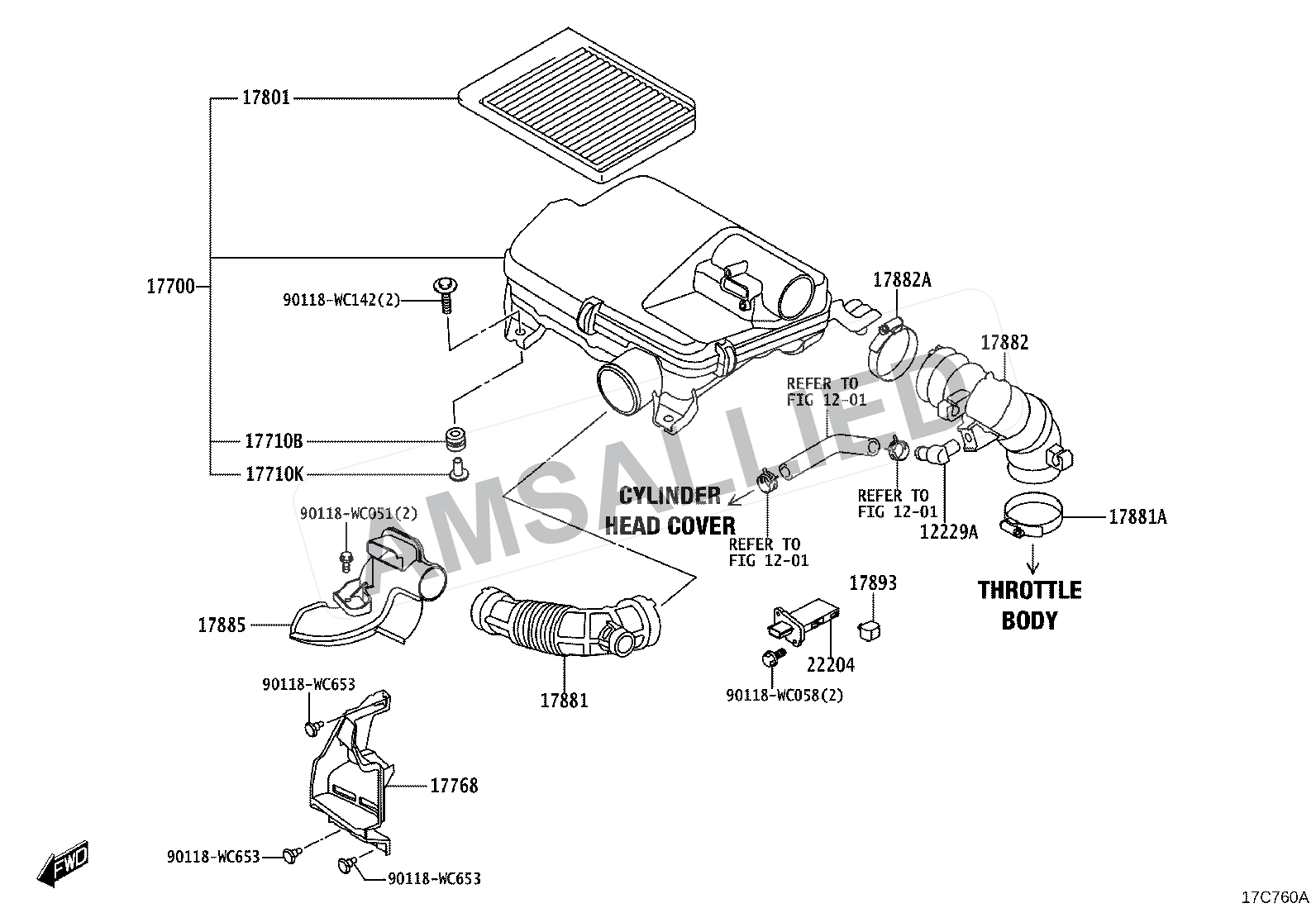

Figure 1703 · Air Cleaner

12261-WC004

Pipe, Ventilation

PNC 12229A

17700-WC005

Cleaner Assy, Air

PNC 17700

17801-WC004

Element Sub-assy, Air Cleaner Filter

PNC 17801

17881-WC004

Hose, Air Cleaner, No.2

PNC 17882

17881-WC009

Hose, Air Cleaner, No.1

PNC 17881

17885-WC002

Pipe, Air Cleaner

PNC 17885

17893-WC001

Resonator, Intake Air

PNC 17893

22204-WC003

Meter Sub-assy, Intake Air Flow

PNC 22204

53629-WC002

Cover, Air Cleaner Inlet

PNC 17768

90118-WC322

Support, Air Cleaner

PNC 17769

90118-WCT23

Collar(for Air Cleaner)

PNC 17710K

90118-WCT24

Grommet

PNC 17710B

90118-WCT57

Clamp(for Air Cleaner Hose, No.1)

PNC 17881A

90118-WCT58

Clamp(for Air Cleaner Hose, No.2)

PNC 17882A

90118-WC142

Diagram Hardware / Fastener

PNC 90118WC142

90118-WC051

Diagram Hardware / Fastener

PNC 90118WC051

90118-WC653

Diagram Hardware / Fastener

PNC 90118WC653

90118-WC058

Diagram Hardware / Fastener

PNC 90118WC058
