Figure 1702 · Exhaust Pipe

11 genuine catalog part numbers · Production from 2023-08

Open interactive figure

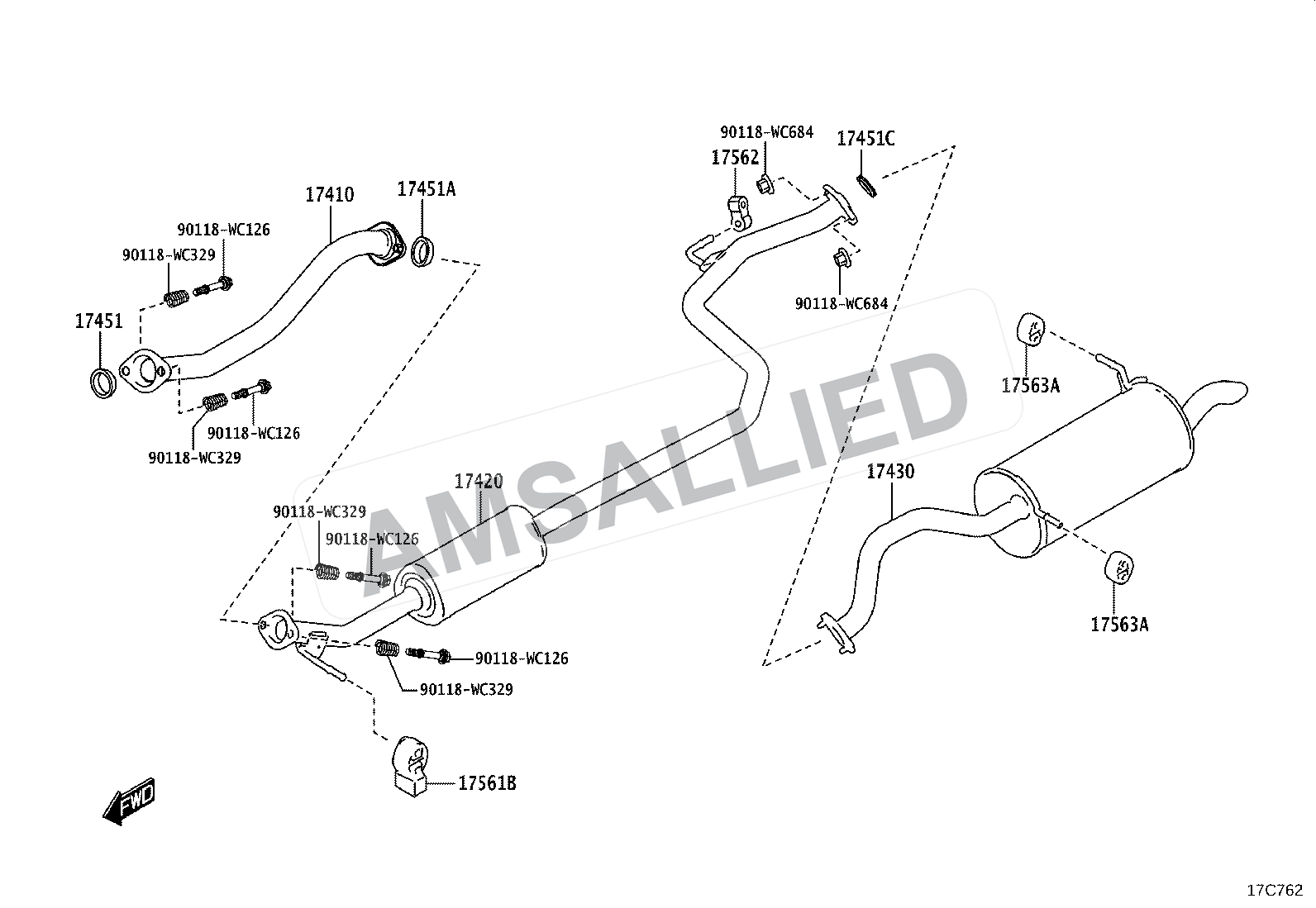

Toyota Rumion Exhaust Pipe exploded parts diagram, figure 1702 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

11 parts

Pipe Assy, Exhaust, Front

PNC 17410

Pipe Assy, Exhaust, Center

PNC 17420

Pipe Assy, Exhaust, Tail

PNC 17430

Gasket, Exhaust Pipe

PNC 17451, 17451A

Support, Exhaust Pipe, No.2

PNC 17562

Support, Exhaust Pipe, No.1

PNC 17561B

Support, Exhaust Pipe, No.3

PNC 17563A

Gasket, Exhaust Pipe, No.3

PNC 17451C

Diagram Hardware / Fastener

PNC 90118WC126

Diagram Hardware / Fastener

PNC 90118WC329

Diagram Hardware / Fastener

PNC 90118WC684
