Figure 1501 · Engine Oil Pump

17 genuine catalog part numbers · Production from 2023-08

Open interactive figure

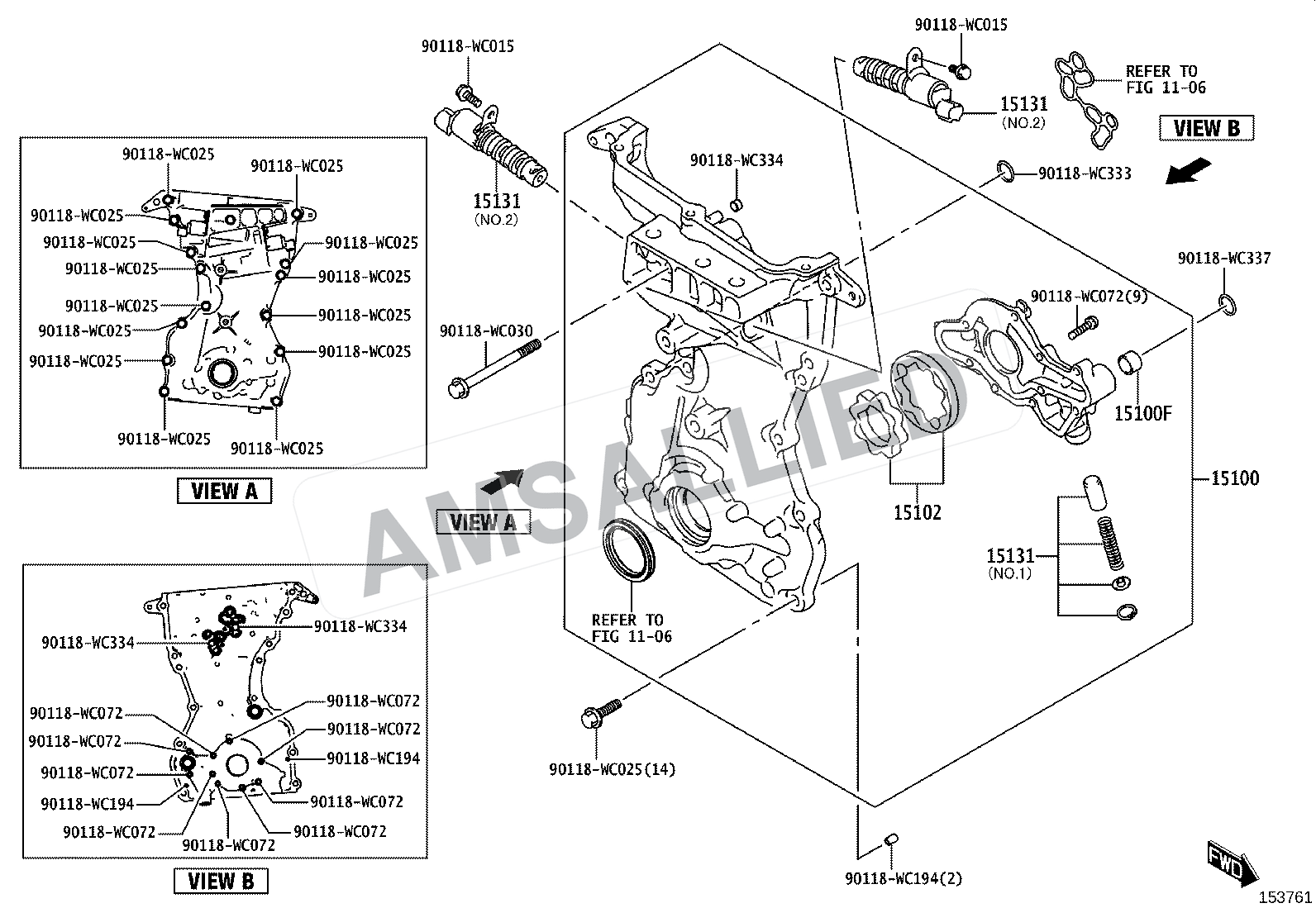

Toyota Rumion Engine Oil Pump exploded parts diagram, figure 1501 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

17 parts

11310-WC010

Pump Assy, Oil

PNC 15100

15103-WC001

Rotor Set, Oil Pump

PNC 15102

15104-WC002

Strainer Sub-assy, Oil

PNC 15104

15131-WC002

Valve, Oil Pump Relief

PNC 15131

15186-WC001

Bush (for Oil Pump)

PNC 15100F

15330-WC003

Valve, Oil Pump Relief

PNC 15131

90118-WC300

Bolt, Stud(for Oil Strainer)

PNC 15104E

90118-WC337

Gasket, Oil Strainer

PNC 15147

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015

90118-WC025

Diagram Hardware / Fastener

PNC 90118WC025

90118-WC030

Diagram Hardware / Fastener

PNC 90118WC030

90118-WC072

Diagram Hardware / Fastener

PNC 90118WC072

90118-WC194

Diagram Hardware / Fastener

PNC 90118WC194

90118-WC333

Diagram Hardware / Fastener

PNC 90118WC333

90118-WC334

Diagram Hardware / Fastener

PNC 90118WC334

90118-WC077

Diagram Hardware / Fastener

PNC 90118WC077

90118-WC070

Diagram Hardware / Fastener

PNC 90118WC070
