Sprocket Assy, Camshaft Timing
PNC 13520
Tool / Engine / Fuel

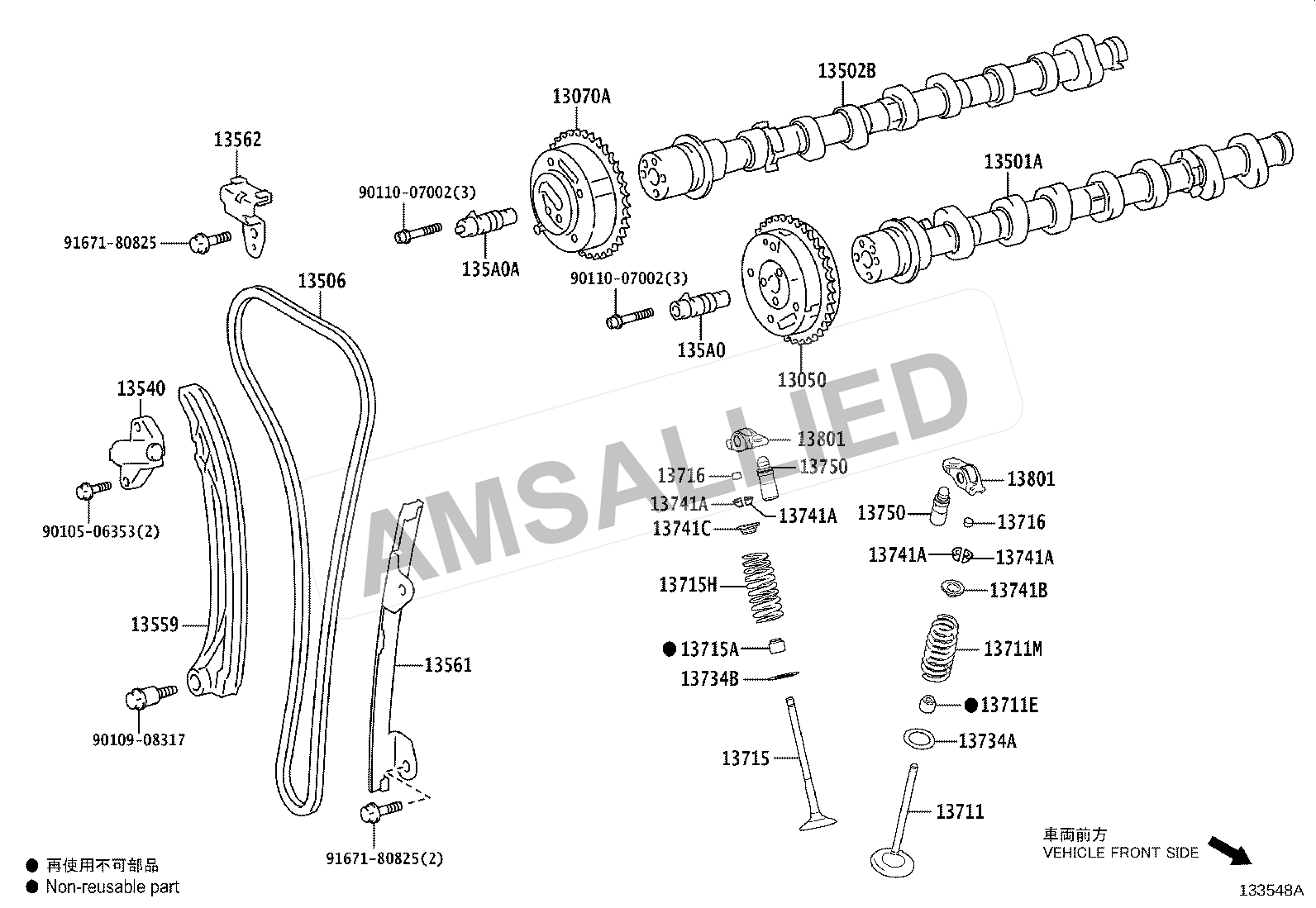

Figure 1302 · Camshaft & Valve
25 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
25 partsSprocket Assy, Camshaft Timing, No.2
PNC 13529G
Camshaft Sub-assy, Intake
PNC 13501A
Camshaft Sub-assy, Exhaust
PNC 13502B
Chain Sub-assy
PNC 13506
Jet, Oil
PNC 13516
Tensioner Assy, Chain, No.1
PNC 13540
Slipper, Chain Tensioner
PNC 13559
Guide, Timing Chain
PNC 13566B
Valve, Intake
PNC 13711
Valve, Exhaust
PNC 13715
Valve, Exhaust
PNC 13715
Seat, Intake Valve Spring
PNC 13734A, 13734B
Retainer, Valve Spring
PNC 13741
Adjuster Assy, Valve Lash
PNC 13750
Arm Sub-assy, Valve Rocker, No.1
PNC 13801
Lock, Valve Spring Retainer
PNC 13741A
Seal, Intake Valve Stem Oil
PNC 13711E, 13715A
Spring, Compression(for Exhaust Valve)
PNC 13715H
Spring, Compression(for Intake Valve)
PNC 13711M
Seal, Intake Valve Stem Oil
PNC 13711E, 13715A
Diagram Hardware / Fastener
PNC 9010506353
Diagram Hardware / Fastener
PNC 9010908317
Diagram Hardware / Fastener
PNC 9167180825
Diagram Hardware / Fastener
PNC 9011007002
