Tool / Engine / Fuel

Figure 1301 · Crankshaft & Piston

65 genuine catalog part numbers · Production from 2023-08

Open interactive figure

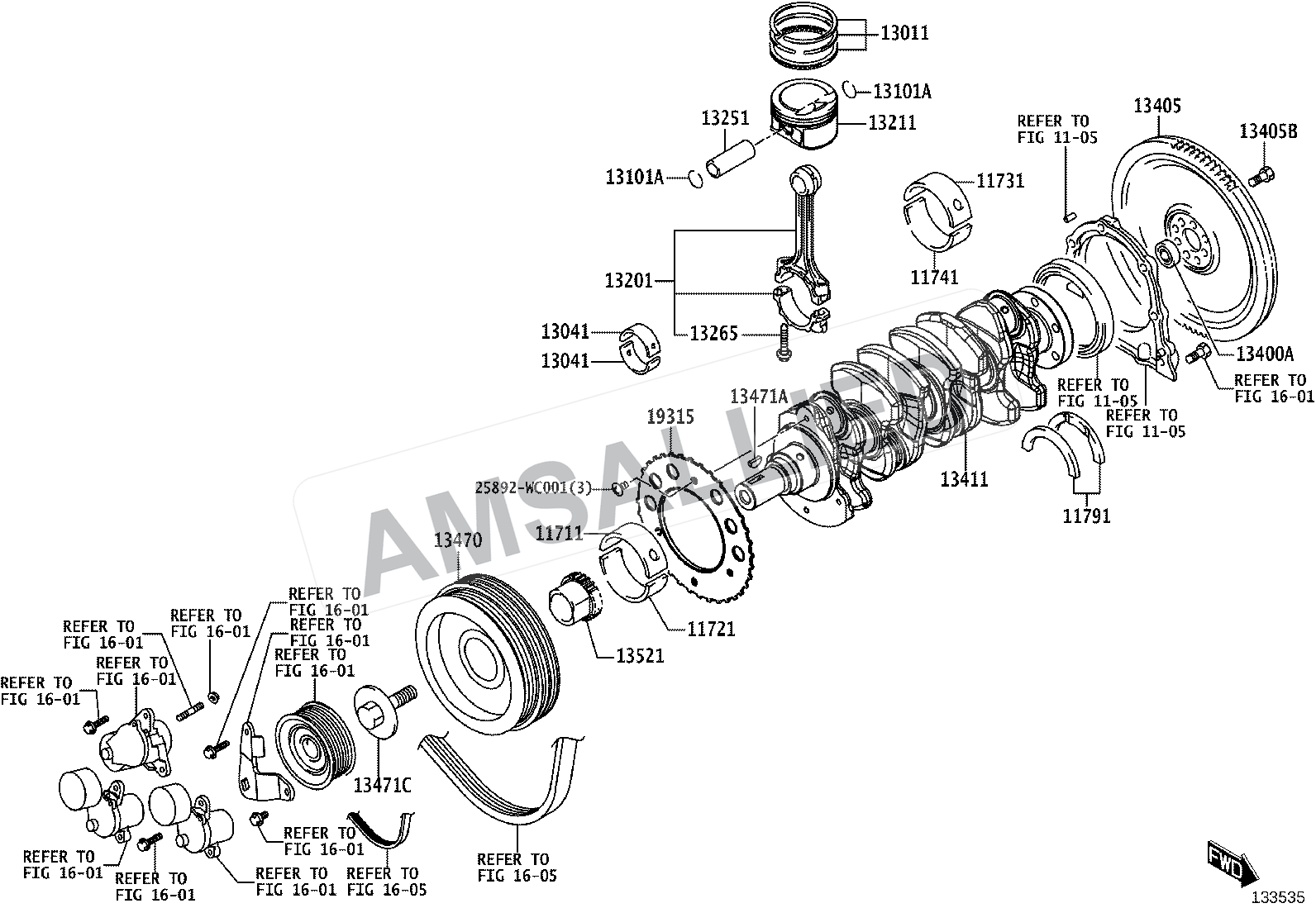

Toyota Rumion Crankshaft & Piston exploded parts diagram, figure 1301 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

65 parts

11711-WC001

Bearing, Crankshaft

PNC 11711

11711-WC002

Bearing, Crankshaft

PNC 11711

11711-WC003

Bearing, Crankshaft

PNC 11711

11711-WC004

Bearing, Crankshaft

PNC 11711

11711-WC005

Bearing, Crankshaft

PNC 11711

11711-WC006

Bearing, Crankshaft

PNC 11711

11711-WC007

Bearing, Crankshaft

PNC 11711

11711-WC008

Bearing, Crankshaft

PNC 11711

11711-WC009

Bearing, Crankshaft

PNC 11711

11711-WC010

Bearing, Crankshaft

PNC 11711

11711-WC011

Bearing, Crankshaft, No.3

PNC 11731

11711-WC012

Bearing, Crankshaft, No.3

PNC 11731

11711-WC013

Bearing, Crankshaft, No.3

PNC 11731

11711-WC014

Bearing, Crankshaft, No.3

PNC 11731

11711-WC015

Bearing, Crankshaft, No.3

PNC 11731

11711-WC016

Bearing, Crankshaft, No.3

PNC 11731

11711-WC017

Bearing, Crankshaft, No.3

PNC 11731

11711-WC018

Bearing, Crankshaft, No.3

PNC 11731

11711-WC019

Bearing, Crankshaft, No.3

PNC 11731

11711-WC020

Bearing, Crankshaft, No.3

PNC 11731

11721-WC001

Bearing, Crankshaft, No.2

PNC 11721

11721-WC002

Bearing, Crankshaft, No.2

PNC 11721

11721-WC003

Bearing, Crankshaft, No.2

PNC 11721

11721-WC004

Bearing, Crankshaft, No.2

PNC 11721

11721-WC005

Bearing, Crankshaft, No.2

PNC 11721

11721-WC006

Bearing, Crankshaft, No.2

PNC 11721

11721-WC007

Bearing, Crankshaft, No.2

PNC 11721

11721-WC008

Bearing, Crankshaft, No.2

PNC 11721

11721-WC009

Bearing, Crankshaft, No.2

PNC 11721

11721-WC010

Bearing, Crankshaft, No.2

PNC 11721

11721-WC011

Bearing, Crankshaft, No.4

PNC 11741

11721-WC012

Bearing, Crankshaft, No.4

PNC 11741

11721-WC013

Bearing, Crankshaft, No.4

PNC 11741

11721-WC014

Bearing, Crankshaft, No.4

PNC 11741

11721-WC015

Bearing, Crankshaft, No.4

PNC 11741

11721-WC016

Bearing, Crankshaft, No.4

PNC 11741

11721-WC017

Bearing, Crankshaft, No.4

PNC 11741

11721-WC018

Bearing, Crankshaft, No.4

PNC 11741

11721-WC019

Bearing, Crankshaft, No.4

PNC 11741

11721-WC020

Bearing, Crankshaft, No.4

PNC 11741

11791-WC008

Washer, Crankshaft Thrust, Upper

PNC 11791

11792-WC002

Washer, Crankshaft Thrust, Upper

PNC 11791

13011-WC005

Ring Set, Piston

PNC 13011

13201-WC006

Rod Sub-assy, Connecting

PNC 13201

13211-WC006

Piston

PNC 13211

13251-WC001

Pin, Piston

PNC 13251

13265-WC002

Bolt, Connecting Rod

PNC 13265

13281-WC002

Bearing, Connecting Rod

PNC 13041

13281-WC003

Bearing, Connecting Rod

PNC 13041

13281-WC004

Bearing, Connecting Rod

PNC 13041

13281-WC007

Bearing, Connecting Rod

PNC 13041

13281-WC008

Bearing, Connecting Rod

PNC 13041

13281-WC012

Bearing, Connecting Rod

PNC 13041

13401-WC006

Crankshaft

PNC 13411

13405-WC007

Flywheel Sub-assy

PNC 13405

13470-WC004

Pulley Assy, Crankshaft

PNC 13470

13470-WC005

Pulley Assy, Crankshaft

PNC 13470

13521-WC002

Gear Or Sprocket, Crankshaft Timing

PNC 13521

19315-WC005

Plate, Crank Angle Sensor, No.1

PNC 19315

90118-WC083

Key, Crankshaft(for Crankshaft Pulley Set)

PNC 13471A

90118-WC096

Bolt, Flywheel Setting

PNC 13405B

90118-WC227

Ring, Hole Snap(for Piston Pin)

PNC 13101A

90118-WC309

Bearing(for Crankshaft)

PNC 13400A

90118-WCA47

Bolt(for Crankshaft Pulley Set)

PNC 13471C

25892-WC001

Diagram Hardware / Fastener

PNC 25892WC001
