Figure 1201 · Ventilation Hose

9 genuine catalog part numbers · Production from 2023-08

Open interactive figure

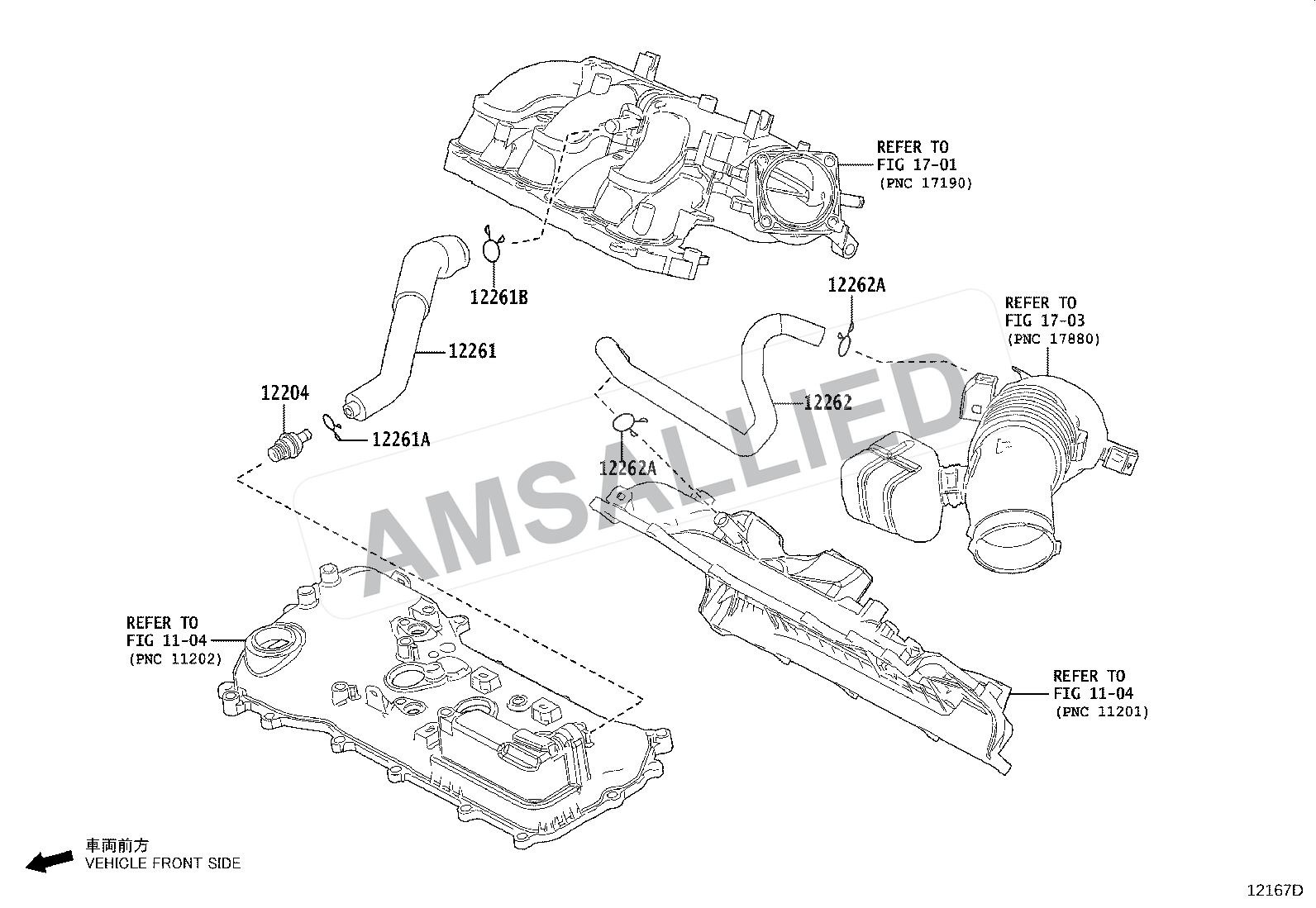

Toyota Rumion Ventilation Hose exploded parts diagram, figure 1201 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

9 parts

Valve Sub-assy, Ventilation

PNC 12204

Case Sub-assy, Ventilation

PNC 12205

Hose, Ventilation, No.2

PNC 12262

Hose, Ventilation

PNC 12261

Gasket, Oil Separator

PNC 12273B

Clip Or Clamp(for Ventilation Hose)

PNC 12261A

Clip Or Clamp(for Ventilation Hose)

PNC 12261B, 12262A

Diagram Hardware / Fastener

PNC 90118WCT56

Diagram Hardware / Fastener

PNC 90118WC017
