Tool / Engine / Fuel

Figure 1107 · Mounting

19 genuine catalog part numbers · Production from 2023-08

Open interactive figure

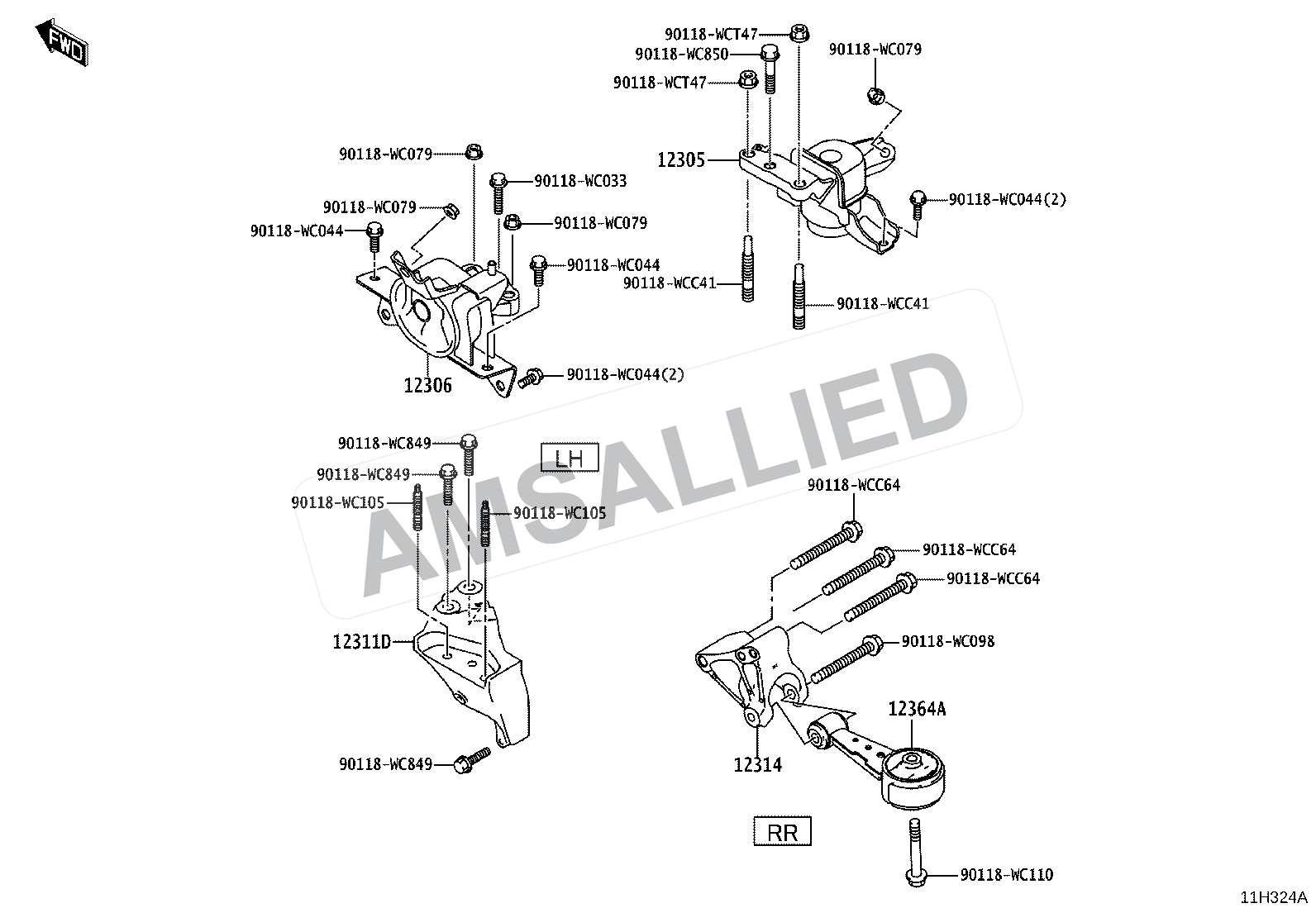

Toyota Rumion Mounting exploded parts diagram, figure 1107
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

19 parts
12305-WC014

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12306-WC016

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12306-WC017

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12313-WC012

Bracket, Engine Lateral Control Rod

PNC 12314

12313-WC013

Bracket, Engine Lateral Control Rod

PNC 12314
