Retainer, Engine Rear Oil Seal
PNC 11381G
Tool / Engine / Fuel

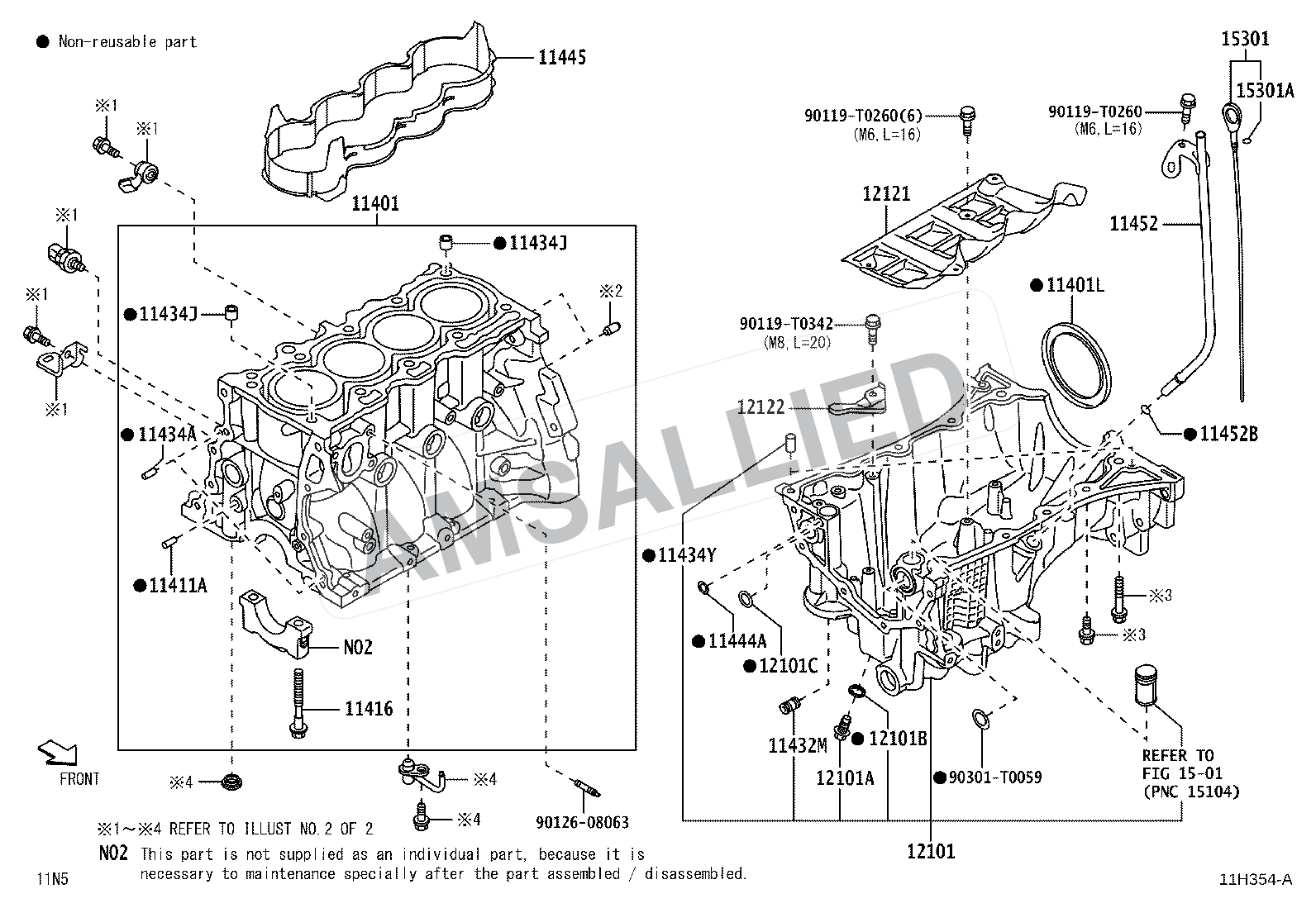

Figure 1105 · Cylinder Block
20 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
20 partsRetainer, Engine Rear Oil Seal
PNC 11381G
Block Sub-assy, Cylinder
PNC 11401
Pan Sub-assy, Oil
PNC 12101
Plate, Oil Pan Baffle, No.1
PNC 12121
Nozzle Sub-assy, Oil, No.1
PNC 15708
Pin, Ring(for Crankshaft Bearing Cap Set)
PNC 11416A
Gasket(for Oil Pan Drain Plug)
PNC 12101B
Plug, Tight, No.1(for Cylinder Block)
PNC 11431A
Plug(for Oil Pan Drain)
PNC 12101A
Pin, Straight(for Oil Pan)
PNC 11434Y
Gasket(for Cylinder Block Plug)
PNC 11401E
Bolt(for Crankshaft Bearing Cap Set)
PNC 11416
Seal, Engine Rear Oil
PNC 11401L
Diagram Hardware / Fastener
PNC 90119T0260
Diagram Hardware / Fastener
PNC 90119T0342
Diagram Hardware / Fastener
PNC 9012608063
Diagram Hardware / Fastener
PNC 90301T0059
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 90118WC188
