Head Sub-assy, Cylinder
PNC 11101
Tool / Engine / Fuel

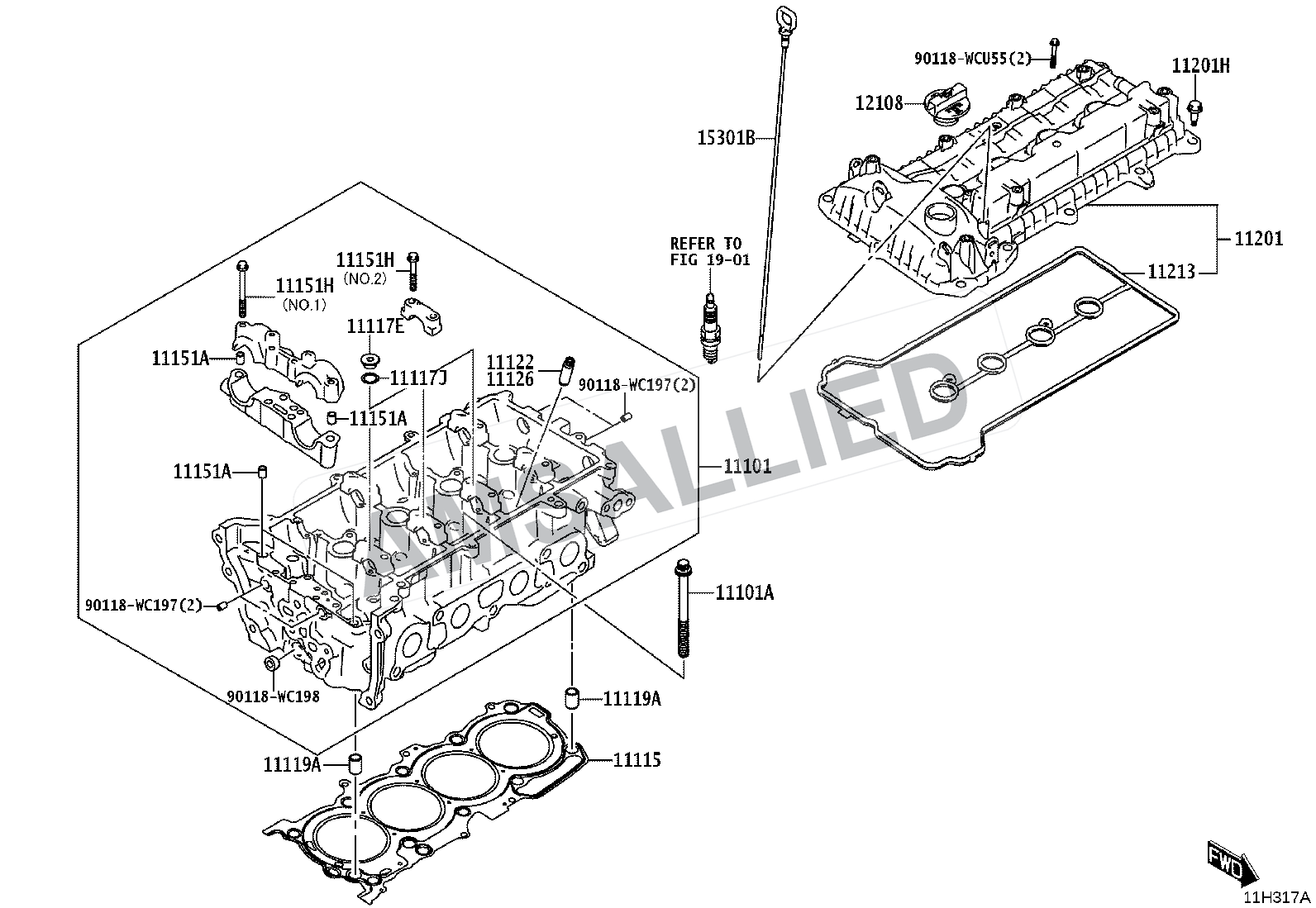

Figure 1104 · Cylinder Head
20 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
20 partsHead Sub-assy, Cylinder
PNC 11101
Gasket, Cylinder Head
PNC 11115
Bush, Intake Valve Guide
PNC 11122, 11126
Cover Sub-assy, Cylinder Head
PNC 11201
Gasket, Cylinder Head Cover
PNC 11213
Cap Sub-assy, Oil Filler
PNC 12108
Gage Sub-assy, Oil Level
PNC 15301B
Pin, Straight, No.1
PNC 11119A
Pin, Ring(for Camshaft Bearing Cap Setting)
PNC 11151A
Plug, W/head Straight Screw, No.1
PNC 11117E
Bolt(for Cylinder Head Cover)
PNC 11201H
Sensor, Camshaft Position
PNC 11102A
Gasket(for Cylinder Head Screw Plug)
PNC 11117J
Bolt(for Cylinder Head Set)
PNC 11101A
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Diagram Hardware / Fastener
PNC 90118WC197
Diagram Hardware / Fastener
PNC 90118WCU55
Diagram Hardware / Fastener
PNC 90118WC198
