Duct, Heater To Register, Center
PNC 55835A
Electrical

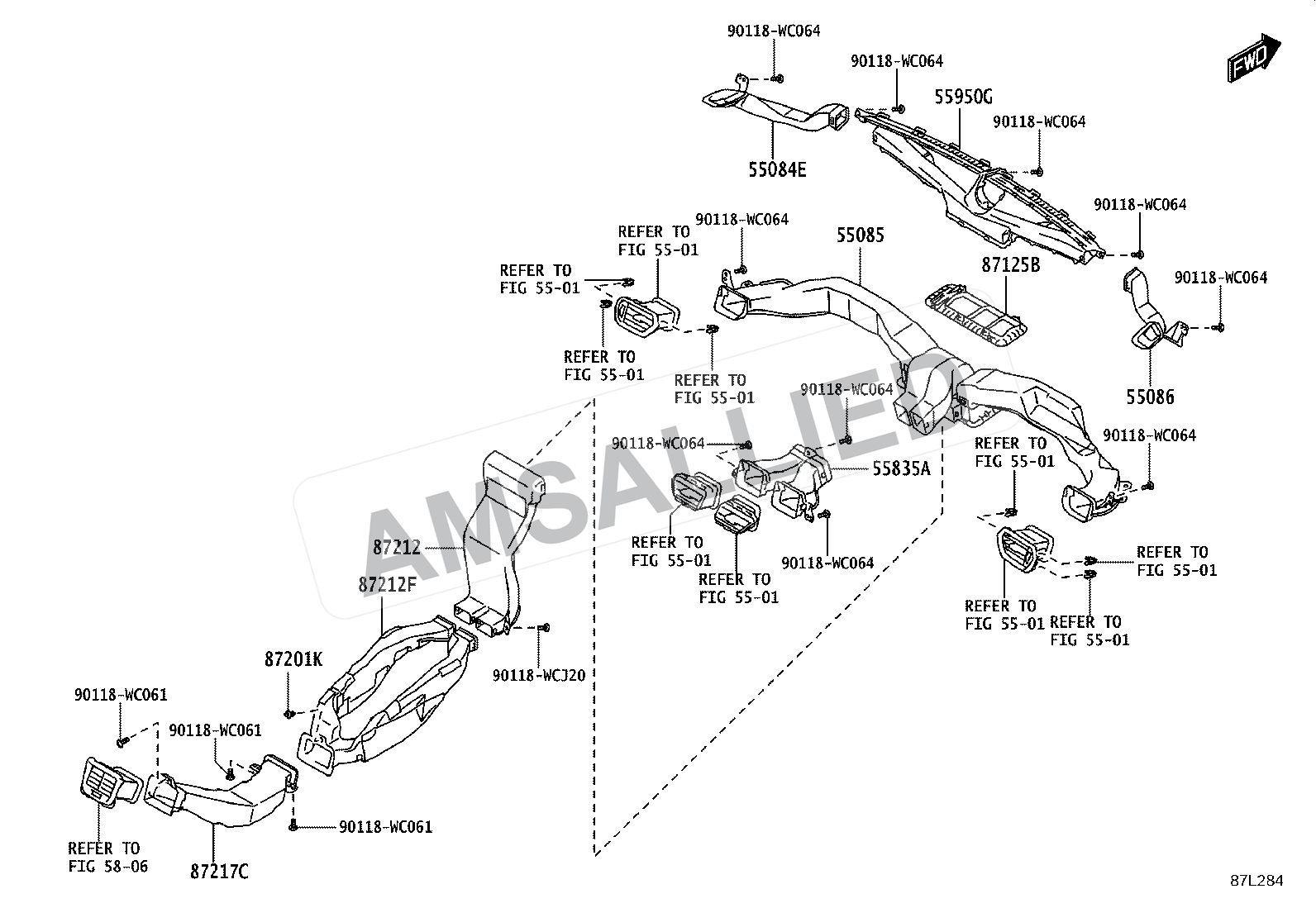

Figure 8715 · Heating & Air Conditioning - Control & Air Duct
19 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
19 partsDuct Sub-assy, Heater To Register, No.2
PNC 55085
Control Assy, Air Conditioner
PNC 55900
Nozzle Assy, Defroster
PNC 55950G
Duct Sub-assy, Heater To Register, No.3
PNC 55086
Duct Sub-assy, Heater To Register, No.1
PNC 55084E
Duct, Air, Rear No.1
PNC 87212
Duct, Air, Rear No.2
PNC 87212F
Grille, Heater Air Outlet
PNC 87125B
Duct, Air, No.1
PNC 87211
Duct, Air, No.2
PNC 87211A
Duct, Air, Rear No.5
PNC 87217C
Duct Sub-assy,air Conditioner
PNC 88505
Thermistor Assy
PNC 88790B
Thermistor, Cooler (solar Sensor)
PNC 88625H
Clip (for Air Duct)
PNC 87201K
Diagram Hardware / Fastener
PNC 90118WC061
Diagram Hardware / Fastener
PNC 90118WC064
Diagram Hardware / Fastener
PNC 90118WCJ20
