Electrical

Figure 8202 · Wiring & Clamp

152 genuine catalog part numbers · Production from 2024-01

Open interactive figure

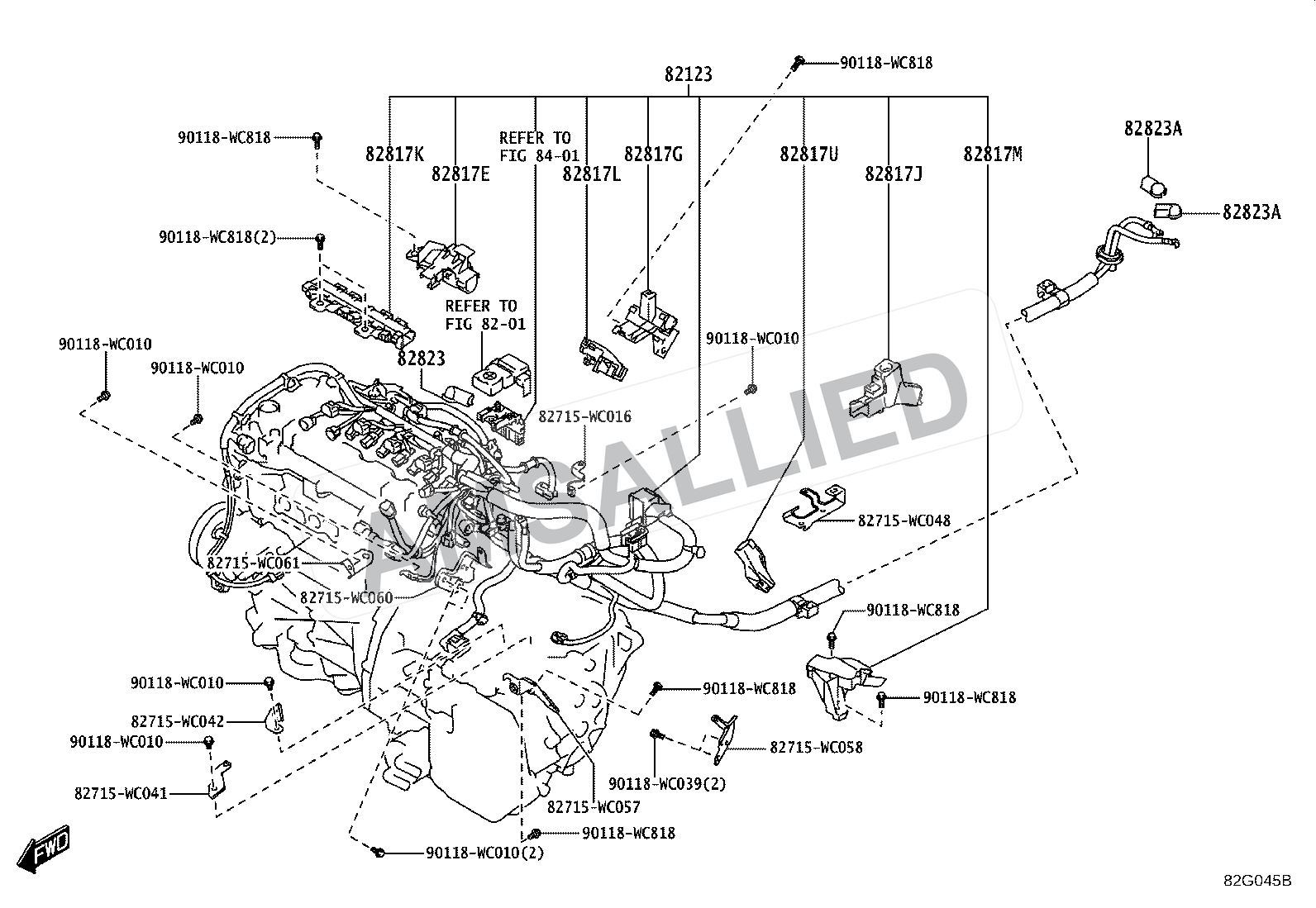

Toyota Hyryder Wiring & Clamp exploded parts diagram, figure 8202 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

152 parts

67923-WC003

Protector, Wiring Harness, No.14

PNC 82817P, 82817T

82050-WC001

Wire Assy, Engine

PNC 82050

82111-WC072

Wire, Engine Room Main

PNC 82111

82111-WC073

Wire, Engine Room Main

PNC 82111

82111-WC074

Wire, Engine Room Main

PNC 82111

82111-WC075

Wire, Engine Room Main

PNC 82111

82111-WC076

Wire, Engine Room Main

PNC 82111

82111-WC077

Wire, Engine Room Main

PNC 82111

82111-WC078

Wire, Engine Room Main

PNC 82111

82111-WC079

Wire, Engine Room Main

PNC 82111

82111-WC080

Wire, Engine Room Main

PNC 82111

82111-WC142

Wire, Engine Room Main

PNC 82111

82111-WC143

Wire, Engine Room Main

PNC 82111

82111-WC144

Wire, Engine Room Main

PNC 82111

82111-WC186

Wire, Engine Room Main

PNC 82111

82111-WC187

Wire, Engine Room Main

PNC 82111

82111-WC188

Wire, Engine Room Main

PNC 82111

82111-WC189

Wire, Engine Room Main

PNC 82111

82111-WC190

Wire, Engine Room Main

PNC 82111

82111-WC191

Wire, Engine Room Main

PNC 82111

82111-WC192

Wire, Engine Room Main

PNC 82111

82111-WC193

Wire, Engine Room Main

PNC 82111

82111-WC194

Wire, Engine Room Main

PNC 82111

82111-WC195

Wire, Engine Room Main

PNC 82111

82121-WC006

Wire, Engine

PNC 82121

82121-WC007

Wire, Engine

PNC 82121

82123-WC031

Cable, Main Battery, No.2

PNC G9242E

82123-WC032

Cable, Main Battery, No.2

PNC G9242E

82123-WC033

Cable, Main Battery, No.1

PNC G9242D

82123-WC034

Cable, Main Battery, No.1

PNC G9242D

82123-WC035

Cable, Main Battery, No.1

PNC G9242D

82123-WC036

Wire, Engine Room, No.2

PNC 82112

82123-WC037

Wire, Engine, No.3

PNC 82123

82123-WC038

Wire, Engine, No.3

PNC 82123

82123-WC039

Wire, Engine, No.3

PNC 82123

82123-WC040

Wire, Engine, No.3

PNC 82123

82123-WC041

Wire, Engine, No.3

PNC 82123

82123-WC060

Wire, Engine Room, No.2

PNC 82112

82140-WC002

Wire, Instrument Panel, No.2

PNC 82142

82141-WC037

Wire, Instrument Panel

PNC 82141

82141-WC038

Wire, Instrument Panel

PNC 82141

82141-WC039

Wire, Instrument Panel

PNC 82141

82141-WC040

Wire, Instrument Panel

PNC 82141

82141-WC041

Wire, Instrument Panel

PNC 82141

82141-WC042

Wire, Instrument Panel

PNC 82141

82141-WC043

Wire, Instrument Panel

PNC 82141

82141-WC044

Wire, Instrument Panel

PNC 82141

82141-WC045

Wire, Instrument Panel

PNC 82141

82141-WC112

Wire, Instrument Panel

PNC 82141

82141-WC113

Wire, Instrument Panel

PNC 82141

82141-WC114

Wire, Instrument Panel

PNC 82141

82141-WC115

Wire, Instrument Panel

PNC 82141

82141-WC116

Wire, Instrument Panel

PNC 82141

82141-WC117

Wire, Instrument Panel

PNC 82141

82141-WC118

Wire, Instrument Panel

PNC 82141

82151-WC030

Wire, Front Door, Rh

PNC 82151

82151-WC031

Wire, Front Door, Rh

PNC 82151

82151-WC032

Wire, Front Door, Lh

PNC 82152

82151-WC037

Wire, Front Door, Rh

PNC 82151

82151-WC038

Wire, Front Door, Rh

PNC 82151

82152-WC030

Wire, Front Door, Lh

PNC 82152

82152-WC031

Wire, Front Door, Lh

PNC 82152

82152-WC032

Wire, Front Door, Rh

PNC 82151

82152-WC037

Wire, Front Door, Lh

PNC 82152

82152-WC038

Wire, Front Door, Lh

PNC 82152

82153-WC013

Wire, Rear Door, Lh

PNC 82154A

82153-WC014

Wire, Rear Door, Lh

PNC 82154A

82153-WC015

Wire, Rear Door, Lh

PNC 82154A

82153-WC016

Wire, Rear Door, Lh

PNC 82154A

82161-WC062

Wire, Floor

PNC 82161

82161-WC092

Wire, Floor

PNC 82161

82161-WC096

Wire, Floor

PNC 82161

82161-WC097

Wire, Floor

PNC 82161

82161-WC098

Wire, Floor

PNC 82161

82161-WC100

Wire, Floor

PNC 82161

82161-WC105

Wire, Floor

PNC 82161

82161-WC106

Wire, Floor

PNC 82161

82161-WC109

Wire, Floor

PNC 82161

82161-WC165

Wire, Floor

PNC 82161

82161-WC166

Wire, Floor

PNC 82161

82161-WC167

Wire, Floor

PNC 82161

82161-WC168

Wire, Floor

PNC 82161

82161-WC169

Wire, Floor

PNC 82161

82161-WC170

Wire, Floor

PNC 82161

82161-WC171

Wire, Floor

PNC 82161

82161-WC172

Wire, Floor

PNC 82161

82161-WC173

Wire, Floor

PNC 82161

82161-WC174

Wire, Floor

PNC 82161

82161-WC175

Wire, Floor

PNC 82161

82169-WC005

Wire, Fuel Pump

PNC 82415

82169-WC006

Wire, Fuel Pump

PNC 82415

82171-WC020

Wire, Roof, No.1

PNC 82171

82171-WC021

Wire, Roof, No.1

PNC 82171

82171-WC022

Wire, Roof, No.1

PNC 82171

82171-WC023

Wire, Roof, No.1

PNC 82171

82171-WC024

Wire, Roof, No.2

PNC 82172

82183-WC004

Wire, Rear Bumper

PNC 82183A

82184-WC017

Wire, Back Door, No.1

PNC 82184

82184-WC018

Wire, Back Door, No.1

PNC 82184

82184-WC019

Wire, Back Door, No.1

PNC 82184

82184-WC020

Wire, Back Door, No.1

PNC 82184

82191-WC001

Wire, Front Seat, Rh

PNC 82191

82191-WC003

Wire, Front Seat, Rh

PNC 82191

82192-WC001

Wire, Front Seat, Lh

PNC 82192

821H1-WC001

Wire, Floor Under, No.3

PNC 821H1A

821H1-WC002

Wire, Floor Under

PNC 821H1

821H1-WC005

Wire, Floor Under

PNC 821H1

82223-WC001

Wire, Switch

PNC 82223

82350-WC002

Wire, Lamp

PNC 82214A

82817-WC019

Protector, Wiring Harness, No.10

PNC 82817K

82817-WC024

Protector, Wiring Harness, No.6

PNC 82817E

82817-WC025

Protector, Wiring Harness, No.11

PNC 82817L

82817-WC026

Protector, Wiring Harness, No.13

PNC 82817N

82817-WC027

Protector, Wiring Harness, No.9

PNC 82817J

82817-WC028

Protector, Wiring Harness, No.12

PNC 82817M

82817-WC029

Protector, Wiring Harness, No.7

PNC 82817F

82817-WC030

Protector, Wiring Harness, No.8

PNC 82817G

82817-WC031

Protector, Wiring Harness, No.9

PNC 82817J

82817-WC032

Protector, Wiring Harness, No.11

PNC 82817L

82817-WC033

Protector, Wiring Harness, No.2

PNC 82817A

82817-WC034

Protector, Wiring Harness, No.3

PNC 82817B

82817-WC035

Protector, Wiring Harness, No.4

PNC 82817C

82817-WC036

Protector, Wiring Harness, No.5

PNC 82817D

82817-WC037

Protector, Wiring Harness, No.6

PNC 82817E

82817-WC038

Protector, Wiring Harness, No.16

PNC 82817U

82823-WC001

Cap, Terminal, No.1

PNC 82823

82823-WC002

Cap, Terminal, No.2

PNC 82823A

90118-WC818

Diagram Hardware / Fastener

PNC 90118WC818

90118-WC010

Diagram Hardware / Fastener

PNC 90118WC010

82715-WC061

Diagram Hardware / Fastener

PNC 82715WC061

82715-WC060

Diagram Hardware / Fastener

PNC 82715WC060

82715-WC057

Diagram Hardware / Fastener

PNC 82715WC057

82715-WC042

Diagram Hardware / Fastener

PNC 82715WC042

82715-WC041

Diagram Hardware / Fastener

PNC 82715WC041

82715-WC048

Diagram Hardware / Fastener

PNC 82715WC048

90118-WC039

Diagram Hardware / Fastener

PNC 90118WC039

82715-WC058

Diagram Hardware / Fastener

PNC 82715WC058

82715-WC016

Diagram Hardware / Fastener

PNC 82715WC016

90118-WC113

Diagram Hardware / Fastener

PNC 90118WC113

82715-WC019

Diagram Hardware / Fastener

PNC 82715WC019

82715-WC059

Diagram Hardware / Fastener

PNC 82715WC059

90118-WC050

Diagram Hardware / Fastener

PNC 90118WC050

90118-WC020

Diagram Hardware / Fastener

PNC 90118WC020

90118-WC016

Diagram Hardware / Fastener

PNC 90118WC016

82715-WC053

Diagram Hardware / Fastener

PNC 82715WC053

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015

82715-WC054

Diagram Hardware / Fastener

PNC 82715WC054

82715-WC050

Diagram Hardware / Fastener

PNC 82715WC050

82715-WC049

Diagram Hardware / Fastener

PNC 82715WC049

90118-WC021

Diagram Hardware / Fastener

PNC 90118WC021

82715-WC051

Diagram Hardware / Fastener

PNC 82715WC051

82715-WC052

Diagram Hardware / Fastener

PNC 82715WC052
