Electrical

Figure 8111 · Rear Combination Lamp

18 genuine catalog part numbers · Production from 2024-01

Open interactive figure

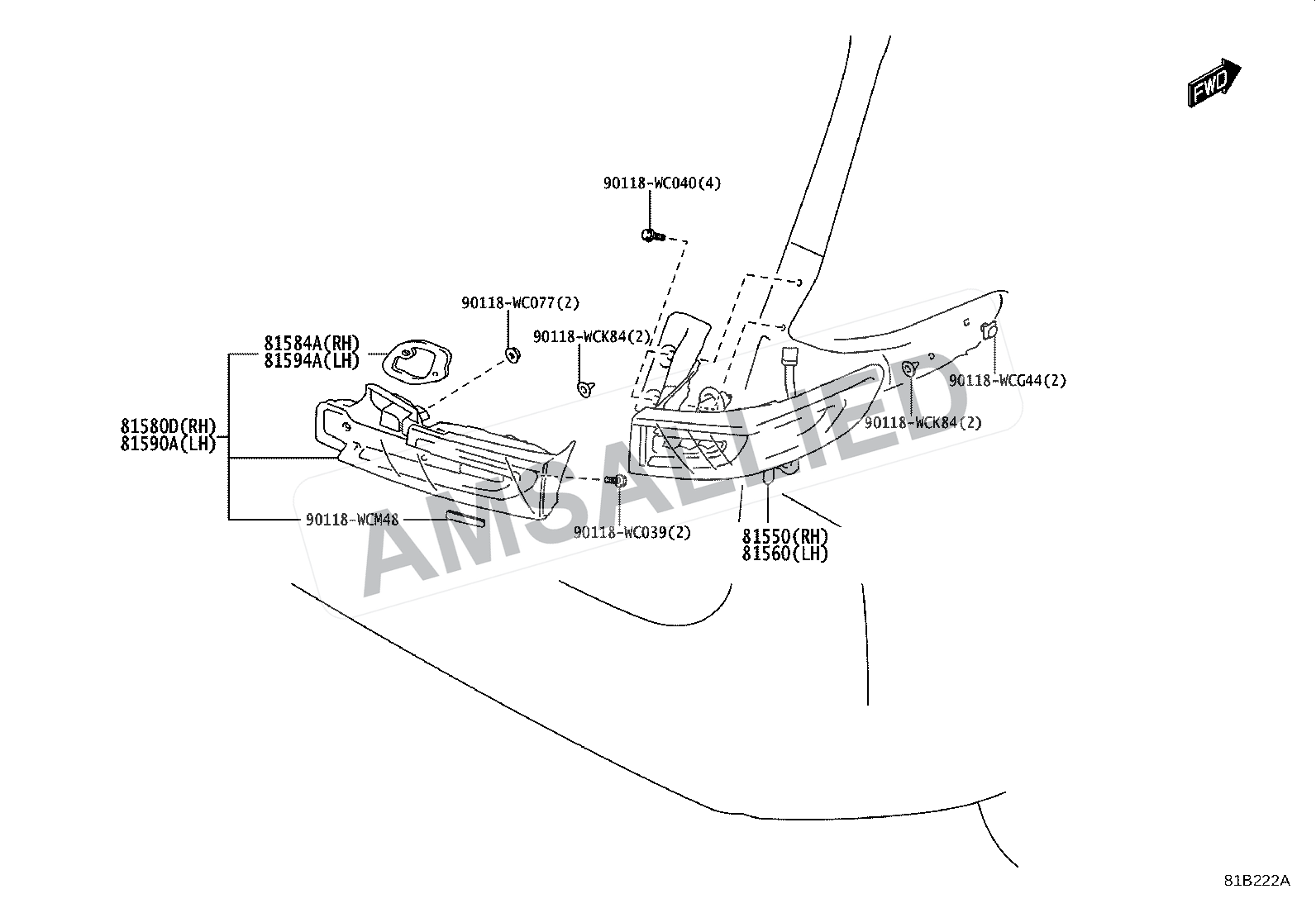

Toyota Hyryder Rear Combination Lamp exploded parts diagram, figure 8111
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

18 parts
81551-WC008

Lens & Body, Rear Combination Lamp, Rh

PNC 81551D

81555-WC002

Socket & Wire, Rear Combination Lamp

PNC 81555H

81560-WC001

Lens & Body, Rear Combination Lamp, Lh

PNC 81561D
