Body

Figure 7503 · Side Moulding

25 genuine catalog part numbers · Production from 2024-01

Open interactive figure

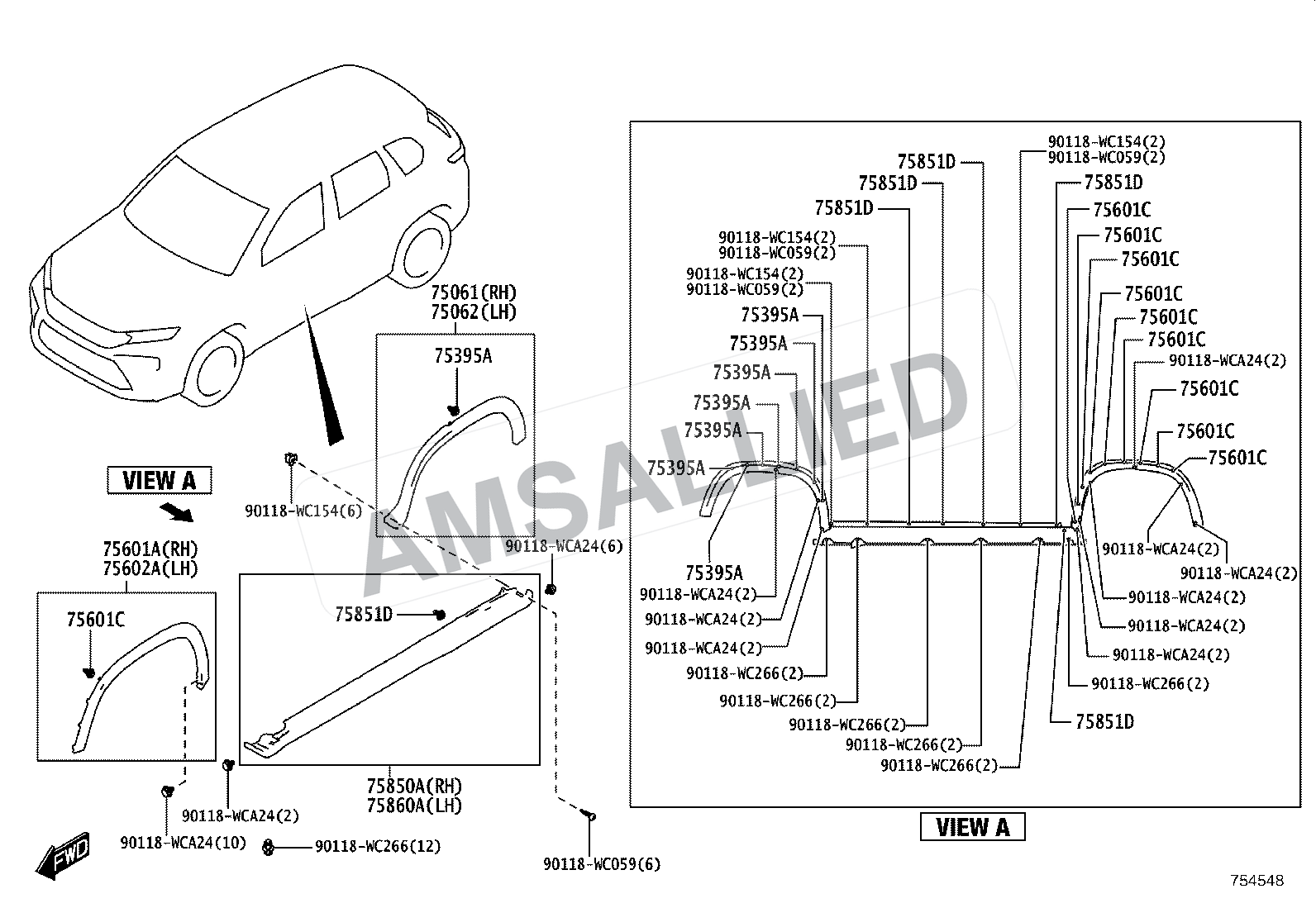

Toyota Hyryder Side Moulding exploded parts diagram, figure 7503
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

25 parts
60117-WC005

Cover Sub-assy, Front Pillar, Upr Rh

PNC 60117

60118-WC004

Cover Sub-assy, Front Pillar, Upr Lh

PNC 60118

75505-WC003

Garnish Sub-assy, Roof Side, Front Rh

PNC 75505

75505-WC004

Garnish Sub-assy, Roof Side, Front Rh

PNC 75505

75506-WC003

Garnish Sub-assy, Roof Side, Front Lh

PNC 75506

75506-WC004

Garnish Sub-assy, Roof Side, Front Lh

PNC 75506

75555-WC004

Moulding, Roof Drip Side Finish, Rh

PNC 75551

75556-WC004

Moulding, Roof Drip Side Finish, Lh

PNC 75552

75561-WC002

Clip, Roof Drip Side Finish Moulding, No.1

PNC 75561

75601-WC003

Moulding Sub-assy, Front Fender, Rh

PNC 75601A

75602-WC003

Moulding Sub-assy, Front Fender, Lh

PNC 75602A

75850-WC003

Moulding Assy, Body Rocker Panel, Rh

PNC 75850A

75860-WC002

Moulding Assy, Body Rocker Panel, Lh

PNC 75860A

90118-WCR64

Clip(for Rocker Panel Moulding Set)

PNC 75851D
