Body

Figure 7104 · Seat Belt & Child Restraint Seat

21 genuine catalog part numbers · Production from 2024-01

Open interactive figure

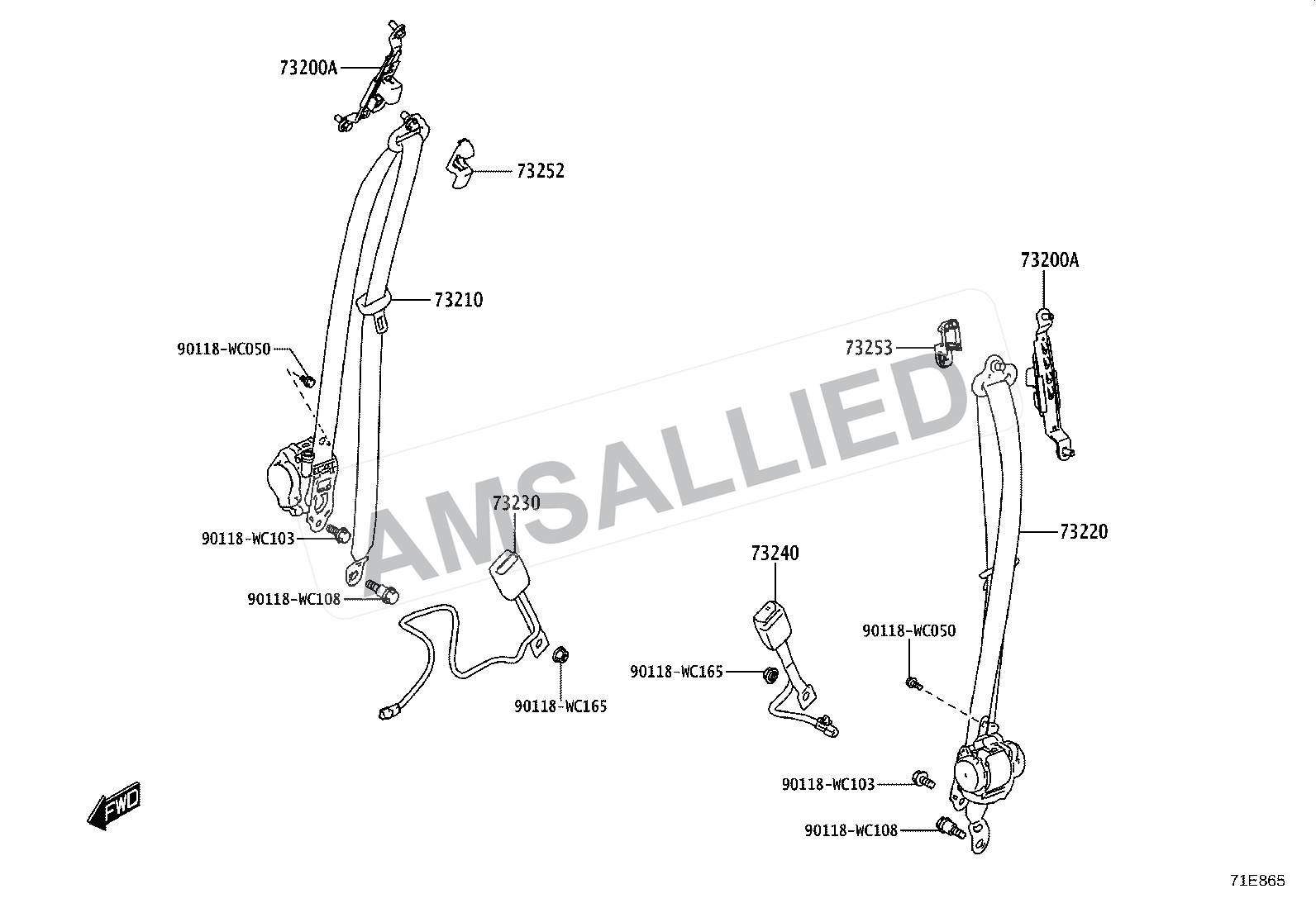

Toyota Hyryder Seat Belt & Child Restraint Seat exploded parts diagram, figure 7104
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

21 parts
66413-WC005

Cover, Rear Center Seat Belt, No.1

PNC 66413F

66423-WC005

Cover, Rear Center Seat Belt, No.2

PNC 66423E

73023-WC001

Cover, Shoulder Belt Anchor Adjust, Rh

PNC 73252, 73253

73200-WC002

Adjuster Assy, Front Shoulder Belt Anchor

PNC 73200A

73360-WC020

Belt Assy, Rear Seat 3 Point Type, Outer Rh

PNC 73360

73370-WC011

Belt Assy, Rear Seat 3 Point Type, Outer Lh

PNC 73370

73380-WC005

Belt Assy, Rear Seat, Outer Center

PNC 73350C

73470-WC007

Belt Assy, Rear Seat Inner W/center, Rh

PNC 73470B
