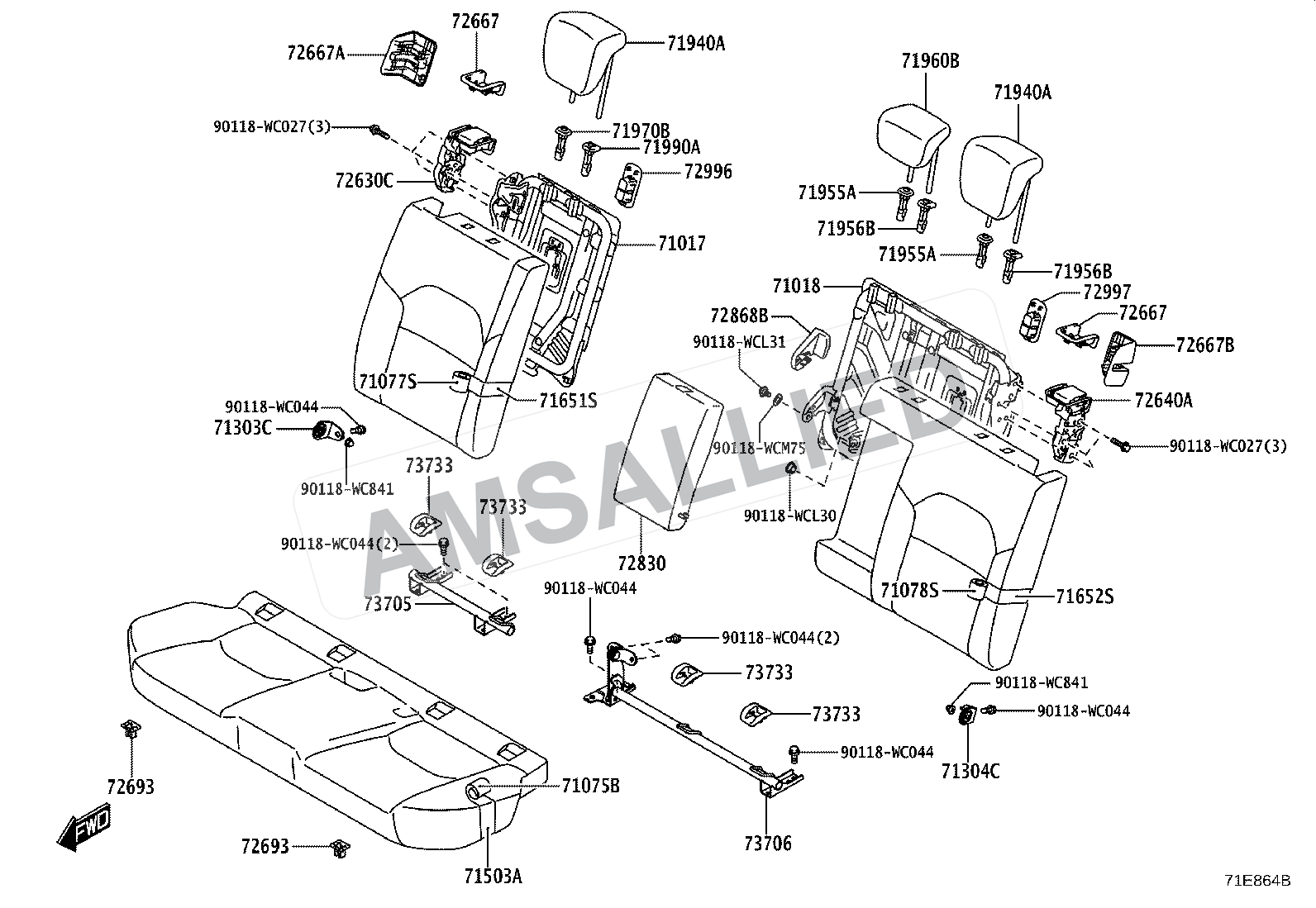

Figure 7102 · Rear Seat & Seat Track

71017-WC009

Frame Sub-assy, Rear Seatback, Rh

PNC 71017

71018-WC007

Frame Sub-assy, Rear Seatback, Lh

PNC 71018

71075-WC014

Cover, Rear Seat Cushion (for Bench Type)

PNC 71075B

71075-WC015

Cover, Rear Seat Cushion (for Bench Type)

PNC 71075B

71075-WC016

Cover, Rear Seat Cushion (for Bench Type)

PNC 71075B

71075-WC023

Cover, Rear Seat Cushion (for Bench Type)

PNC 71075B

71077-WC015

Cover, Rear Seatback, Rh (for Separate Type)

PNC 71077S

71077-WC016

Cover, Rear Seatback, Rh (for Separate Type)

PNC 71077S

71077-WC025

Cover, Rear Seatback, Rh (for Separate Type)

PNC 71077S

71077-WC026

Cover, Rear Seatback, Rh (for Separate Type)

PNC 71077S

71078-WC010

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC011

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC020

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC021

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC027

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC028

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC029

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71078-WC030

Cover, Rear Seatback, Lh(for Separate Type)

PNC 71078S

71301-WC002

Hinge Sub-assy, Rear Seatback, Rh

PNC 71303C

71302-WC001

Hinge Sub-assy, Rear Seatback, Lh

PNC 71304C

71305-WC004

Bracket Sub-assy, Child Restraint Seat Anchor, Lh

PNC 73706

71305-WC005

Bracket Sub-assy, Child Restraint Seat Anchor, Lh

PNC 73706

71503-WC012

Pad Sub-assy, Rear Seat Cushion

PNC 71503A

71503-WC013

Pad Sub-assy, Rear Seat Cushion

PNC 71503A

71651-WC010

Pad, Rear Seatback, Rh(for Separate Type)

PNC 71651S

71652-WC007

Pad, Rear Seatback, Lh(for Separate Type)

PNC 71652S

71910-WC025

Headrest Assy, Rear Seat

PNC 71940A

71910-WC026

Headrest Assy, Rear Seat

PNC 71940A

71910-WC027

Headrest Assy, Rear Seat, Center

PNC 71960B

71910-WC028

Headrest Assy, Rear Seat, Center

PNC 71960B

71910-WC033

Headrest Assy, Rear Seat

PNC 71940A

71910-WC034

Headrest Assy, Rear Seat

PNC 71940A

71910-WC036

Headrest Assy, Rear Seat, Center

PNC 71960B

71910-WC037

Headrest Assy, Rear Seat, Center

PNC 71960B

71930-WC006

Support, Rear Seat Headrest

PNC 71956B, 71990A

71931-WC006

Support, Rear Seat Headrest

PNC 71955A, 71970B

72630-WC004

Lock Assy, Rear Seatback, Rh

PNC 72630C

72640-WC004

Lock Assy, Rear Seatback, Lh

PNC 72640A

72667-WC005

Bezel, Rear Seatback Lock, Upper

PNC 72667

72667-WC006

Bezel, Rear Seatback Lock, Upper Rh

PNC 72667A

72679-WC001

Bezel, Rear Seatback Lock, Upper Lh

PNC 72667B

72693-WC004

Hook, Rear Seat Cushion Lock

PNC 72693

72830-WC006

Armrest Assy, Rear Seat, Center

PNC 72830

72830-WC007

Armrest Assy, Rear Seat, Center

PNC 72830

72830-WC008

Armrest Assy, Rear Seat, Center

PNC 72830

72830-WC011

Armrest Assy, Rear Seat, Center

PNC 72830

72830-WC012

Armrest Assy, Rear Seat, Center

PNC 72830

72868-WC003

Cover, Center Armrest Hinge

PNC 72868B

72996-WC004

Cover, Rear Seatback, Rh

PNC 72996, 72997

73717-WC003

Cover, Rear Seatback, Rh

PNC 72996, 72997

73719-WC001

Bracket Sub-assy, Child Restraint Seat Anchor, Rh

PNC 73705

73719-WC002

Bracket Sub-assy, Child Restraint Seat Anchor, Rh

PNC 73705

73733-WC001

Cover, Child Restraint Seat Base

PNC 73733

90118-WC027

Diagram Hardware / Fastener

PNC 90118WC027

90118-WC044

Diagram Hardware / Fastener

PNC 90118WC044

90118-WC841

Diagram Hardware / Fastener

PNC 90118WC841

90118-WCL30

Diagram Hardware / Fastener

PNC 90118WCL30

90118-WCM75

Diagram Hardware / Fastener

PNC 90118WCM75

90118-WCL31

Diagram Hardware / Fastener

PNC 90118WCL31
