Figure 6709 · Back Door Lock & Handle

21 genuine catalog part numbers · Production from 2024-01

Open interactive figure

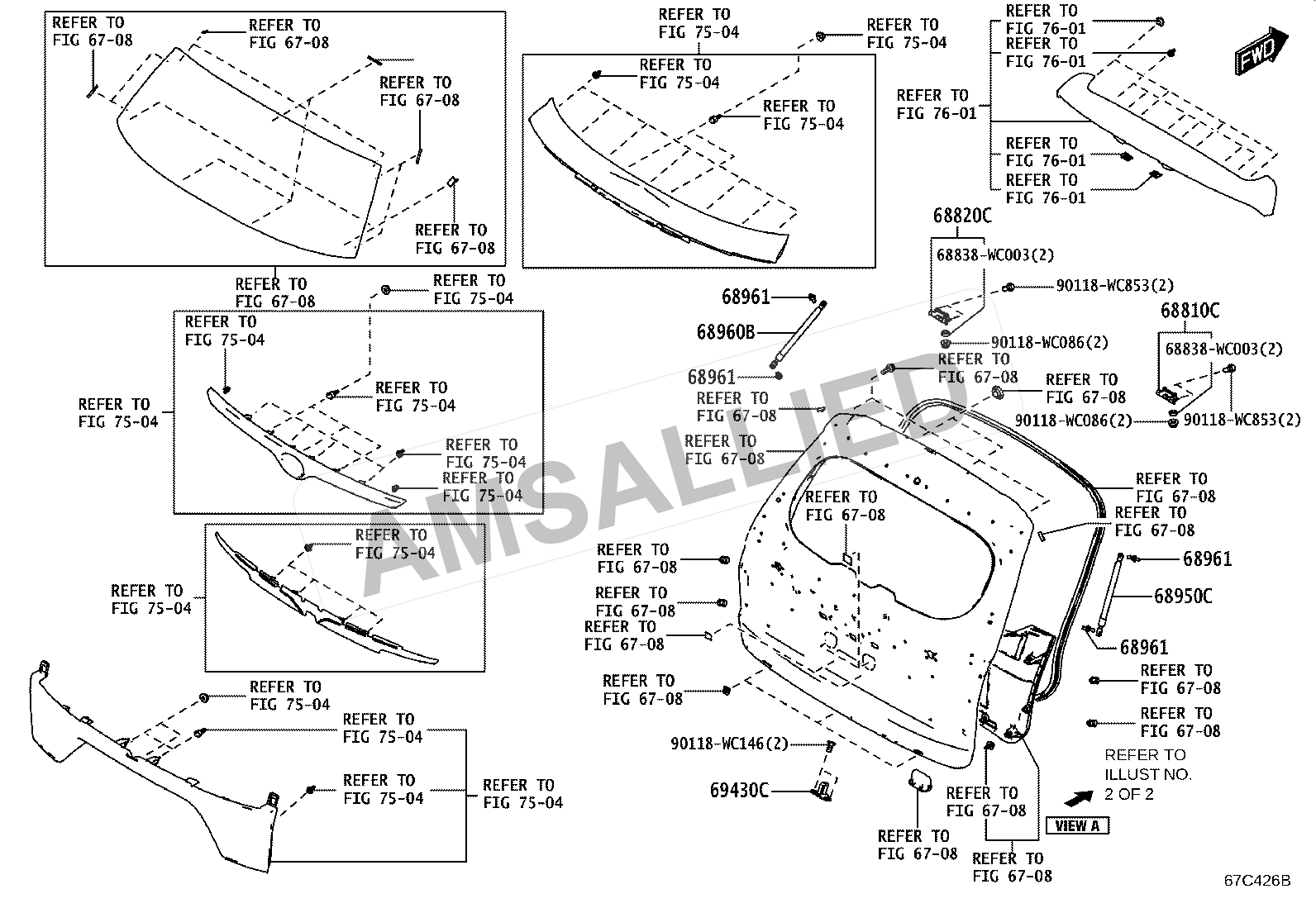

Toyota Hyryder Back Door Lock & Handle exploded parts diagram, figure 6709 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

21 parts

68801-WC004

Hinge Assy, Back Door, Rh

PNC 68810C, 68820C

68950-WC005

Stay Assy, Back Door, Rh

PNC 68950C

68960-WC004

Stay Assy, Back Door, Lh

PNC 68960B

68961-WC003

Bolt, Back Door Stay

PNC 68961

69430-WC004

Striker Assy, Back Door Lock

PNC 69430C

74811-WC008

Handle, Door Pull

PNC 74811G

74811-WC009

Handle, Door Pull

PNC 74811G

74811-WC010

Handle, Door Pull

PNC 74811G

74811-WC011

Handle, Door Pull

PNC 74811G

74811-WC013

Handle, Door Pull

PNC 74811G

74811-WC015

Handle, Door Pull

PNC 74811G

74811-WC018

Handle, Door Pull

PNC 74811G

84804-WC008

Lock Assy, Back Door

PNC 69350

90118-WC146

Diagram Hardware / Fastener

PNC 90118WC146

90118-WC853

Diagram Hardware / Fastener

PNC 90118WC853

90118-WC086

Diagram Hardware / Fastener

PNC 90118WC086

68838-WC003

Diagram Hardware / Fastener

PNC 68838WC003

90118-WC051

Diagram Hardware / Fastener

PNC 90118WC051

90118-WC594

Diagram Hardware / Fastener

PNC 90118WC594

90118-WCE78

Diagram Hardware / Fastener

PNC 90118WCE78

90118-WC077

Diagram Hardware / Fastener

PNC 90118WC077
