Spacer, Back Window Glass
PNC 67818B
Body

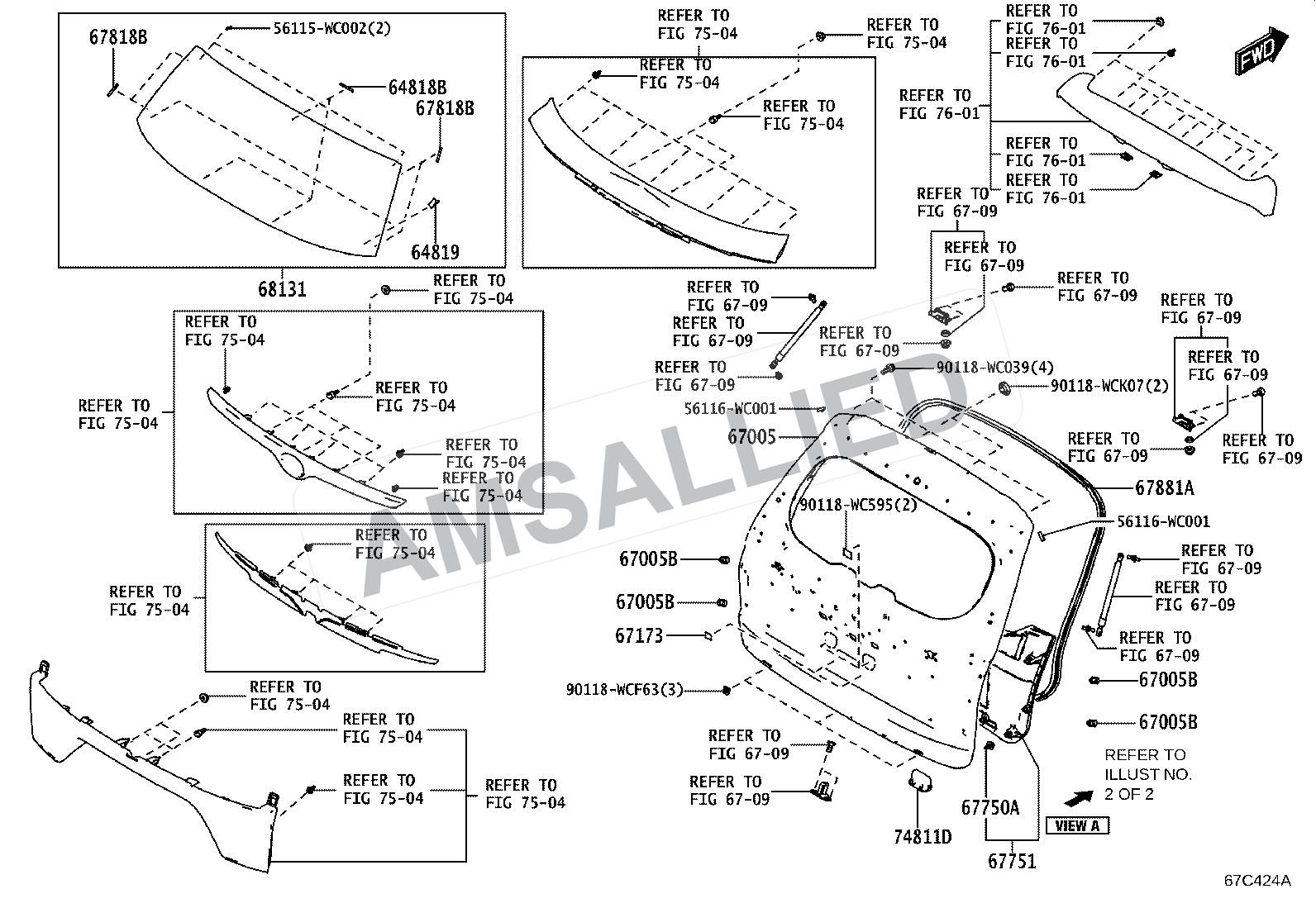

Figure 6708 · Back Door Panel & Glass
19 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
19 partsSpacer, Back Door Glass, No.1
PNC 64818B
Spacer, Back Window Glass, No.2
PNC 64819
Panel Sub-assy, Back Door
PNC 67005
Panel Sub-assy, Back Door
PNC 67005
Board, Back Door Trim
PNC 67751
Weatherstrip, Back Door
PNC 67881A
Glass, Back Door
PNC 68131
Glass, Back Door
PNC 68131
Handle, Door Pull
PNC 74811D
Clip(for Back Door Trim)
PNC 67750A
Cushion, Back Door
PNC 67173
Cushion(for Back Door Panel)
PNC 67005B
Diagram Hardware / Fastener
PNC 56116WC001
Diagram Hardware / Fastener
PNC 90118WC595
Diagram Hardware / Fastener
PNC 90118WCF63
Diagram Hardware / Fastener
PNC 56115WC002
Diagram Hardware / Fastener
PNC 90118WC039
Diagram Hardware / Fastener
PNC 90118WCK07
