Figure 6706 · Rear Door Lock & Handle

29 genuine catalog part numbers · Production from 2024-01

Open interactive figure

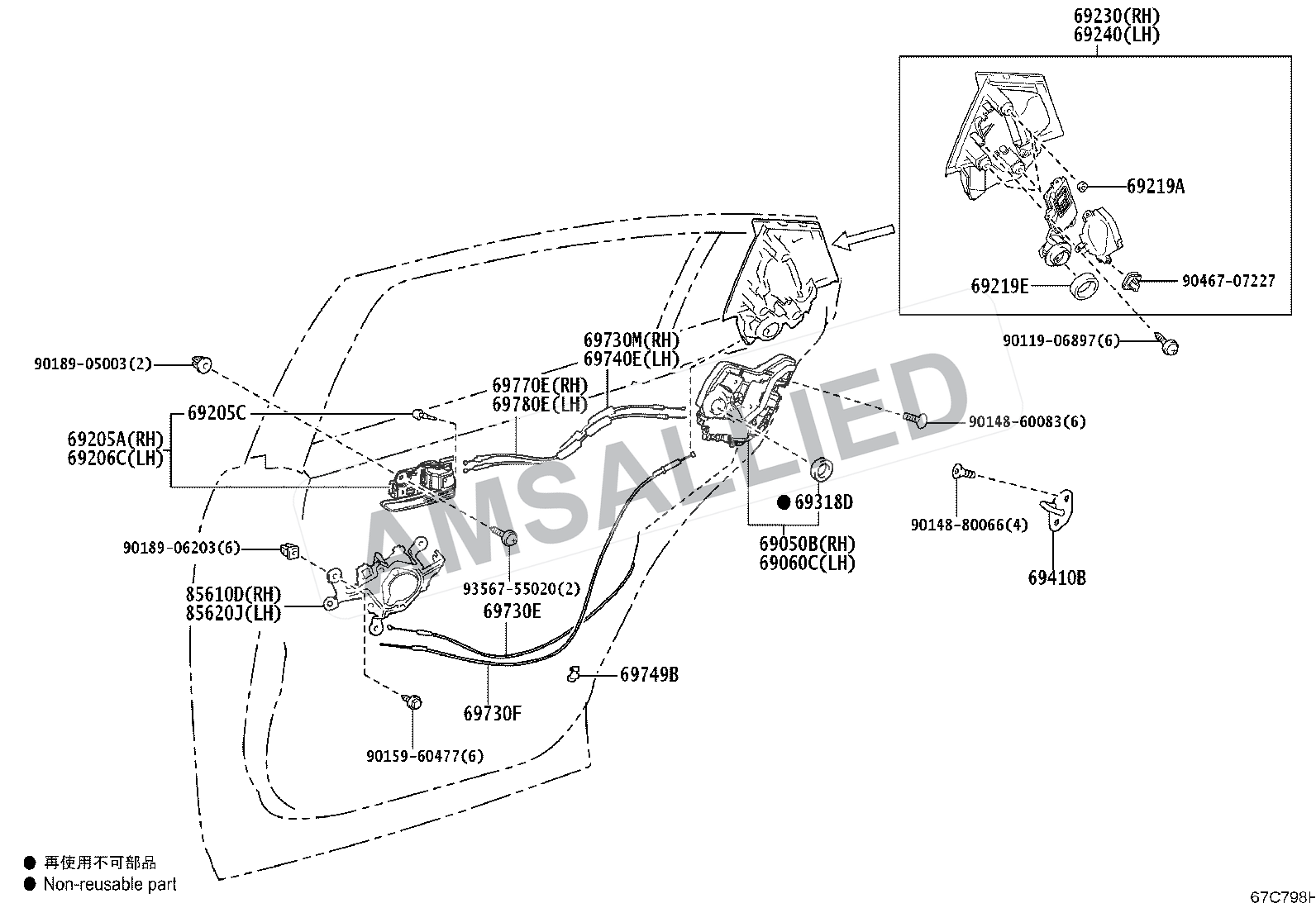

Toyota Hyryder Rear Door Lock & Handle exploded parts diagram, figure 6706
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

29 parts
69203-WC003

Frame Sub-assy, Rear Door Outside Handle, Rh

PNC 69203A

69203-WC004

Frame Sub-assy, Rear Door Outside Handle, Rh

PNC 69203A

69205-WC002

Handle Sub-assy, Rear Door Inside, Rh

PNC 69205A

69205-WC003

Handle Sub-assy, Rear Door Inside, Rh

PNC 69205A

69206-WC002

Handle Sub-assy, Rear Door Inside, Lh

PNC 69206C

69206-WC003

Handle Sub-assy, Rear Door Inside, Lh

PNC 69206C

69210-WC081

Handle Assy, Rear Door Outside, Rh

PNC 69230, 69240

69227-WC016

Cover, Rear Door Outside Handle, Rh

PNC 69227J, 69227L

69227-WC042

Cover, Rear Door Outside Handle, Rh

PNC 69227J, 69227L

69241-WC002

Pad, Rear Door Outside Handle, Front

PNC 69241G

69242-WC021

Pad, Rear Door Outside Handle, Rear

PNC 69242G

69283-WC001

Bezel, Rear Door Inside Handle, Rh

PNC 69277C

69410-WC001

Plate Assy, Rear Door Lock Striker

PNC 69410B

74811-WC004

Frame Sub-assy, Rear Door Outside Handle, Lh

PNC 69204A

74811-WC012

Frame Sub-assy, Rear Door Outside Handle, Lh

PNC 69204A

90118-WC607

Bezel, Rear Door Inside Handle, Lh

PNC 69278C
