Body

Figure 6703 · Front Door Lock & Handle

26 genuine catalog part numbers · Production from 2024-01

Open interactive figure

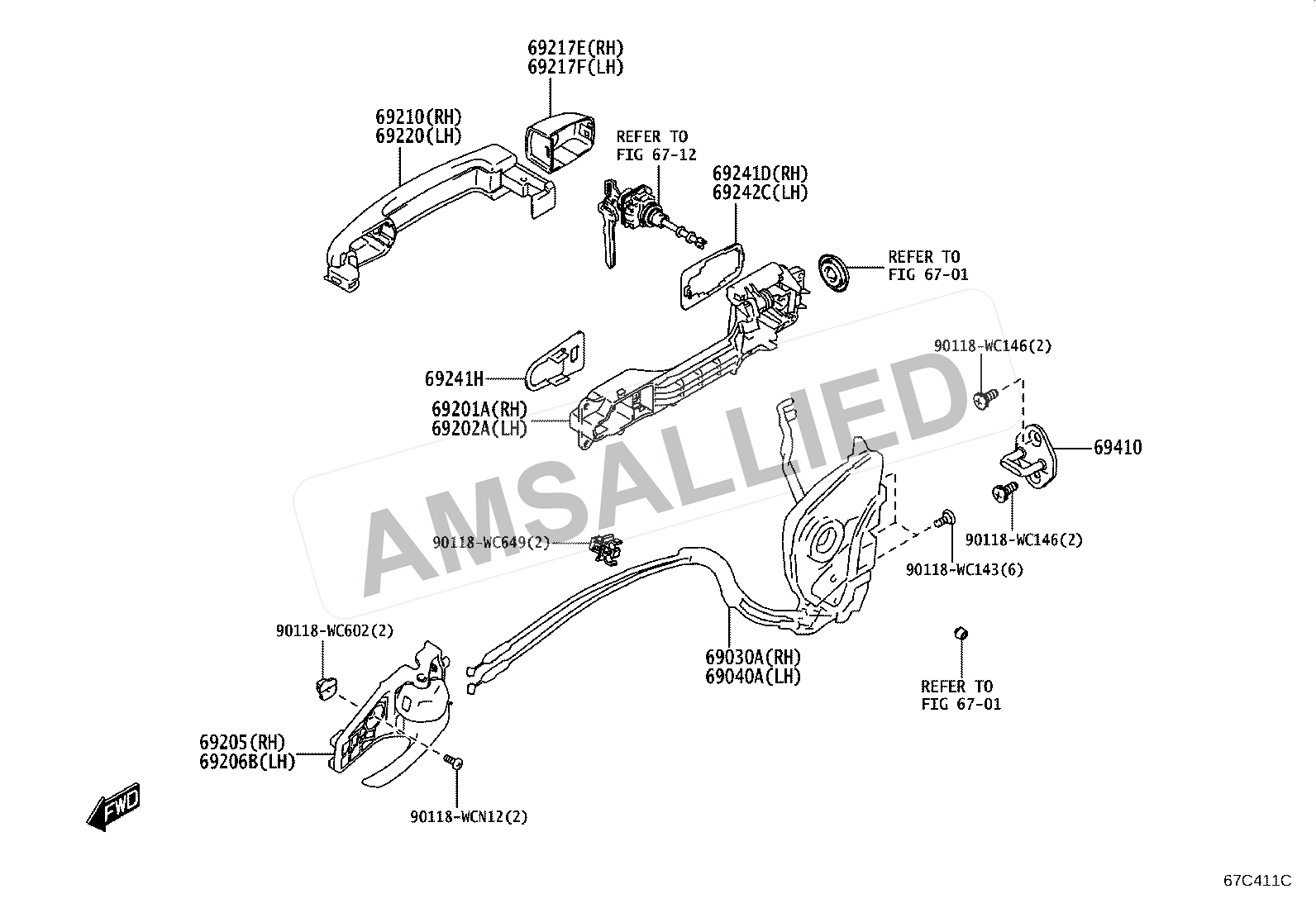

Toyota Hyryder Front Door Lock & Handle exploded parts diagram, figure 6703
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

26 parts
69201-WC003

Frame Sub-assy, Front Door Outside Handle, Rh

PNC 69201A

69202-WC003

Frame Sub-assy, Front Door Outside Handle, Lh

PNC 69202A

69205-WC002

Handle Sub-assy, Front Door Inside, Rh

PNC 69205

69205-WC003

Handle Sub-assy, Front Door Inside, Rh

PNC 69205

69206-WC002

Handle Sub-assy, Front Door Inside, Lh

PNC 69206B

69206-WC003

Handle Sub-assy, Front Door Inside, Lh

PNC 69206B

69210-WC167

Handle Assy, Front Door, Outside Rh

PNC 69210

69210-WC168

Handle Assy, Front Door, Outside Rh

PNC 69210, 69220

69227-WC038

Cover, Front Door Outside Handle, Rh

PNC 69217E

69227-WC039

Cover, Front Door Outside Handle, Lh

PNC 69217F

69227-WC040

Cover, Front Door Outside Handle, Rh

PNC 69217E

69227-WC041

Cover, Front Door Outside Handle, Lh

PNC 69217F

69241-WC002

Pad, Front Door Outside Handle, Front

PNC 69241H

69242-WC021

Pad, Front Door Outside Handle, Rh

PNC 69241D, 69242C

69283-WC001

Bezel, Front Door Inside Handle, Rh

PNC 69277B

69410-WC001

Plate Assy, Front Door Lock Striker

PNC 69410

90118-WC607

Bezel, Front Door Inside Handle, Lh

PNC 69278B
