Body

Figure 5806 · Console Box & Bracket

33 genuine catalog part numbers · Production from 2024-01

Open interactive figure

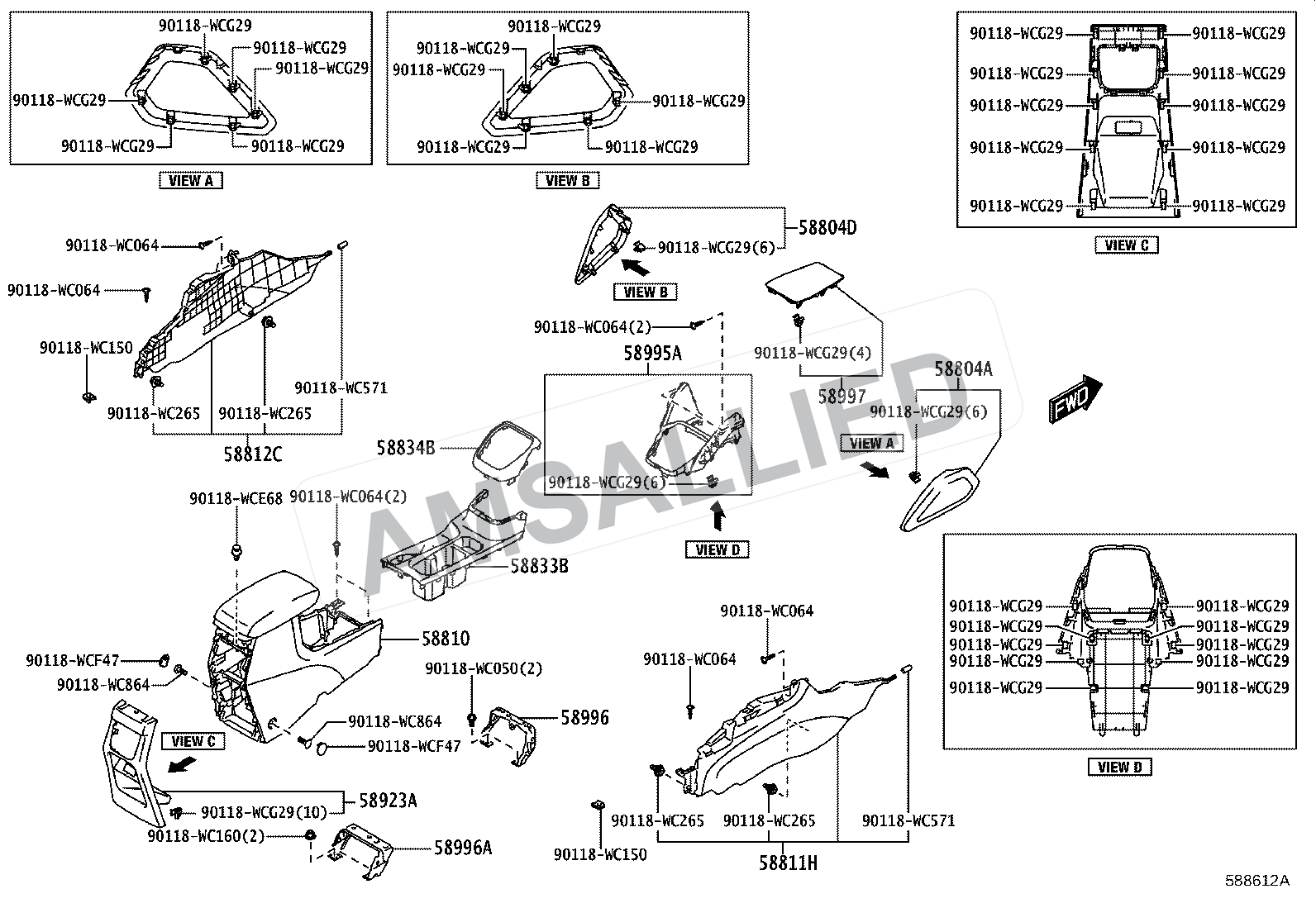

Toyota Hyryder Console Box & Bracket exploded parts diagram, figure 5806
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

33 parts
55670-WC015

Register Assy, Instrument Panel, Center

PNC 55670B

55670-WC016

Register Assy, Instrument Panel, Center

PNC 55670B

58821-WC005

Bracket, Console Box Mounting, No.1

PNC 58995A

58825-WC001

Bracket, Console Box Mounting, No.3

PNC 58997

58833-WC003

Garnish, Console Upper Panel, No.1

PNC 58833B

58833-WC004

Garnish, Console Upper Panel, No.1

PNC 58833B

58833-WC005

Garnish, Console Upper Panel, No.1

PNC 58833B

58833-WC008

Garnish, Console Upper Panel, No.1

PNC 58833B

58833-WC009

Garnish, Console Upper Panel, No.1

PNC 58833B

58834-WC005

Panel Sub-assy, Console, Upper Front

PNC 58804D

58834-WC006

Panel Sub-assy, Console, Upper Front

PNC 58804D

58834-WC009

Garnish, Console Upper Panel, No.2

PNC 58834B

58834-WC010

Garnish, Console Upper Panel, No.2

PNC 58834B

58996-WC004

Bracket, Console Box Mounting, No.1

PNC 58996

58997-WC007

Bracket, Console Box Mounting, No.2

PNC 58996A
