Seal, Hood To Cowl Top
PNC 53383B
Body

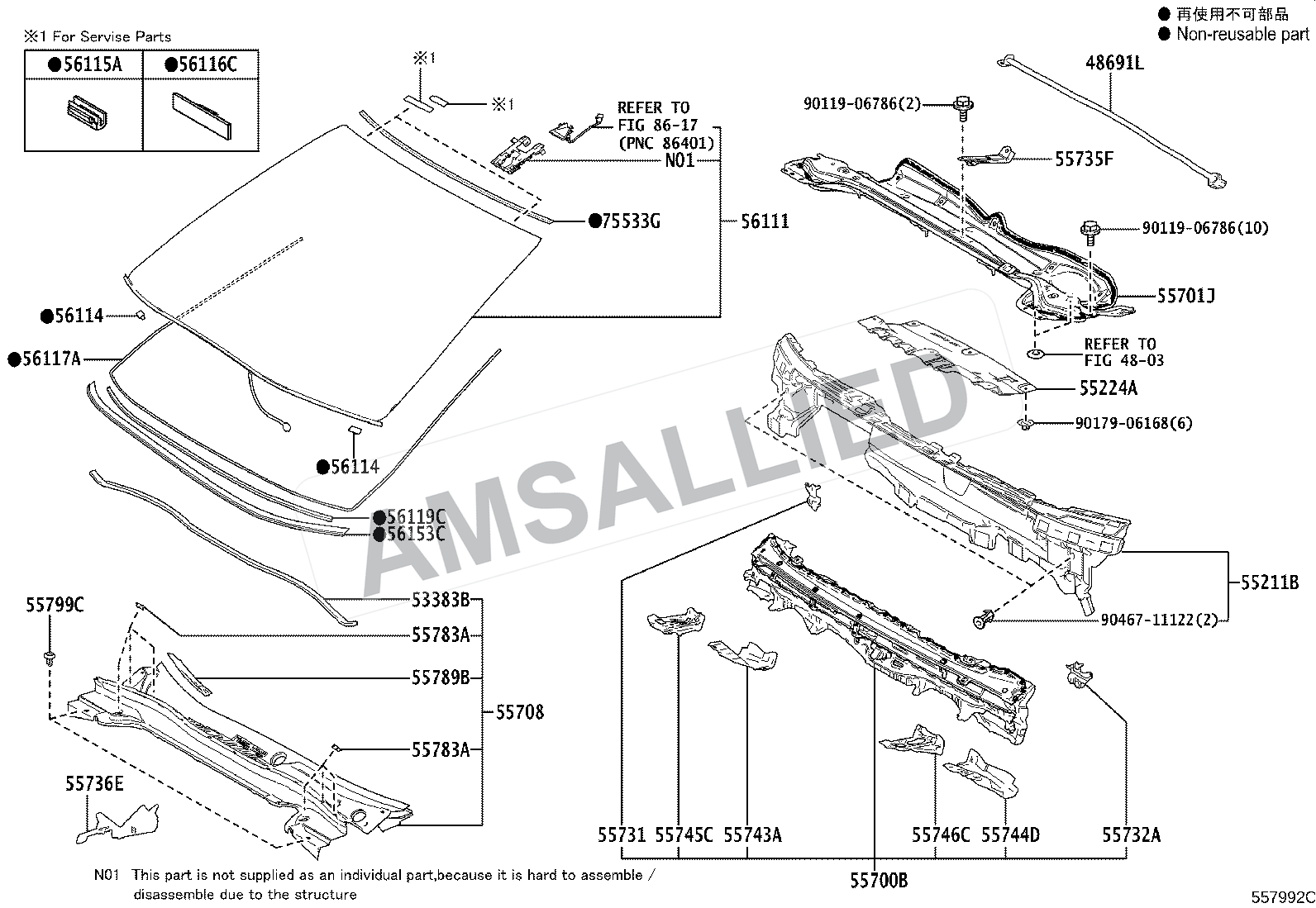

Figure 5503 · Cowl Panel & Windshield Glass
22 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
22 partsPanel Assy, Cowl Top
PNC 55700A
Cowl Assy
PNC 55700B
Cowl Assy
PNC 55700B
Louver, Cowl Ventilator
PNC 55781
Panel, Cowl Top Side, Rh
PNC 55713A
Panel, Cowl Top Side, Lh
PNC 55714A
Reinforcement, Cowl Top, Inner Rh
PNC 55745C
Reinforcement, Cowl Top, Inner Rh
PNC 55745C
Reinforcement, Cowl Top, Inner Lh
PNC 55746C
Glass, Windshield
PNC 56111
Glass, Windshield
PNC 56111
Stopper, Windshield Glass, No.1
PNC 56115A
Spacer, Windshield Glass, No.2
PNC 56126B
Dam, Window Glass Adhesive
PNC 56117A
Spacer, Windshield Glass, No.1
PNC 56126A
Diagram Hardware / Fastener
PNC 9011906786
Diagram Hardware / Fastener
PNC 9017906168
Diagram Hardware / Fastener
PNC 9046711122
Diagram Hardware / Fastener
PNC 90118WC260
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC021
