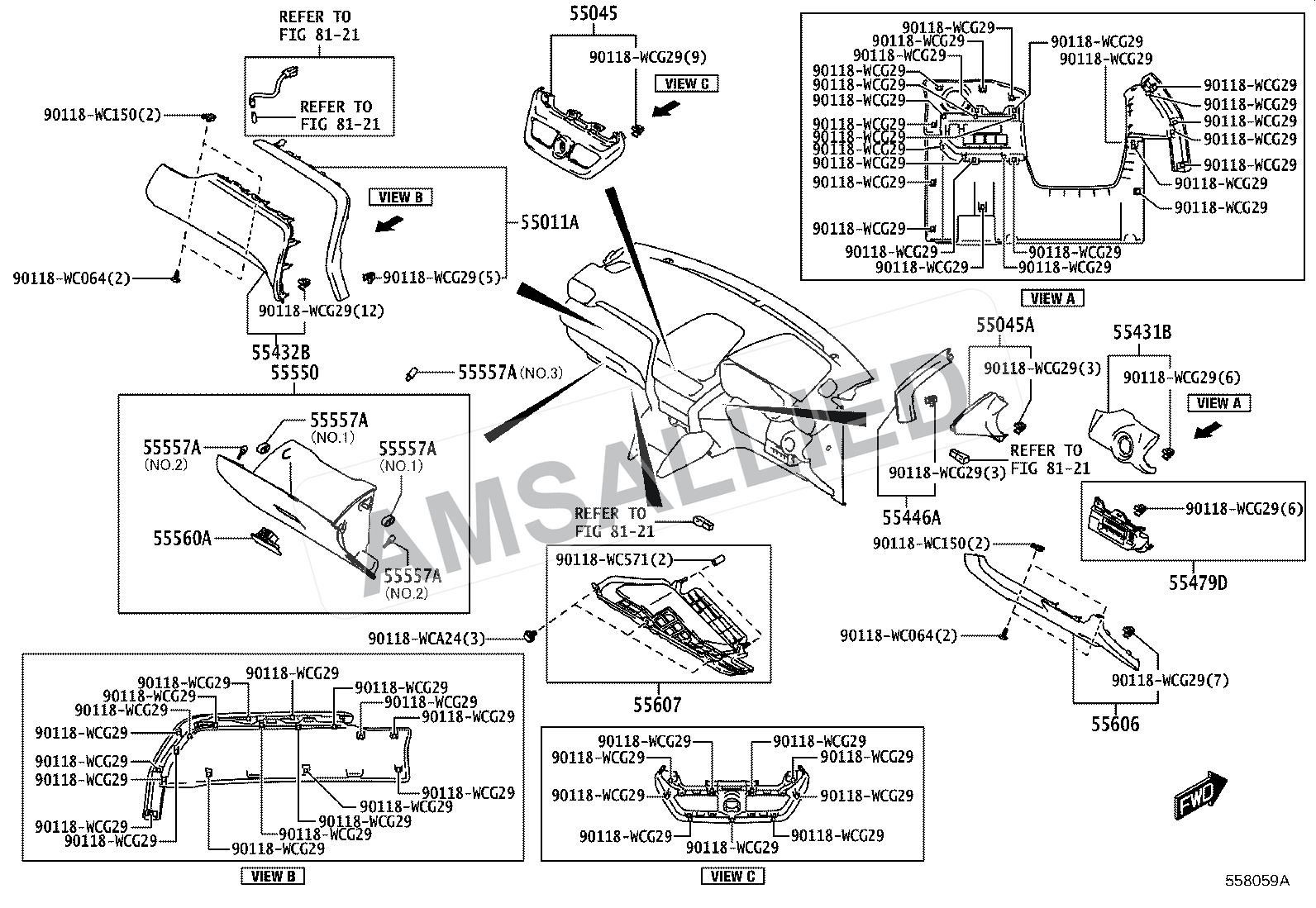

Figure 5501 · Instrument Panel & Glove Compartment

55045-WC016

Panel Sub-assy, Instrument Panel Finish, Lower

PNC 55045

55045-WC017

Panel Sub-assy, Instrument Panel Finish, Lower

PNC 55045

55045-WC018

Panel Sub-assy, Instrument Panel Finish, Lower Rh

PNC 55045A

55045-WC019

Panel Sub-assy, Instrument Panel Finish, Lower Rh

PNC 55045A

55302-WC012

Panel Sub-assy, Instrument, Upper

PNC 55302A

55303-WC009

Panel Sub-assy, Instrument, Lower

PNC 55303B

55308-WC003

Bracket Sub-assy, Instrument Panel, Center

PNC 55308C

55330-WC012

Reinforcement Assy, Instrument Panel

PNC 55330B

55330-WC023

Reinforcement Assy, Instrument Panel

PNC 55330B

55355-WC008

Cushion, Instrument Panel, No.1

PNC 55355

55356-WC002

Cushion, Instrument Panel, No.2

PNC 55356C

55405-WC015

Panel Sub-assy, Instrument Cluster Finish, Center

PNC 55405B

55405-WC016

Panel Sub-assy, Instrument Cluster Finish, Center

PNC 55405B

55405-WC017

Garnish Sub-assy, Instrument Panel, No.1

PNC 55011A

55405-WC018

Garnish Sub-assy, Instrument Panel, No.1

PNC 55011A

55410-WC011

Panel Assy, Instrument Cluster Finish

PNC 55410C

55410-WC012

Panel Assy, Instrument Cluster Finish

PNC 55410C

55412-WC009

Panel, Instrument Cluster Finish, Center

PNC 55412D

55412-WC010

Panel, Instrument Cluster Finish, Center

PNC 55412D

55431-WC001

Panel, Instrument Panel Finish, Upper

PNC 55431B

55431-WC002

Panel, Instrument Panel Finish, Upper

PNC 55431B

55431-WC003

Panel, Instrument Panel Finish, Upper

PNC 55431B

55431-WC004

Panel, Instrument Panel Finish, Upper

PNC 55431B

55432-WC002

Panel, Instrument Panel Finish, Lower

PNC 55432B

55432-WC003

Panel, Instrument Panel Finish, Lower

PNC 55432B

55432-WC004

Panel, Instrument Panel Finish, Lower

PNC 55432B

55432-WC005

Panel, Instrument Panel Finish, Lower

PNC 55432B

55446-WC014

Base, Switch Hole, No.1

PNC 55446A

55475-WC014

Garnish, Instrument Cluster Finish Panel, Center

PNC 55475B

55475-WC015

Garnish, Instrument Cluster Finish Panel, Center

PNC 55475B

55479-WC008

Garnish, Instrument Cluster Finish Panel, Lower

PNC 55479D

55521-WC002

Cover, Stereo Opening

PNC 55521C

55522-WC001

Cover, Radio Tuner Opening

PNC 55522B

55539-WC005

Cover, Spare Switch Hole

PNC 55539

55545-WC001

Cover, Instorument Panel Hole, No.1

PNC 55545D

55550-WC010

Door Assy, Glove Compartment

PNC 55550

55557-WC001

Cushion, Glove Compartment Door Check

PNC 55557A

55557-WC003

Cushion, Glove Compartment Door Check

PNC 55557A

55557-WC004

Cushion, Glove Compartment Door Check

PNC 55557A

55560-WC001

Lock Assy, Glove Compartment Door

PNC 55560A

55606-WC013

Cover Sub-assy, Instrument Panel Under, No.1

PNC 55606

55607-WC013

Cover Sub-assy, Instrument Panel Under, No.2

PNC 55607

55650-WC009

Register Assy, Instrument Panel, No.1

PNC 55650

55650-WC010

Register Assy, Instrument Panel, No.1

PNC 55650

55660-WC009

Register Assy, Instrument Panel, No.2

PNC 55660

55660-WC010

Register Assy, Instrument Panel, No.2

PNC 55660

55670-WC020

Register Assy, Instrument Panel, No.3

PNC 55670

55670-WC022

Register Assy, Instrument Panel, No.3

PNC 55670

55680-WC008

Register Assy, Instrument Panel, No.4

PNC 55680A

55680-WC010

Register Assy, Instrument Panel, No.4

PNC 55680A

73960-WC006

Airbag Assy, Instrument Panel Passenger W/o Door

PNC 73960A

90118-WCG29

Diagram Hardware / Fastener

PNC 90118WCG29

90118-WC571

Diagram Hardware / Fastener

PNC 90118WC571

90118-WCA24

Diagram Hardware / Fastener

PNC 90118WCA24

90118-WC150

Diagram Hardware / Fastener

PNC 90118WC150

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WC572

Diagram Hardware / Fastener

PNC 90118WC572

90118-WC051

Diagram Hardware / Fastener

PNC 90118WC051

90118-WC041

Diagram Hardware / Fastener

PNC 90118WC041

90118-WC212

Diagram Hardware / Fastener

PNC 90118WC212

90118-WCF32

Diagram Hardware / Fastener

PNC 90118WCF32

90118-WC145

Diagram Hardware / Fastener

PNC 90118WC145

90118-WCJ20

Diagram Hardware / Fastener

PNC 90118WCJ20
