Seal, Radiator To Support, No.1
PNC 16561C
Body

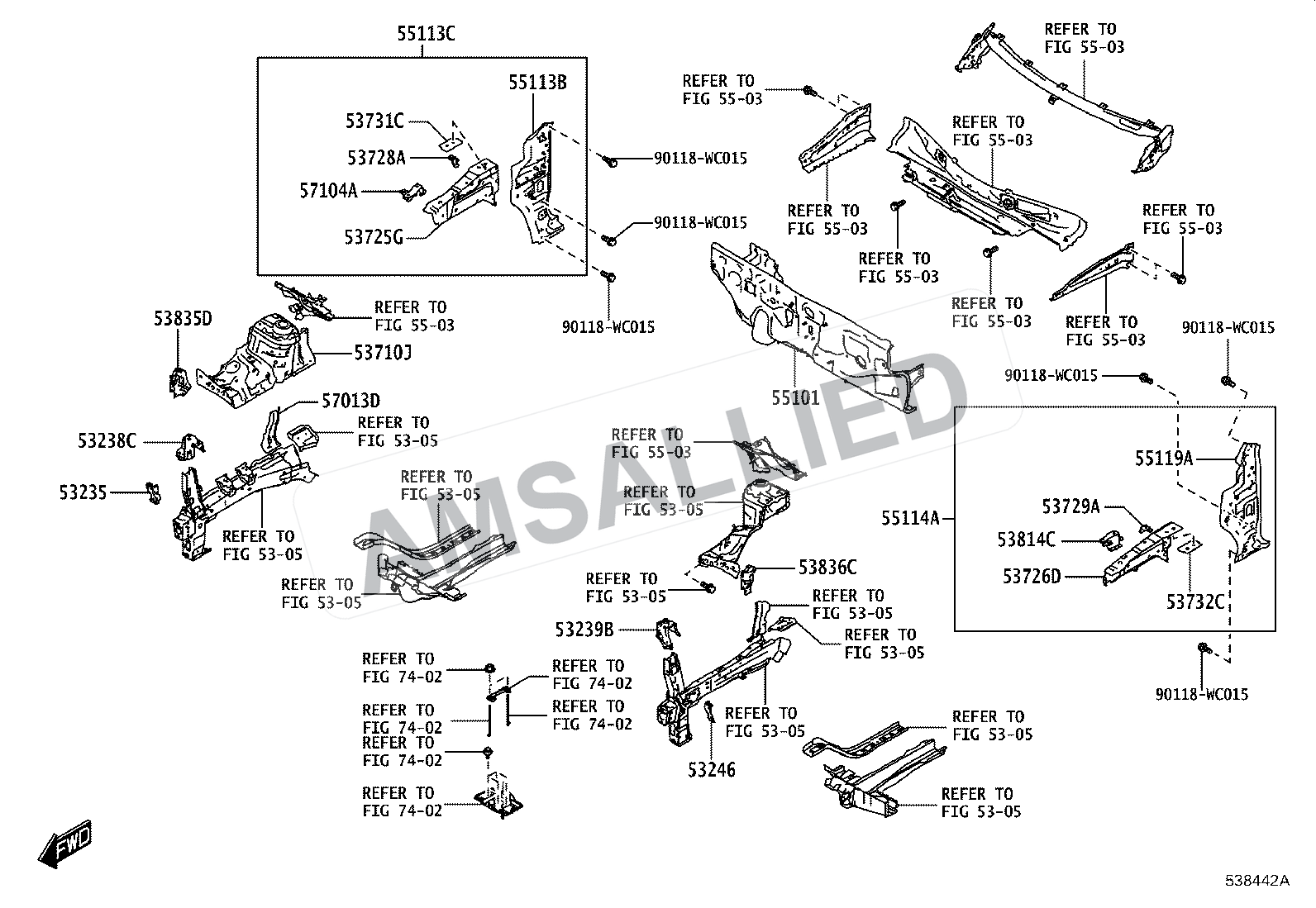

Figure 5304 · Front Fender Apron & Dash Panel
54 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
54 partsPlate, Radiator Side Air Guide, Front Rh
PNC 16691A
Plate, Radiator Side Air Guide, Front Lh
PNC 16695A
Member, Front Panel, Upper
PNC 55744C
Member, Front Panel, Upper
PNC 55744C
Support Sub-assy, Radiator, Lower
PNC 53028
Support Sub-assy, Radiator, Lower
PNC 53028
Support Sub-assy, Radiator, Upper
PNC 53205
Bracket Sub-assy, Front Side Member, Rh
PNC 57013D
Bracket, Horn Mounting
PNC 53235
Bracket, Headlamp, Lh
PNC 53246
Bracket, Fender Apron, Rh
PNC 53728A
Bracket, Fender Apron, Lh
PNC 53729A
Apron Assy, Front Fender, Rh
PNC 53710J
Apron Assy, Front Fender, Rh
PNC 53710J
Apron, Front Fender No.2 Side, Rh
PNC 53725G
Apron, Front Fender No.2 Side, Lh
PNC 53726D
Extension, Front Fender, Lh
PNC 53814C
Bracket, Front Side Panel, Rh
PNC 53835D
Bracket, Front Side Panel, Lh
PNC 53836C
Cover, Radiator Support Opening
PNC 53289A
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash Side, Rh
PNC 55113B
Extension, Dash Panel, Lh
PNC 55119A
Panel, Dash Side, Rh
PNC 55113C
Panel Sub-assy, Dash Side, Lh
PNC 55114A
Insulator Assy, Dash Panel
PNC 55210
Insulator Assy, Dash Panel
PNC 55210
Insulator Assy, Dash Panel
PNC 55210
Insulator, Dash Panel, Outer
PNC 55223A
Insulator, Dash Panel, Outer
PNC 55223A
Insulator, Dash Panel, Outer
PNC 55223A
Bracket, Hood Bumper Mounting, Rh
PNC 53238C
Bracket, Hood Bumper Mounting, Lh
PNC 53239B
Member Sub-assy, Front Cross
PNC 57104A
Pad, Front Floor Silencer
PNC 58621E
Patch, Front Fender Apron, Rh
PNC 53731C, 53732C
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC041
Diagram Hardware / Fastener
PNC 90118WCA24
Diagram Hardware / Fastener
PNC 90118WC568
Diagram Hardware / Fastener
PNC 9017910103
Diagram Hardware / Fastener
PNC 9011910992
Diagram Hardware / Fastener
PNC 9010906328
Diagram Hardware / Fastener
PNC 91635A0616
Diagram Hardware / Fastener
PNC 9010506137
Diagram Hardware / Fastener
PNC 9010908307
Diagram Hardware / Fastener
PNC 9018906236
Diagram Hardware / Fastener
PNC 9018906237
Diagram Hardware / Fastener
PNC 9046707214
Diagram Hardware / Fastener
PNC 9046707217
