Figure 5301 · Radiator Grille

7 genuine catalog part numbers · Production from 2024-01

Open interactive figure

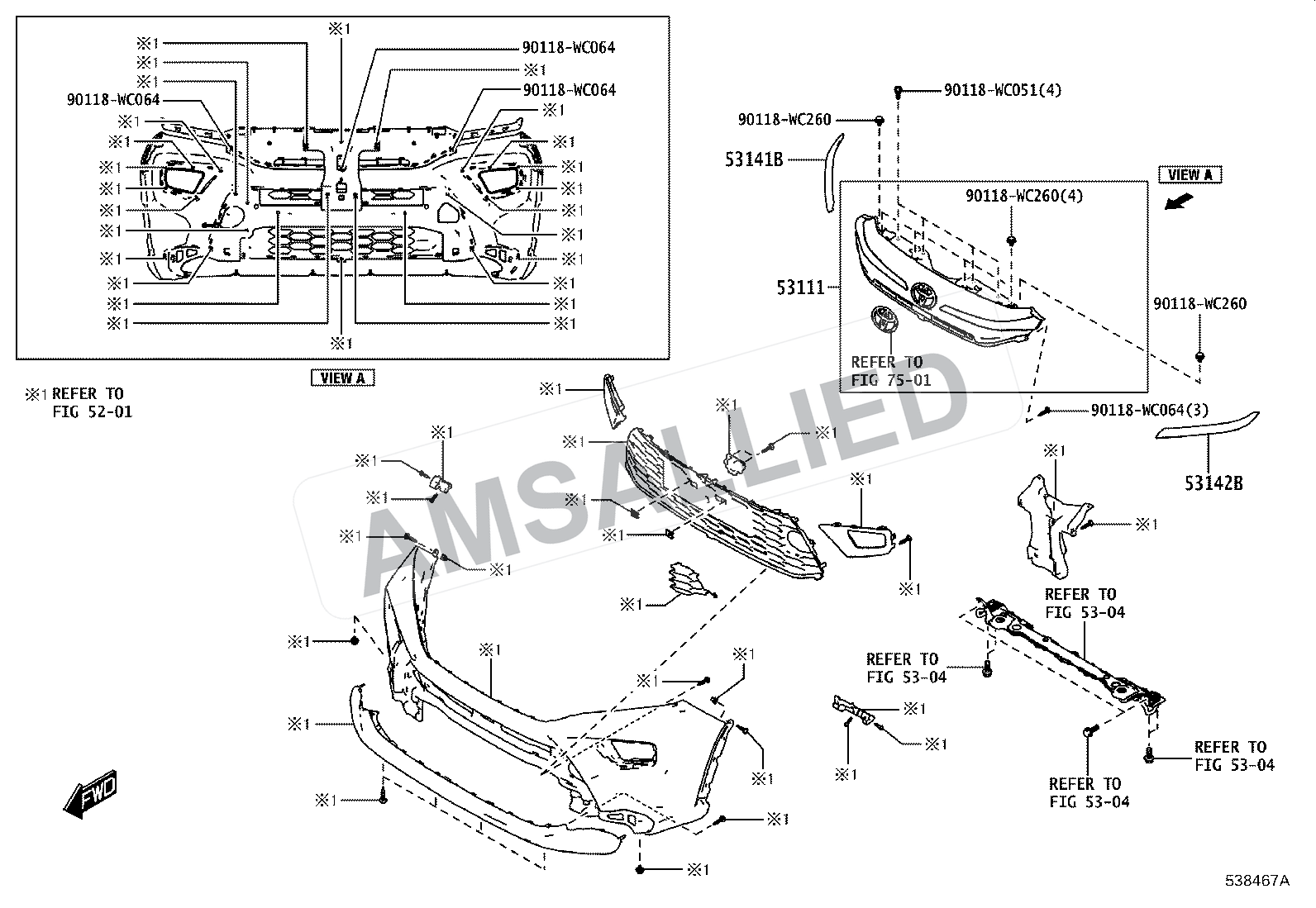

Toyota Hyryder Radiator Grille exploded parts diagram, figure 5301 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

7 parts

Grille, Radiator

PNC 53111

Grille, Radiator

PNC 53111

Garnish, Radiator Grille, No.1

PNC 53141B

Radiator Grille Garnish, No.2

PNC 53142B

Diagram Hardware / Fastener

PNC 90118WC260

Diagram Hardware / Fastener

PNC 90118WC051

Diagram Hardware / Fastener

PNC 90118WC064
