Figure 5201 · Front Bumper & Bumper Stay

19 genuine catalog part numbers · Production from 2024-01

Open interactive figure

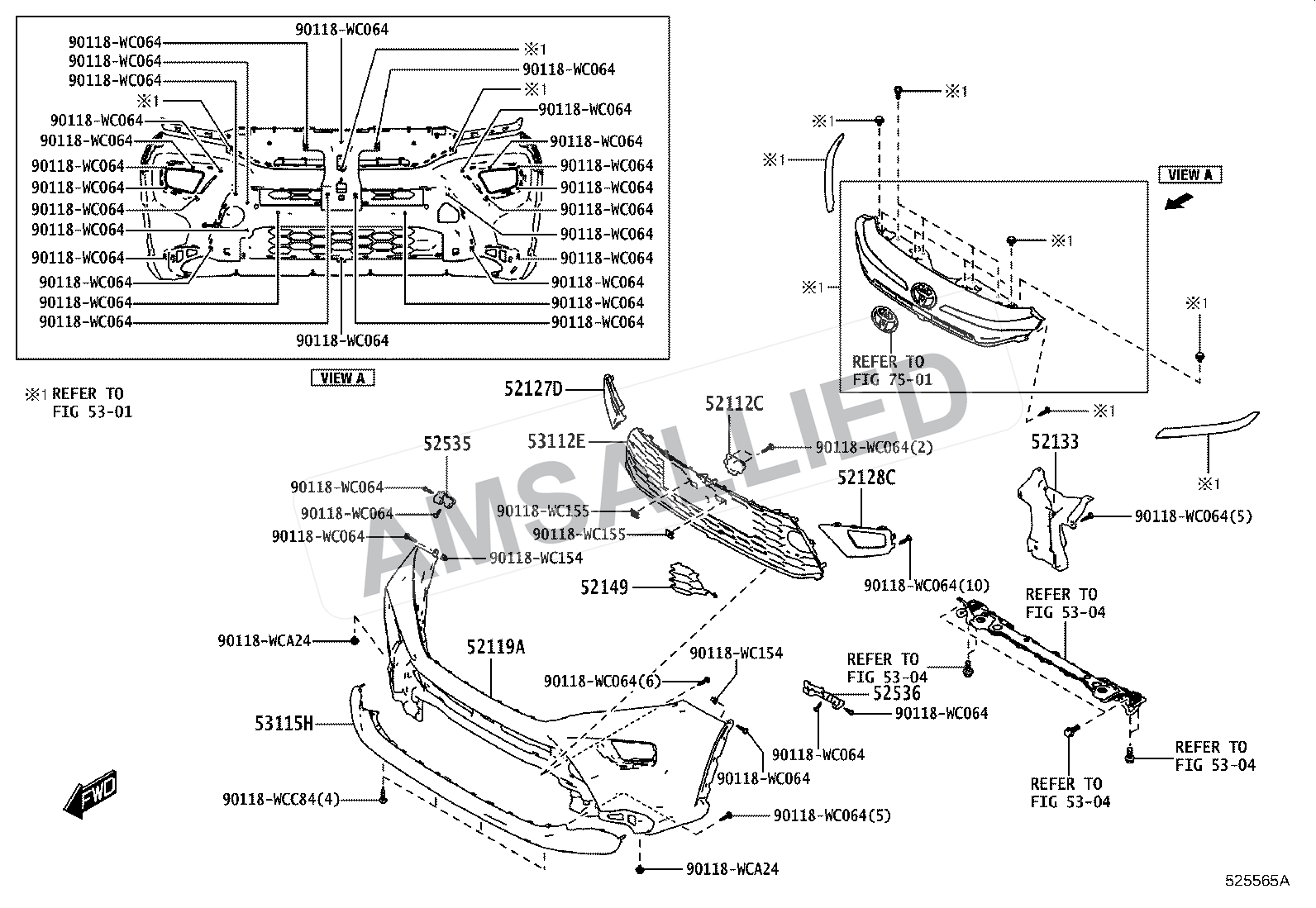

Toyota Hyryder Front Bumper & Bumper Stay exploded parts diagram, figure 5201 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

19 parts

52113-WC002

Extension, Front Bumper

PNC 52112C

52119-WC009

Cover, Front Bumper

PNC 52119A

52127-WC012

Cover, Front Bumper Hole, Rh

PNC 52127D

52127-WC013

Extension, Front Bumper

PNC 52112C

52128-WC007

Cover, Front Bumper Hole, Lh

PNC 52128C

52129-WC002

Bracket, Radiator Grille

PNC 53115H

52133-WC004

Reinforcement, Front Bumper

PNC 52133

52535-WC009

Retainer, Front Bumper Side, Rh

PNC 52535

52536-WC009

Retainer, Front Bumper Side, Lh

PNC 52536

52618-WC001

Absorber Sub-assy, Front Bumper Energy

PNC 52601

53112-WC005

Grille, Radiator, Lower No.1

PNC 53112E

53128-WC001

Bracket, Front Bumper, Inner

PNC 52149

81481-WC012

Cover, Front Bumper Hole, Rh

PNC 52127D

81482-WC011

Cover, Front Bumper Hole, Lh

PNC 52128C

90118-WCA24

Clip, Front Bumper Energy Absorber

PNC 52611B

90118-WC155

Diagram Hardware / Fastener

PNC 90118WC155

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WCC84

Diagram Hardware / Fastener

PNC 90118WCC84

90118-WC154

Diagram Hardware / Fastener

PNC 90118WC154
