Figure 5104 · Spare Wheel Carrier

9 genuine catalog part numbers · Production from 2024-01

Open interactive figure

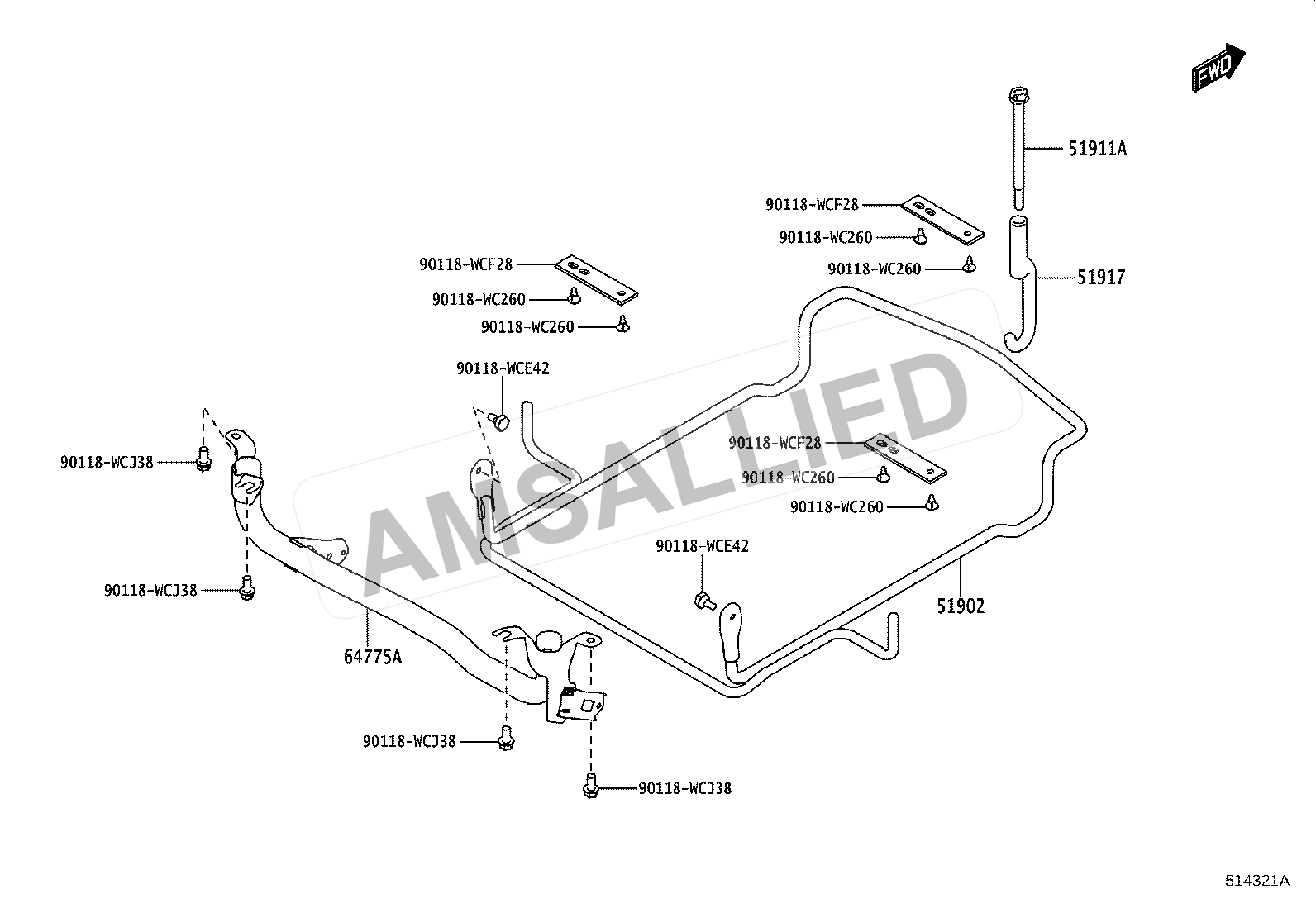

Toyota Hyryder Spare Wheel Carrier exploded parts diagram, figure 5104 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

9 parts

Bolt, Spare Wheel

PNC 51911A

Carrier Sub-assy, Spare Wheel

PNC 51902

Carrier, Spare Wheel, No.1

PNC 51931

Guard, Spare Wheel

PNC 64775A

Hook, Spare Wheel Carrier

PNC 51917

Diagram Hardware / Fastener

PNC 90118WCJ38

Diagram Hardware / Fastener

PNC 90118WC260

Diagram Hardware / Fastener

PNC 90118WCF28

Diagram Hardware / Fastener

PNC 90118WCE42
