Figure 4708 · Brake Tube & Clamp

63 genuine catalog part numbers · Production from 2024-01

Open interactive figure

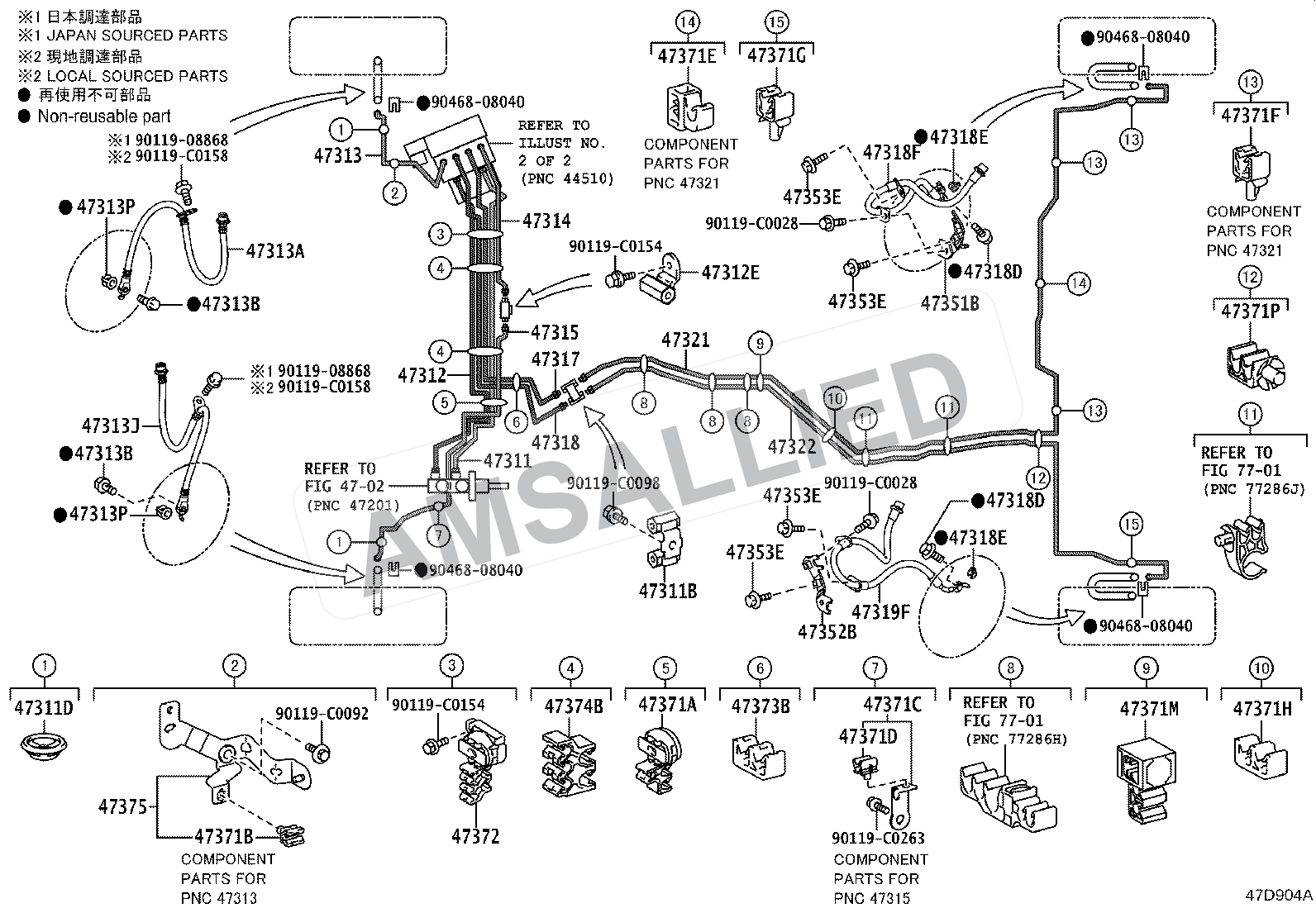

Toyota Hyryder Brake Tube & Clamp exploded parts diagram, figure 4708 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

63 parts

44050-WC018

Actuator Assy, Brake

PNC 44510

44050-WC019

Actuator Assy, Brake

PNC 44510

44050-WC020

Actuator Assy, Brake

PNC 44510

44050-WC021

Actuator Assy, Brake

PNC 44510

44050-WC022

Actuator Assy, Brake

PNC 44510

44521-WC002

Damper, Brake Actuator

PNC 44599A

44521-WC003

Damper, Brake Actuator

PNC 44599A

44546-WC001

Damper, Brake Actuator

PNC 44599A

44546-WC002

Cushion, Brake Actuator Bolt

PNC 44546A

44590-WC008

Bracket Assy, Brake Actuator

PNC 44590

44590-WC009

Bracket Assy, Brake Actuator

PNC 44590

44590-WC015

Bracket Assy, Brake Actuator

PNC 44590

47311-WC011

Tube, Front Brake, No.1

PNC 47311

47311-WC012

Tube, Front Brake, No.1

PNC 47311

47312-WC012

Tube, Front Brake, No.2

PNC 47312

47312-WC013

Tube, Front Brake, No.2

PNC 47312

47313-WC009

Tube, Front Brake, No.3

PNC 47313

47313-WC010

Tube, Front Brake, No.3

PNC 47313

47313-WC018

Tube, Front Brake, No.3

PNC 47313

47315-WC006

Tube, Front Brake, No.5

PNC 47315

47315-WC007

Tube, Front Brake, No.5

PNC 47315

47315-WC012

Tube, Front Brake, No.5

PNC 47315

47316-WC005

Tube, Front Brake, No.6

PNC 47316

47316-WC006

Tube, Front Brake, No.6

PNC 47316

47316-WC012

Tube, Front Brake, No.6

PNC 47316

47317-WC005

Tube, Front Brake, No.7

PNC 47317

47317-WC006

Tube, Front Brake, No.7

PNC 47317

47317-WC012

Tube, Front Brake, No.7

PNC 47317

47321-WC006

Tube, Rear Brake, No.1

PNC 47321

47321-WC009

Tube, Rear Brake, No.1

PNC 47321

47322-WC005

Tube, Rear Brake, No.2

PNC 47322

47323-WC008

Tube, Rear Brake, No.3

PNC 47323

47324-WC008

Tube, Rear Brake, No.4

PNC 47324

47389-WC001

Gasket(for Front Flexible Hose)

PNC 47313P

473A1-WC001

Tube, Accumulator To Brake Master Cylinder

PNC 473A1

77281-WC020

Clamp, Brake Tube, No.13

PNC 47371M

90118-WC545

Bolt, Union(for Front Flexible Hose)

PNC 47313B

90118-WC551

Clamp, Brake Tube, No.7

PNC 47371C, 47371H

90118-WCB32

Clamp, Brake Tube, No.10

PNC 47371F

90118-WCB33

Clamp, Brake Tube, No.11

PNC 47371G

90118-WCL04

Hose, Flexible, No.1(for Front)

PNC 47313A

90118-WCL05

Hose, Flexible(for Rear Brake Tube)

PNC 47321B

90118-WCL06

Hose, Flexible(for Rear Rh)

PNC 47318F, 47319F

90118-WCL07

Clamp, Brake Tube, No.1

PNC 47371A

90118-WCL08

Clamp, Brake Tube, No.2

PNC 47372

90118-WCL09

Clamp, Brake Tube, No.3

PNC 47373B

90118-WCL10

Clamp, Brake Tube, No.4

PNC 47374B

90118-WCL11

Clamp, Brake Tube, No.5

PNC 47375

90118-WCL12

Clamp, Brake Tube, No.6

PNC 47371B

90118-WCL13

Clamp, Brake Tube, No.9

PNC 47371E

90118-WCL14

Clamp, Brake Tube, No.8

PNC 47371D

90118-WCU48

Way, No.1(for Front Brake Tube)

PNC 47311B

90118-WCW05

Hose, Flexible(for Rear Rh)

PNC 47318F, 47319F

90119-C0028

Diagram Hardware / Fastener

PNC 90119C0028

90468-08040

Diagram Hardware / Fastener

PNC 9046808040

90119-C0098

Diagram Hardware / Fastener

PNC 90119C0098

90119-C0263

Diagram Hardware / Fastener

PNC 90119C0263

90119-C0154

Diagram Hardware / Fastener

PNC 90119C0154

90119-08868

Diagram Hardware / Fastener

PNC 9011908868

90119-C0158

Diagram Hardware / Fastener

PNC 90119C0158

90119-C0092

Diagram Hardware / Fastener

PNC 90119C0092

90118-WCA16

Diagram Hardware / Fastener

PNC 90118WCA16

90118-WC041

Diagram Hardware / Fastener

PNC 90118WC041
