Collar, Brake Actuator Case
PNC 44521C
Powertrain / Chassis

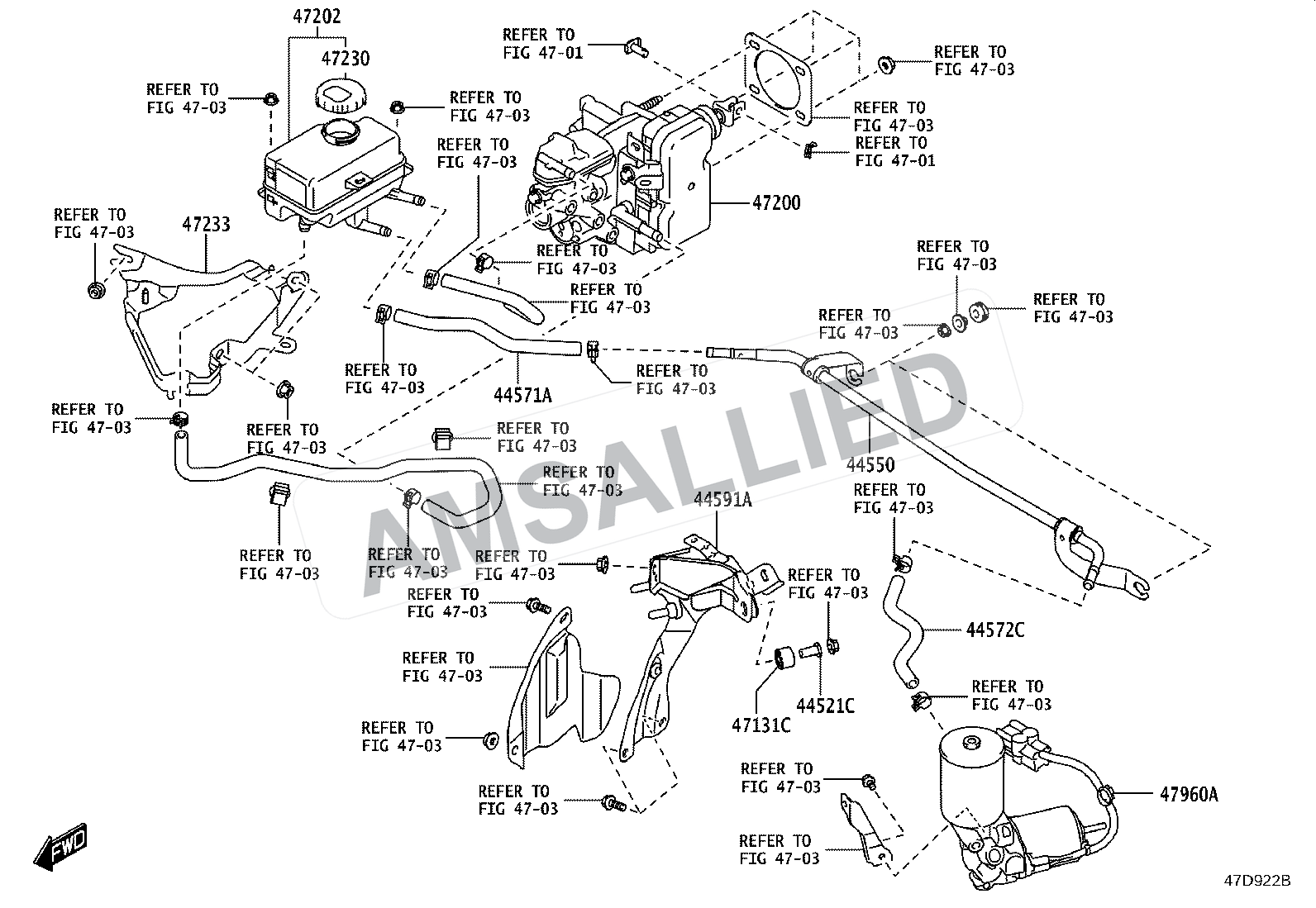

Figure 4702 · Brake Master Cylinder
20 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
20 partsCushion
PNC 47131C
Tube Assy, Brake Actuator
PNC 44550
Hose, Brake Actuator, No.1
PNC 44571A
Hose, Brake Actuator, No.2
PNC 44572C
Bracket, Brake Actuator, No.1
PNC 44591A
Pump Assy, Brake Booster
PNC 47960A
Cylinder Assy, Brake Master
PNC 47200
Cylinder Assy, Brake Master
PNC 47200
Cylinder Assy, Brake Master
PNC 47200
Reservoir Assy, Brake Master Cylinder
PNC 47220D
Reservoir Sub-assy, Brake Master Cylinder
PNC 47202
Reservoir Assy, Brake Master Cylinder
PNC 47220D
Cap Assy, Brake Master Cylinder Reservoir Filler
PNC 47230
Cap Assy, Brake Master Cylinder Reservoir Filler
PNC 47230
Bracket, Reservoir
PNC 47233
Strainer, Brake Master Cylinder Reservoir
PNC 47299
Grommet, Master Cylinder Reservoir
PNC 47255
Diagram Hardware / Fastener
PNC 90118WC542
Diagram Hardware / Fastener
PNC 90118WC543
