Powertrain / Chassis

Figure 4302 · Front Drive Shaft

45 genuine catalog part numbers · Production from 2024-01

Open interactive figure

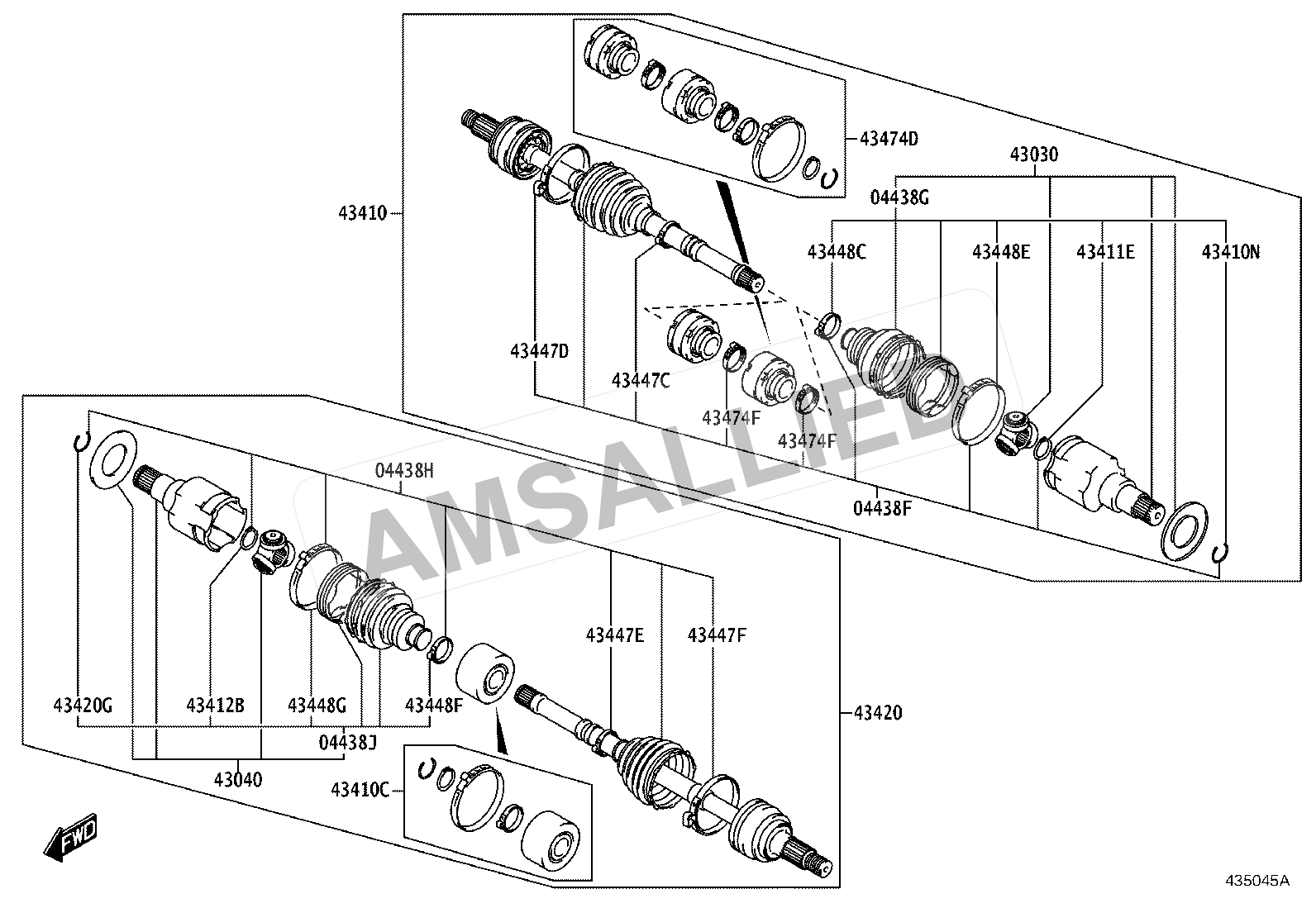

Toyota Hyryder Front Drive Shaft exploded parts diagram, figure 4302 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

45 parts

04427-WC019

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F, 04438H

04427-WC020

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC021

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC022

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC024

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04427-WC025

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04437-WC015

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

04437-WC016

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

04437-WC017

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

04437-WC018

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G

42345-WC003

Clamp (for Front Axle Inboard Joint Boot Rh)

PNC 43448C, 43448F

42345-WC027

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F, 43448E, 43448G

42345-WC028

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC029

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC031

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F

42345-WC033

Clamp (for Front Axle Inboard Joint Boot Rh)

PNC 43448C, 43448F

42345-WC034

Clamp (for Front Axle Outboard Joint Boot Rh)

PNC 43447C, 43447E, 43448C, 43448F

42345-WC035

Clamp (for Front Axle Outboard Joint Boot Rh)

PNC 43447C, 43447E

42345-WC036

Clamp (for Front Drive Shaft Damper Rh)

PNC 43474F

43030-WC010

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43030-WC011

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43040-WC014

Joint Assy, Front Drive Inboard, Lh

PNC 43040

43040-WC015

Joint Assy, Front Drive Inboard, Rh

PNC 43030, 43040

43040-WC016

Joint Assy, Front Drive Inboard, Rh

PNC 43030, 43040

43410-WC016

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC017

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC018

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC019

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC033

Shaft Assy, Front Drive, Rh

PNC 43410

43420-WC016

Shaft Assy, Front Drive, Lh

PNC 43420

43420-WC017

Shaft Assy, Front Drive, Lh

PNC 43420

43420-WC018

Shaft Assy, Front Drive, Lh

PNC 43420

43474-WC009

Damper, Front Drive Shaft, Rh

PNC 43474D

43474-WC010

Damper, Front Drive Shaft, Rh

PNC 43474D

43474-WC011

Damper, Front Drive Shaft, Rh

PNC 43474D

43474-WC012

Bearing (for Front Drive Shaft)

PNC 43410C

43474-WC013

Damper, Front Drive Shaft, Rh

PNC 43474D

90118-WCG97

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Rh)

PNC 43411E, 43412B

90118-WCK96

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Rh)

PNC 43411E, 43420G

90118-WCK97

Ring, Hole Snap (for Front Drive Shaft Rh)

PNC 43410N, 43420G

90118-WCK98

Ring, Hole Snap (for Front Drive Shaft Rh)

PNC 43410N, 43420G

90118-WCL00

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Rh)

PNC 43411E, 43412B

90311-35082

Oil Seal, Front Drive Shaft, Lh

PNC 43420H

90311-35083

Oil Seal, Front Drive Shaft, Rh

PNC 43410M

90118-WCK99

Diagram Hardware / Fastener

PNC 90118WCK99
