Figure 3514 · Oil Cooler & Tube (atm)

10 genuine catalog part numbers · Production from 2024-01

Open interactive figure

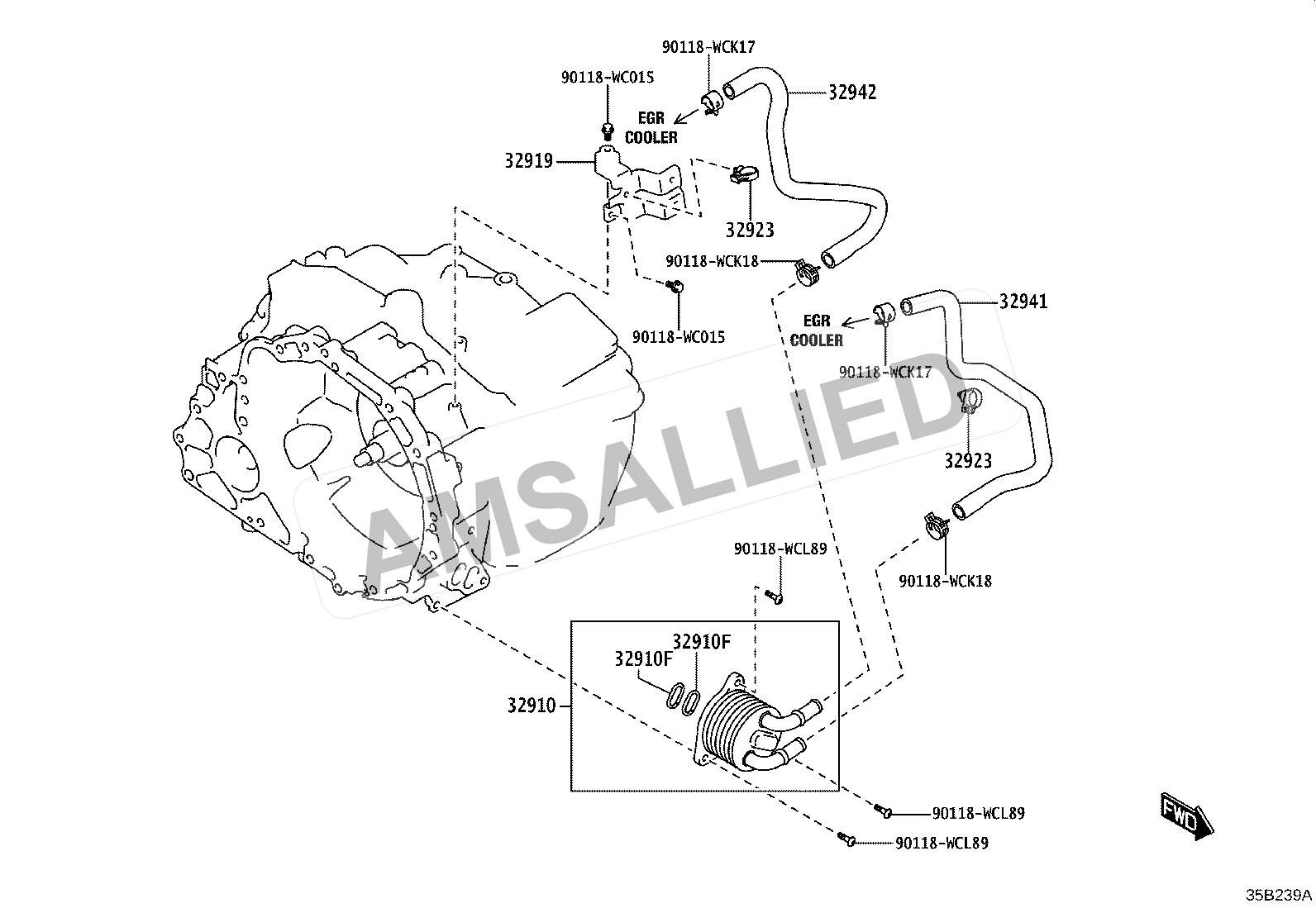

Toyota Hyryder Oil Cooler & Tube (atm) exploded parts diagram, figure 3514 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

10 parts

Cooler Assy, Oil

PNC 32910

Holder, Oil Cooler Tube

PNC 32919

Clamp, Automatic Transmission Oil Cooler Tube

PNC 32923

Hose, Oil Cooler Inlet, No.1

PNC 32941

Hose, Oil Cooler Outlet, No.1

PNC 32942

Ring, O(for Oil Cooler)

PNC 32910F

Diagram Hardware / Fastener

PNC 90118WC015

Diagram Hardware / Fastener

PNC 90118WCK17

Diagram Hardware / Fastener

PNC 90118WCK18

Diagram Hardware / Fastener

PNC 90118WCL89
