Figure 3507 · Brake Band & Multiple Disc Clutch (atm)

14 genuine catalog part numbers · Production from 2024-01

Open interactive figure

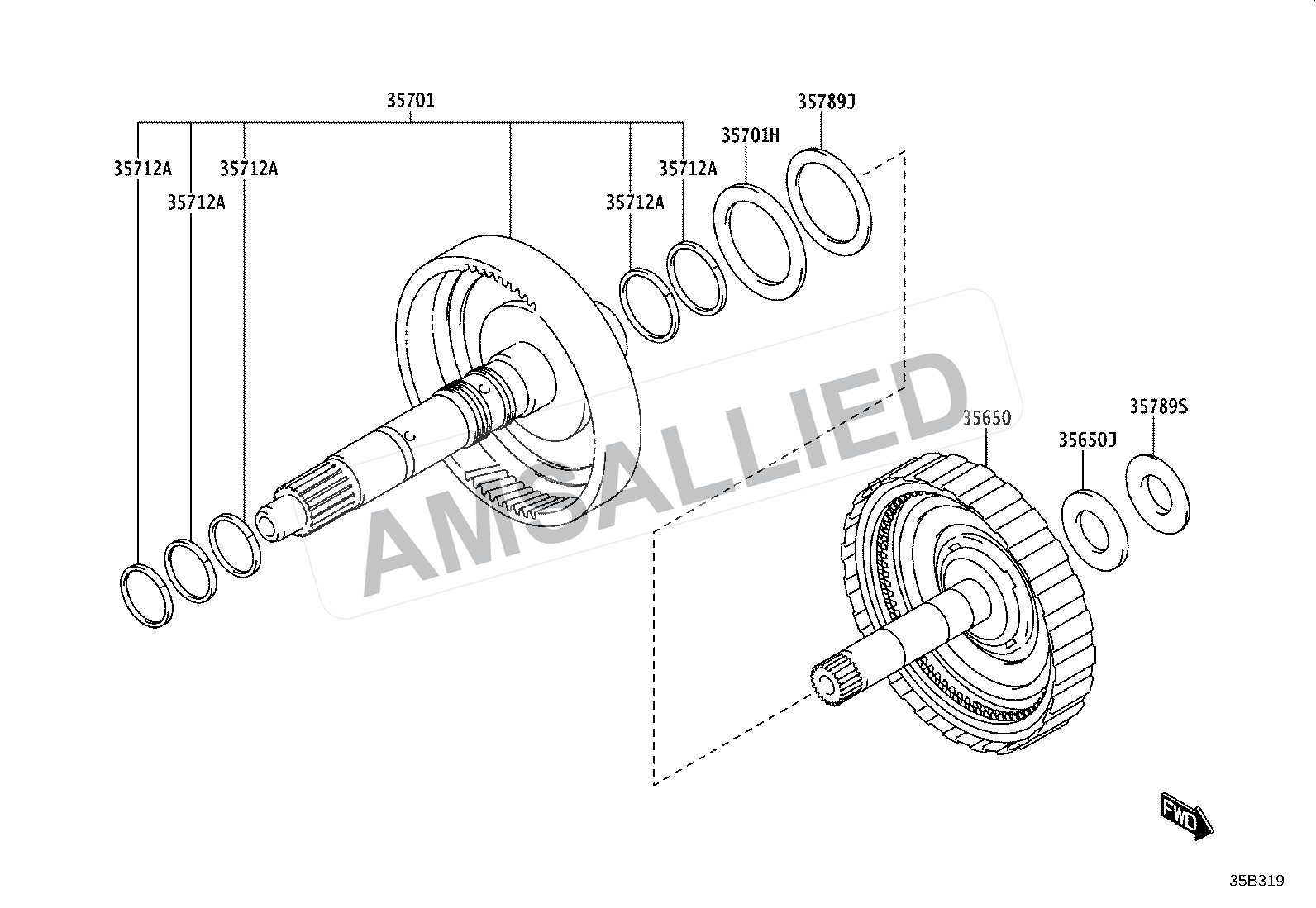

Toyota Hyryder Brake Band & Multiple Disc Clutch (atm) exploded parts diagram, figure 3507 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

14 parts

Clutch Assy, Front Multiple Disc

PNC 35610

Clutch Assy, Rear Multiple Disc

PNC 35650

Shaft Sub-assy, Input

PNC 35701

Ring, Input Shaft Oil Seal

PNC 35712A

Ring, Input Shaft Oil Seal

PNC 35712A

Race, Thrust Bearing (for Input Shaft Front)

PNC 35789J

Race, Thrust Bearing (for Input Shaft Rear)

PNC 35789S

Cover, Brake Piston

PNC 35815C

Piston, B-1 Brake

PNC 35821J

Bearing, Thrust Needle Roller (for Input Shaft)

PNC 35701H

Bearing, Thrust Needle Roller (for Direct Disc Clutch)

PNC 35650J

Ring, O(for B-1 Brake Piston)

PNC 35821L

Diagram Hardware / Fastener

PNC 35671WC001

Diagram Hardware / Fastener

PNC 35697WC001
