Converter Assy, Torque
PNC 32000
Powertrain / Chassis

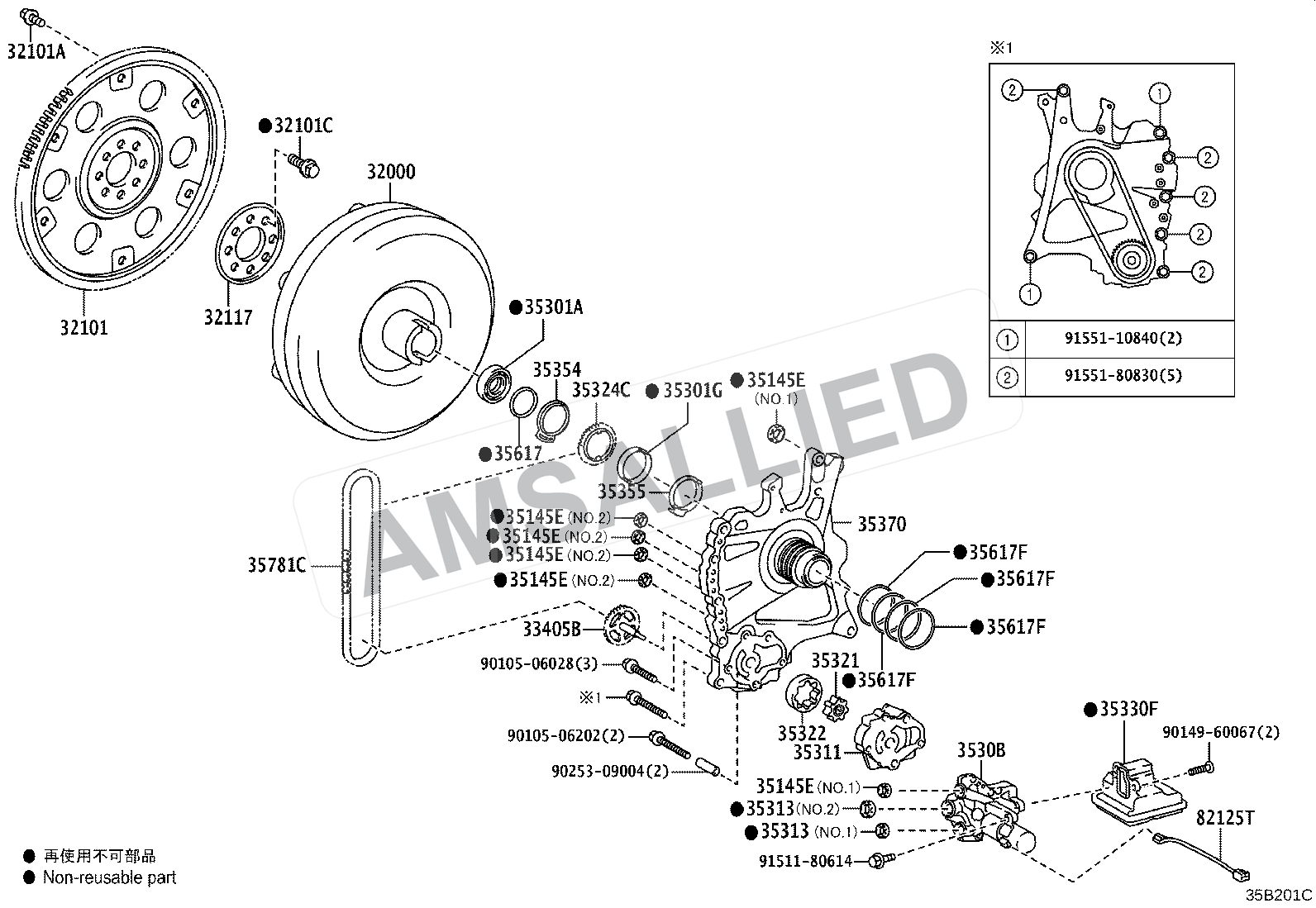

Figure 3502 · Torque Converter, Front Oil Pump & Chain (atm)
21 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
21 partsGear Sub-assy, Drive Plate & Ring
PNC 32101
Spacer, Drive Plate, Front
PNC 32116
Spacer, Drive Plate, Rear
PNC 32117
Gasket, Front Oil Pump Cover
PNC 35313
Pump Assy, Front Oil
PNC 35310F
Washer, Clutch Drum Thrust
PNC 35616F
Ring, Clutch Drum Oil Seal
PNC 35617
Bolt(for Drive Plate & Torque Converter Setting)
PNC 32101A
Bolt, Hexagon(for Drive Plate Setting)
PNC 32101C
Bolt(for Drive Plate & Torque Converter Setting)
PNC 32101A
Bolt (for Front Oil Pump Setting)
PNC 35301F
Seal, Oil (for Front Oil Pump)
PNC 35301A
Bolt (for Front Oil Pump Setting)
PNC 35301F
Diagram Hardware / Fastener
PNC 9010506028
Diagram Hardware / Fastener
PNC 9010506202
Diagram Hardware / Fastener
PNC 9155110840
Diagram Hardware / Fastener
PNC 9155180830
Diagram Hardware / Fastener
PNC 9151180614
Diagram Hardware / Fastener
PNC 9014960067
Diagram Hardware / Fastener
PNC 9025309004
