Powertrain / Chassis

Figure 3102 · Clutch Pedal & Flexible Hose

16 genuine catalog part numbers · Production from 2024-01

Open interactive figure

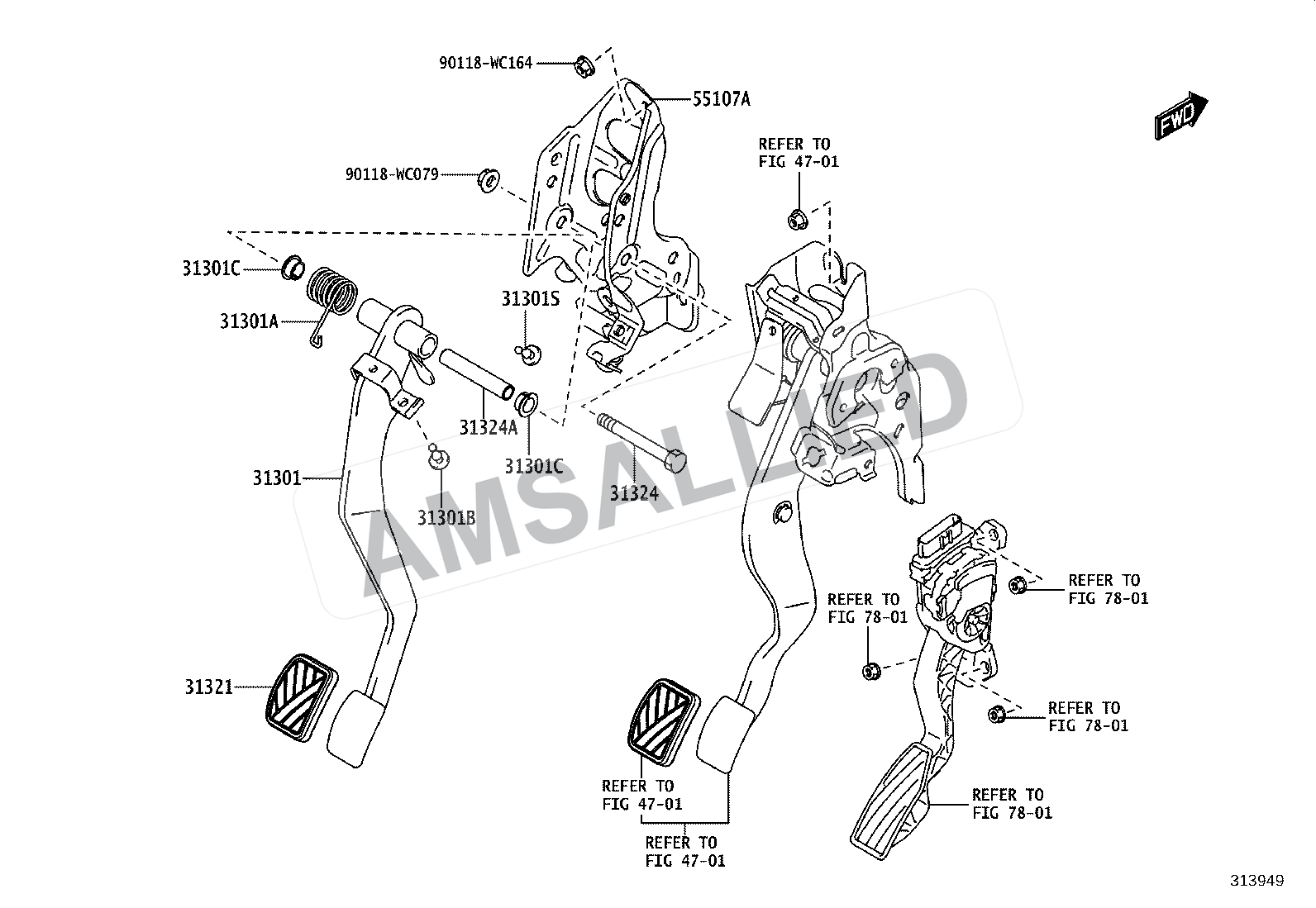

Toyota Hyryder Clutch Pedal & Flexible Hose exploded parts diagram, figure 3102 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

16 parts

31301-WC004

Pedal Sub-assy, Clutch

PNC 31301

31481-WC014

Tube, Clutch Master Cylinder To Flexible Hose

PNC 31481

31484-WC003

Bracket, Flexible Hose(for Clutch)

PNC 31484

47121-WC002

Pad, Clutch Pedal

PNC 31321

47121-WC005

Pad, Clutch Pedal

PNC 31321

55107-WC012

Support Sub-assy, Clutch Pedal

PNC 55107A

90118-WC219

Bush(for Clutch Pedal)

PNC 31301C

90118-WC220

Cushion, No.1(for Clutch Pedal)

PNC 31301B

90118-WC676

Shaft, Clutch Pedal

PNC 31324

90118-WC893

Collar, Clutch Pedal Shaft

PNC 31324A

90118-WCB27

Spring(for Clutch Pedal)

PNC 31301A

90118-WCB77

Cushion, No.2(for Clutch Pedal)

PNC 31301S

90118-WCD28

Clamp(for Clutch Master Cylinder Tube)

PNC 31481M

90118-WC079

Diagram Hardware / Fastener

PNC 90118WC079

90118-WC164

Diagram Hardware / Fastener

PNC 90118WC164

90118-WC039

Diagram Hardware / Fastener

PNC 90118WC039
