Figure 1701 · Manifold

36 genuine catalog part numbers · Production from 2024-01

Open interactive figure

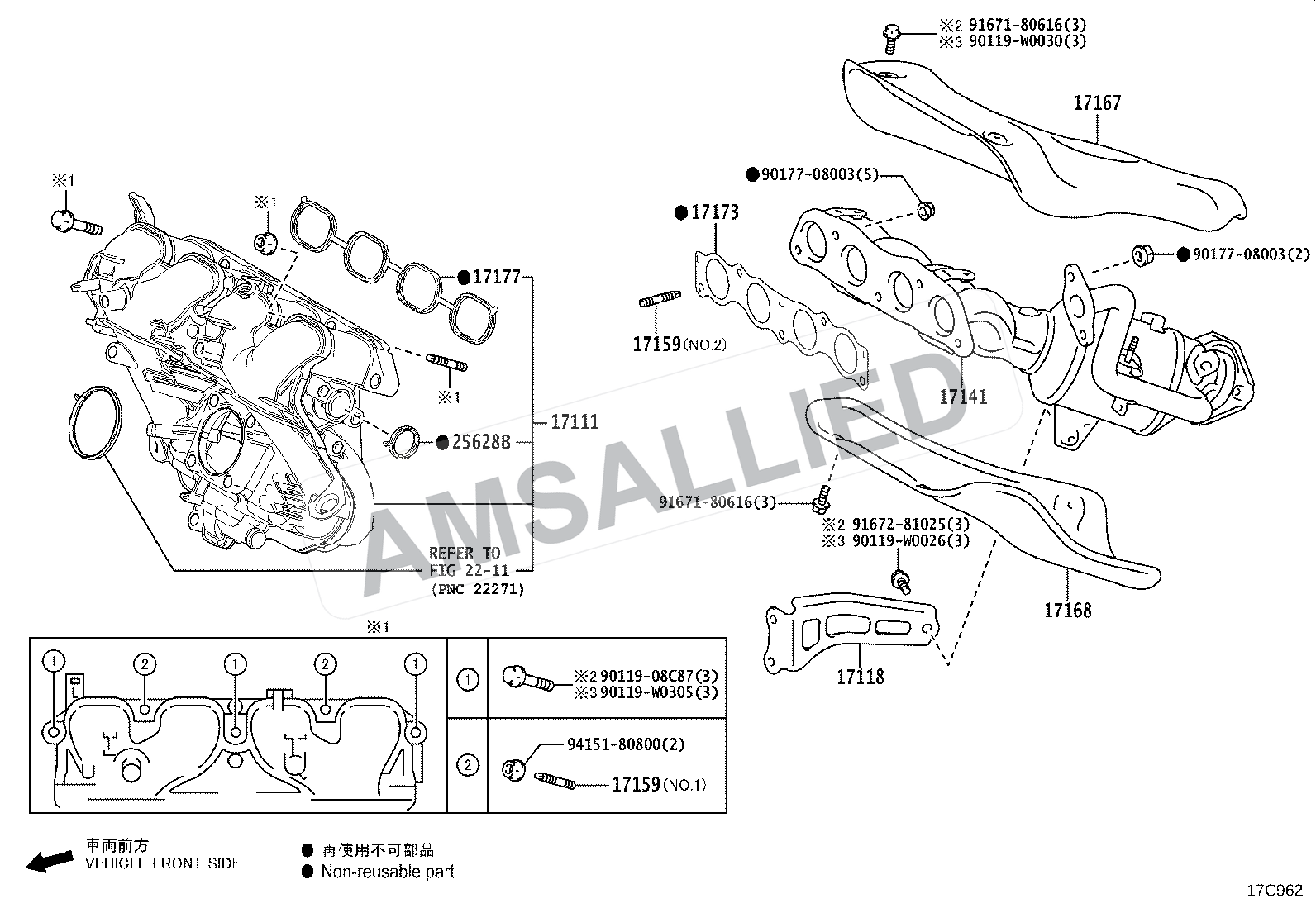

Toyota Hyryder Manifold exploded parts diagram, figure 1701
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

36 parts
17167-15120

Insulator, Exhaust Manifold Heat, No.1

PNC 17167

17167-WC004

Insulator, Exhaust Manifold Heat, No.1

PNC 17167

17168-15060

Insulator, Exhaust Manifold Heat, No.2

PNC 17168

17171-15040

Gasket, Intake Manifold To Head, No.1

PNC 17177

17171-F3030

Gasket, Intake Manifold To Head, No.1

PNC 17177

17177-WC004

Gasket, Intake Manifold To Head, No.1

PNC 17177

90118-WC006

Bolt, Stud(for Intake Manifold To Cylinder Head)

PNC 17111Z

90118-WC326

Bolt, Stud(for Manifold To Cylinder Head)

PNC 17159

90126-08052

Bolt, Stud(for Manifold To Cylinder Head)

PNC 17159

90126-T0016

Bolt, Stud(for Manifold To Cylinder Head)

PNC 17159
