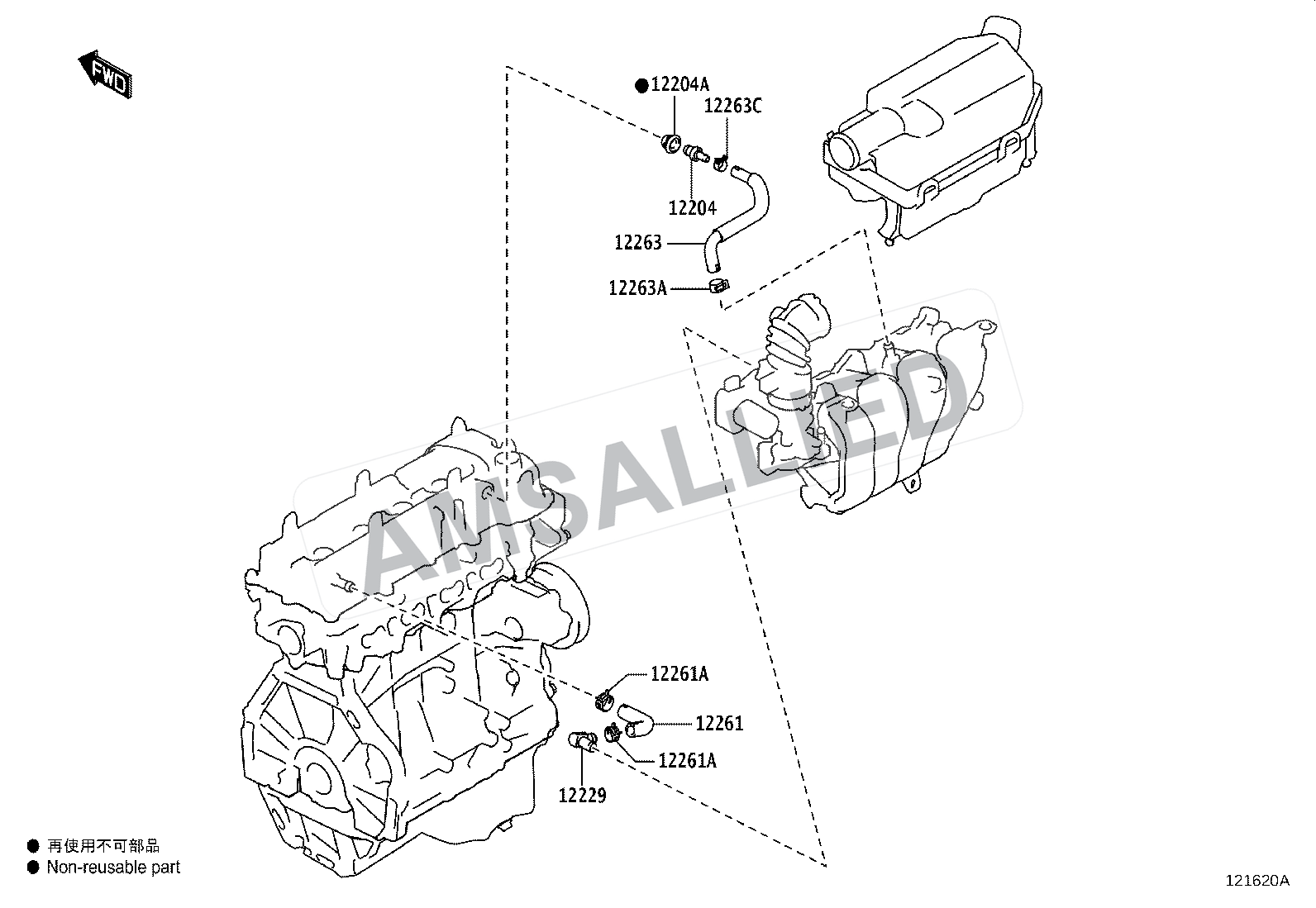

Figure 1201 · Ventilation Hose

12204-WC002

Valve Sub-assy, Ventilation

PNC 12204

12205-WC001

Case Sub-assy, Ventilation

PNC 12205

12211-F3040

Case, Ventilation, No.1

PNC 12211

12229-WC004

Pipe, Ventilation

PNC 12229

12261-WC003

Hose, Ventilation

PNC 12261

12261-WC004

Hose, Ventilation

PNC 12261

12261-WC005

Hose, Ventilation

PNC 12261

12263-WC004

Hose, Ventilation, No.3

PNC 12263

12273-15010

Gasket(for Ventilation Case)

PNC 12273E

12273-F3020

Gasket(for Ventilation Case)

PNC 12273E

12273-WC001

Gasket, Oil Separator

PNC 12273B

90118-WC235

Clip(for Ventilation Hose)

PNC 12263C

90118-WC239

Clip Or Clamp(for Ventilation Hose)

PNC 12261A, 12263A

90118-WC293

Grommet(for Ventilation System)

PNC 12204A

90118-WCL63

Clip Or Clamp(for Ventilation Hose)

PNC 12261A

90118-WC089

Diagram Hardware / Fastener

PNC 90118WC089

90118-WC017

Diagram Hardware / Fastener

PNC 90118WC017
