Retainer, Engine Rear Oil Seal
PNC 11381G
Tool / Engine / Fuel

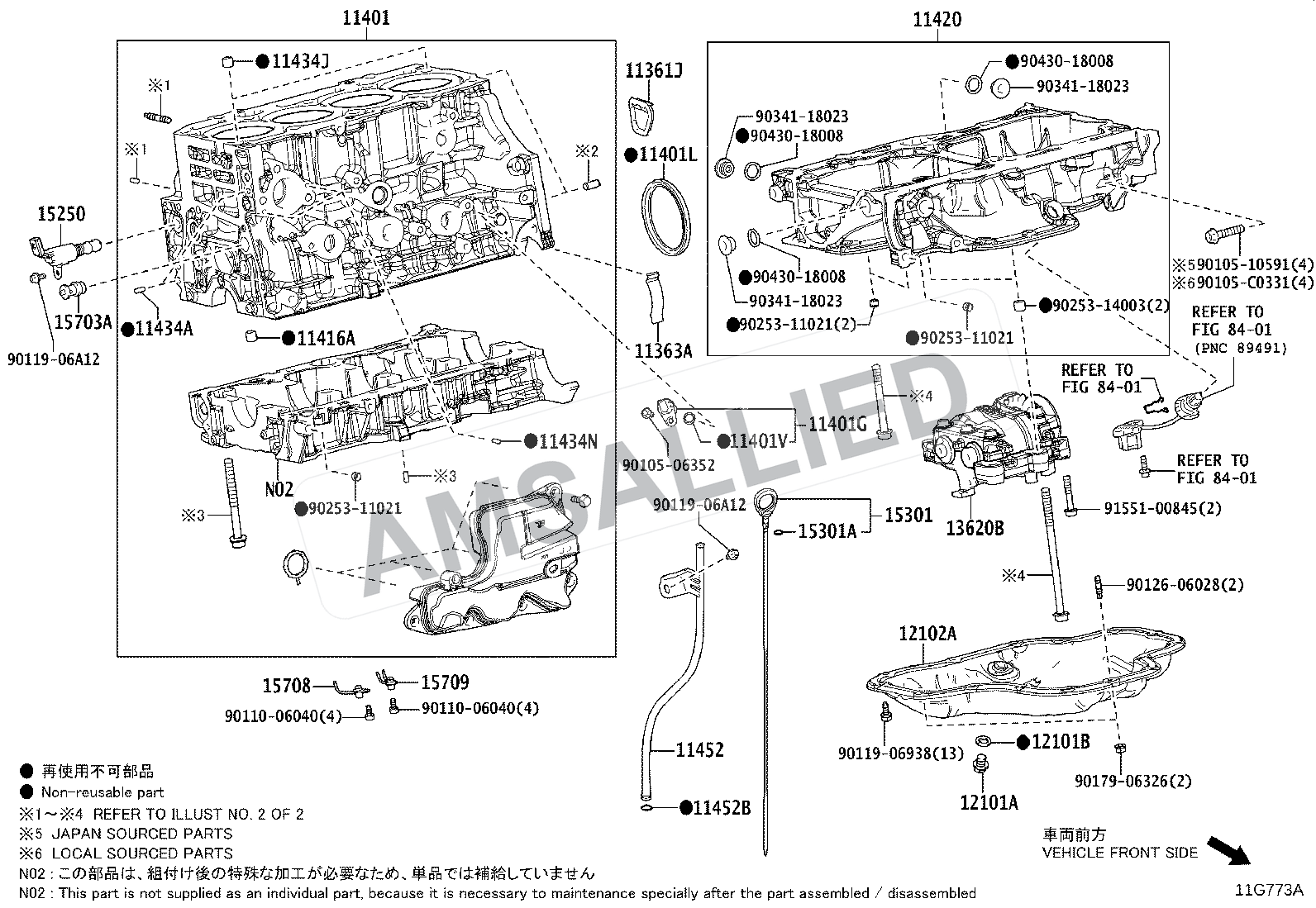

Figure 1105 · Cylinder Block
49 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
49 partsBlock Sub-assy, Cylinder
PNC 11401
Block Sub-assy, Cylinder
PNC 11401
Crankcase Assy, Stiffening
PNC 11420
Spacer, Cylinder Block Water Jacket
PNC 11445
Spacer, Cylinder Block Water Jacket
PNC 11445
Pan Sub-assy, Oil
PNC 12101
Pan Sub-assy, Oil
PNC 12101
Pan Sub-assy, Oil
PNC 12101
Plate, Oil Pan Baffle, No.1
PNC 12121
Nozzle Sub-assy, Oil, No.1
PNC 15708
Nozzle Sub-assy, Oil, No.1
PNC 15708
Pin, Ring(for Crankshaft Bearing Cap Set)
PNC 11416A
Gasket(for Oil Pan Drain Plug)
PNC 12101B
Plug, Tight, No.1(for Cylinder Block)
PNC 11431A
Bolt(for Crankshaft Bearing Cap Set)
PNC 11416
Plug(for Oil Pan Drain)
PNC 12101A
Pin, Straight(for Clutch Housing Set)
PNC 11434B, 11434Y
Sensor, Crank Position
PNC 11401G
Gasket(for Cylinder Block Plug)
PNC 11401E
Seal, Engine Rear Oil
PNC 11401L
Pin, Straight(for Timing Gear Cover Set)
PNC 11434A, 11434N, 11434Q
Pin, Straight(for Clutch Housing Set)
PNC 11434B
Pin, Ring (for Cylinder Head Set)
PNC 11434J
O-ring, Crank Position Sensor
PNC 11401V
Seal, Engine Rear Oil
PNC 11401L
Seal, Engine Rear Oil
PNC 11401L
Plug(for Oil Pan Drain)
PNC 12101A
Plug, W/head Straight Screw, No.1(for Cylinder Block)
PNC 11432R
Gasket(for Oil Pan Drain Plug)
PNC 12101B
Gasket, W/head Straight Screw Plug
PNC 11432K
Bolt(for Crankshaft Bearing Cap Set)
PNC 11416
Sensor, Crank Position
PNC 11401G
Diagram Hardware / Fastener
PNC 9010506352
Diagram Hardware / Fastener
PNC 9010510591
Diagram Hardware / Fastener
PNC 9011006040
Diagram Hardware / Fastener
PNC 9011906938
Diagram Hardware / Fastener
PNC 9011906A12
Diagram Hardware / Fastener
PNC 9012606028
Diagram Hardware / Fastener
PNC 9017906326
Diagram Hardware / Fastener
PNC 9025311021
Diagram Hardware / Fastener
PNC 9025314003
Diagram Hardware / Fastener
PNC 9155100845
Diagram Hardware / Fastener
PNC 90105C0331
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 9010510582
Diagram Hardware / Fastener
PNC 90105C0423
Diagram Hardware / Fastener
PNC 90105C0424
Diagram Hardware / Fastener
PNC 90110C0001
