Head Sub-assy, Cylinder
PNC 11101
Tool / Engine / Fuel

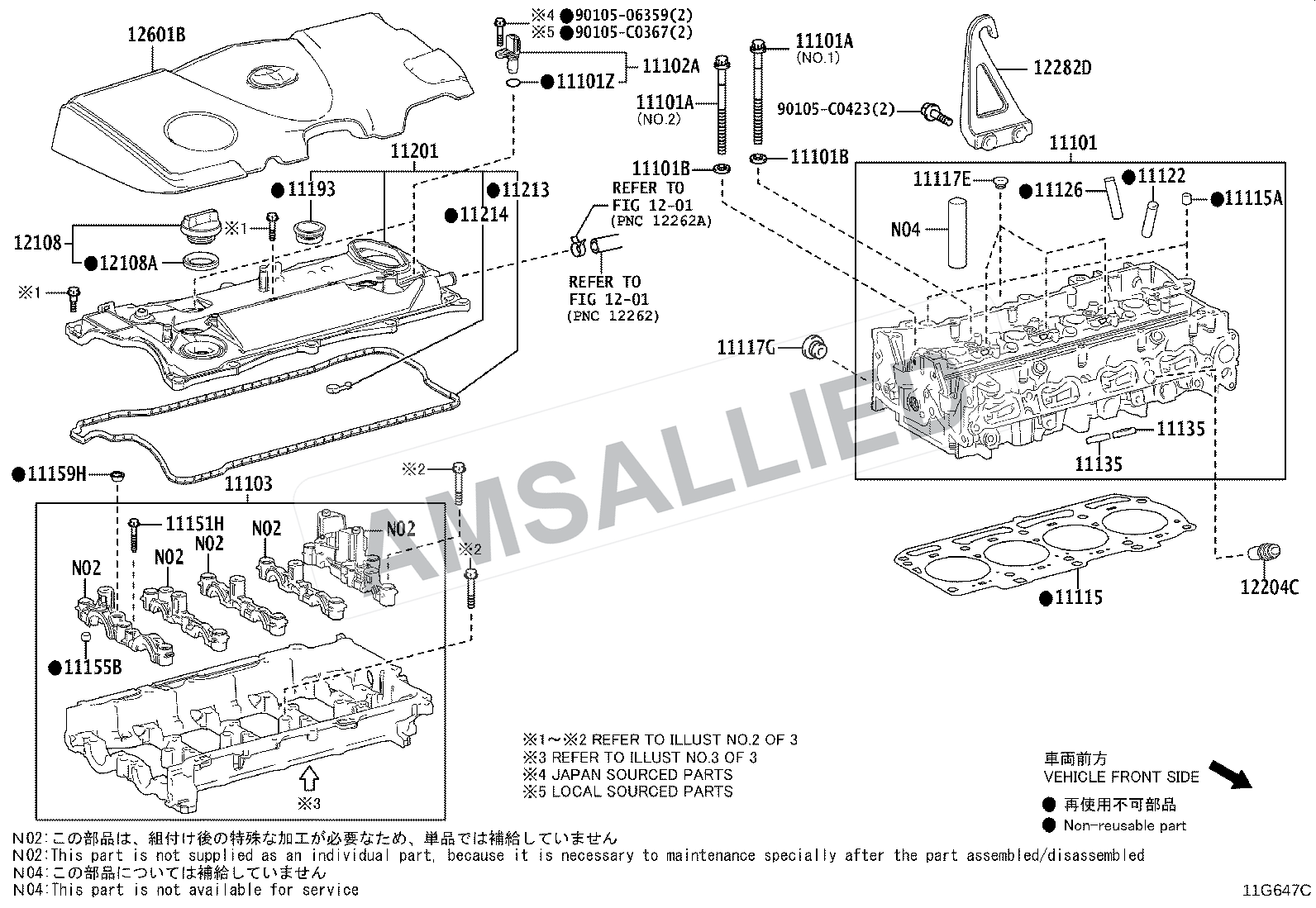

Figure 1104 · Cylinder Head
62 genuine catalog part numbers · Production from 2024-01
Part numbers in this diagram
62 partsHead Sub-assy, Cylinder
PNC 11101
Head Sub-assy, Cylinder
PNC 11101
Housing Sub-assy, Camshaft
PNC 11103
Gasket, Cylinder Head
PNC 11115
Gasket, Cylinder Head
PNC 11115
Bush, Exhaust Valve Guide
PNC 11126
Bush, Intake Valve Guide
PNC 11122
Bush, Intake Valve Guide
PNC 11122, 11126
Bush, Exhaust Valve Guide
PNC 11126
Bush, Intake Valve Guide
PNC 11122
Seat, Exhaust Valve
PNC 11135
Gasket, Camshaft Bearing Cap Oil Hole
PNC 11159H
Gasket, Spark Plug Tube
PNC 11193
Cover Sub-assy, Cylinder Head
PNC 11201
Cover Sub-assy, Cylinder Head
PNC 11201
Gasket, Cylinder Head Cover
PNC 11213
Gasket, Cylinder Head Cover, No.2
PNC 11214
Gasket, Cylinder Head Cover
PNC 11213
Guide, Oil Level Gage
PNC 11452D
Guide, Oil Level Gage
PNC 11452D
Cap Assy, Oil Filler
PNC 12180E
Cap Assy, Oil Filler
PNC 12180E
Valve Sub-assy, Ventilation
PNC 12204C
Valve Sub-assy, Ventilation
PNC 12204C
Hanger, Engine, No.2
PNC 12282D
Gage Sub-assy, Oil Level
PNC 15301B
Gage Sub-assy, Oil Level
PNC 15301B
Bolt(for Cylinder Head Cover)
PNC 11201H
Bolt(for Cylinder Head Cover)
PNC 11201H
Bolt(for Cylinder Head Cover)
PNC 11201H
Pin, Ring
PNC 11115A
Pin, Ring
PNC 11155B, 11155C
Pin, Straight, No.1
PNC 11119A
Bolt(for Cylinder Head Set)
PNC 11101A
Bolt(for Camshaft Housing Set)
PNC 11103A
Bolt(for Cylinder Head Cover)
PNC 11201H
Sensor, Cam Position
PNC 11101E
Gasket(for Cylinder Head Screw Plug)
PNC 11117J
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Bolt(for Cylinder Head Cover)
PNC 11201H
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Washer, Plate(for Cylinder Head Set)
PNC 11101B
Pin, Ring
PNC 11115A
Pin, Ring
PNC 11155B
O Ring, Cam Position Sensor
PNC 11101Z
Plug, W/head Straight Screw, No.1
PNC 11117E
Plug, W/head Straight Screw, No.2
PNC 11117F
Gasket(for Oil Filler Cap)
PNC 12108A
Bolt(for Cylinder Head Set)
PNC 11101A
Bolt(for Cylinder Head Set)
PNC 11101A
Sensor, Camshaft Position
PNC 11102A
Bolt(for Camshaft Housing Set)
PNC 11103A
Bolt(for Camshaft Housing Set)
PNC 11103F
Ring, O(for Oil Level Gage)
PNC 15301C
Ring, O(for Oil Level Gage Guide)
PNC 11452E
Diagram Hardware / Fastener
PNC 90105C0367
Diagram Hardware / Fastener
PNC 90105C0423
Diagram Hardware / Fastener
PNC 9021008045
Diagram Hardware / Fastener
PNC 91552F1040
Diagram Hardware / Fastener
PNC 9010508539
