Figure 8719 · Heating & Air Conditioning - Compressor

9 genuine catalog part numbers · Production from 2023-04

Open interactive figure

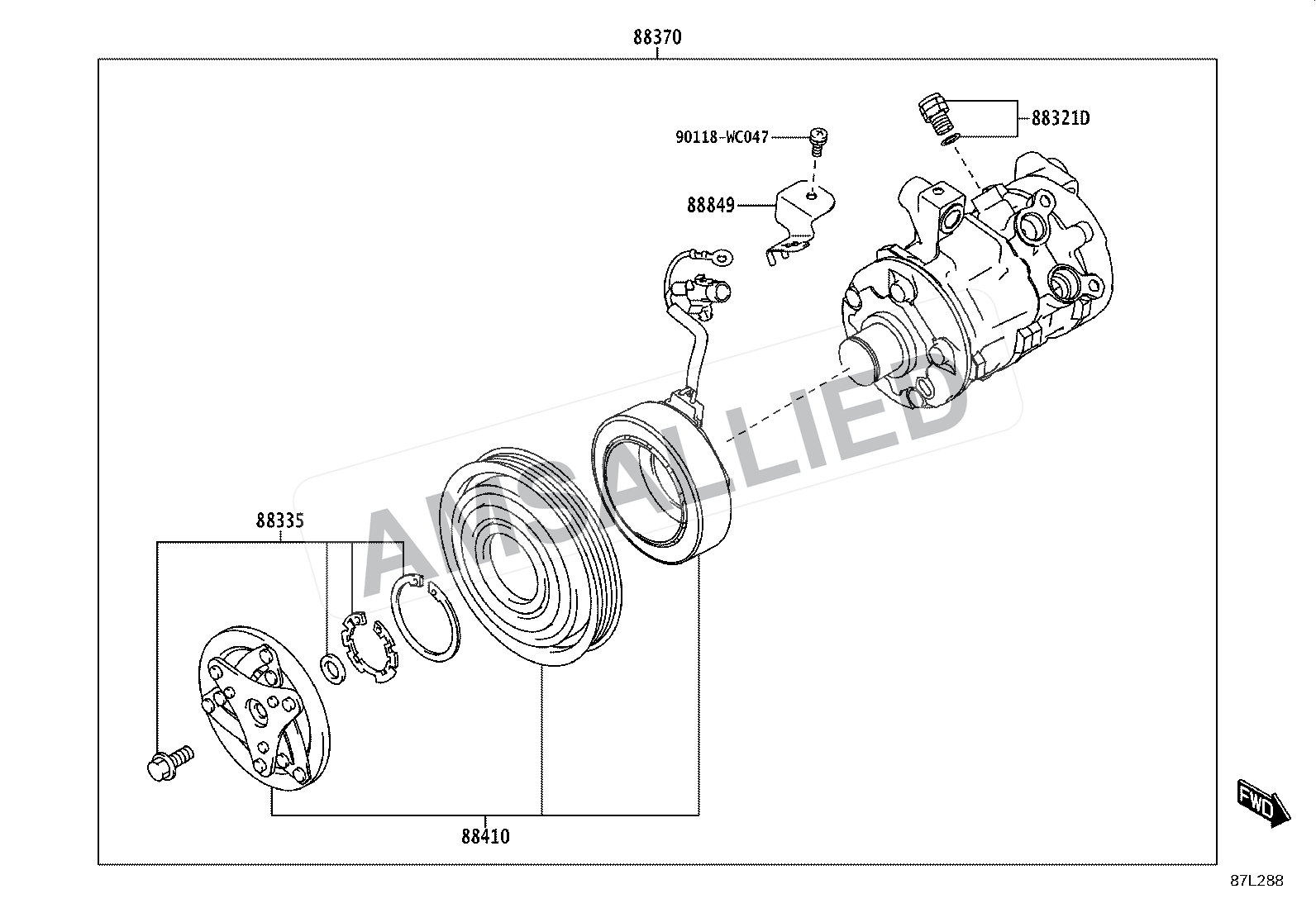

Toyota Hyryder Heating & Air Conditioning - Compressor exploded parts diagram, figure 8719 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

9 parts

Compressor Assy, W/pulley

PNC 88310

Compressor Assy, W/motor

PNC 88370

Valve, Pressure Relief

PNC 88321D

Bracket, Cooler Compressor, No.2

PNC 88849

Clutch Assy, Magnet

PNC 88410

Bracket, Compressor Mounting, No.1

PNC 88431

Gasket Kit, Overhaul

PNC 88335

Diagram Hardware / Fastener

PNC 90118WC047

Diagram Hardware / Fastener

PNC 90118WC028
