Condenser Assy, Cooler
PNC 88460
Electrical

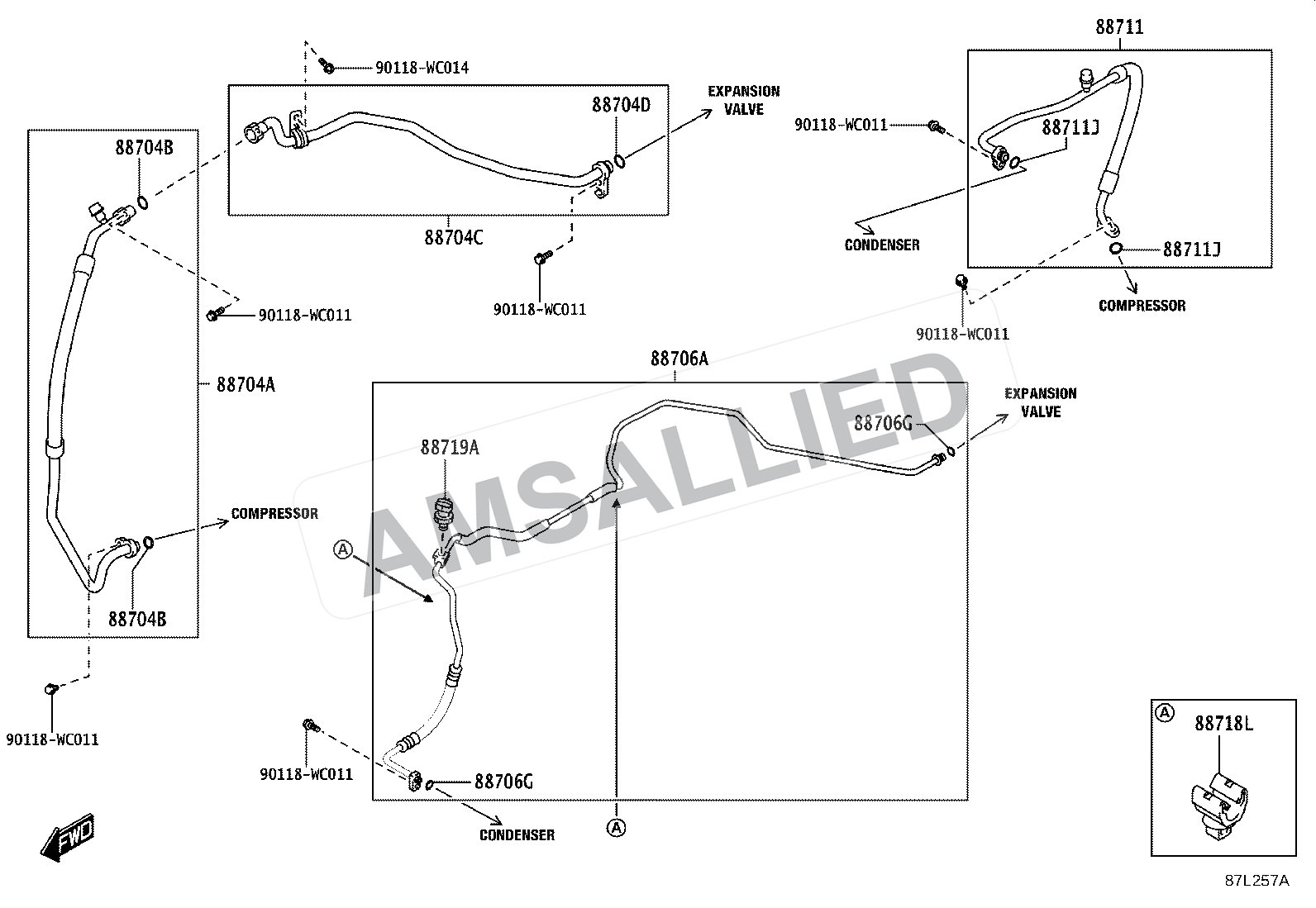

Figure 8718 · Heating & Air Conditioning - Cooler Piping
30 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
30 partsCondenser Assy, Cooler
PNC 88460
Packing A (for Cooler)
PNC 88891A
Packing A (for Cooler)
PNC 88891A
Packing B (for Cooler)
PNC 88891B
Packing B (for Cooler)
PNC 88891B
Packing C (for Cooler)
PNC 88891C
Packing C (for Cooler)
PNC 88891C
Packing D (for Cooler)
PNC 88891D
Packing E (for Cooler)
PNC 88891E
Packing E (for Cooler)
PNC 88891E
Packing F (for Cooler)
PNC 88891F
Hose Sub-assy, Suction, A
PNC 88704A
Hose Sub-assy, Suction, A
PNC 88704A
Hose Sub-assy, Suction, B
PNC 88704C
Hose Sub-assy, Suction, B
PNC 88704C
Tube Sub-assy, Liquid, A
PNC 88706A
Tube Sub-assy, Liquid, A
PNC 88706A
Hose, Cooler Refrigerant Discharge, No.1
PNC 88711
Hose, Cooler Refrigerant Discharge, No.1
PNC 88711
Clamp, Piping
PNC 88718L
Sensor, Air Conditioner Pressure
PNC 88719A
Label, Cooler Service Caution
PNC 88723B
Label, Cooler Service Caution
PNC 88723B
Ring, O(for Liquid Tube)
PNC 88706G
Ring, O, No.1(for Discharge Hose)
PNC 88711J
Ring, O(for Suction Hose)
PNC 88704B, 88704D
Diagram Hardware / Fastener
PNC 90118WC011
Diagram Hardware / Fastener
PNC 90118WC014
Diagram Hardware / Fastener
PNC 90118WCC77
