Electrical

Figure 8603 · Navigation & Front Monitor Display

17 genuine catalog part numbers · Production from 2023-04

Open interactive figure

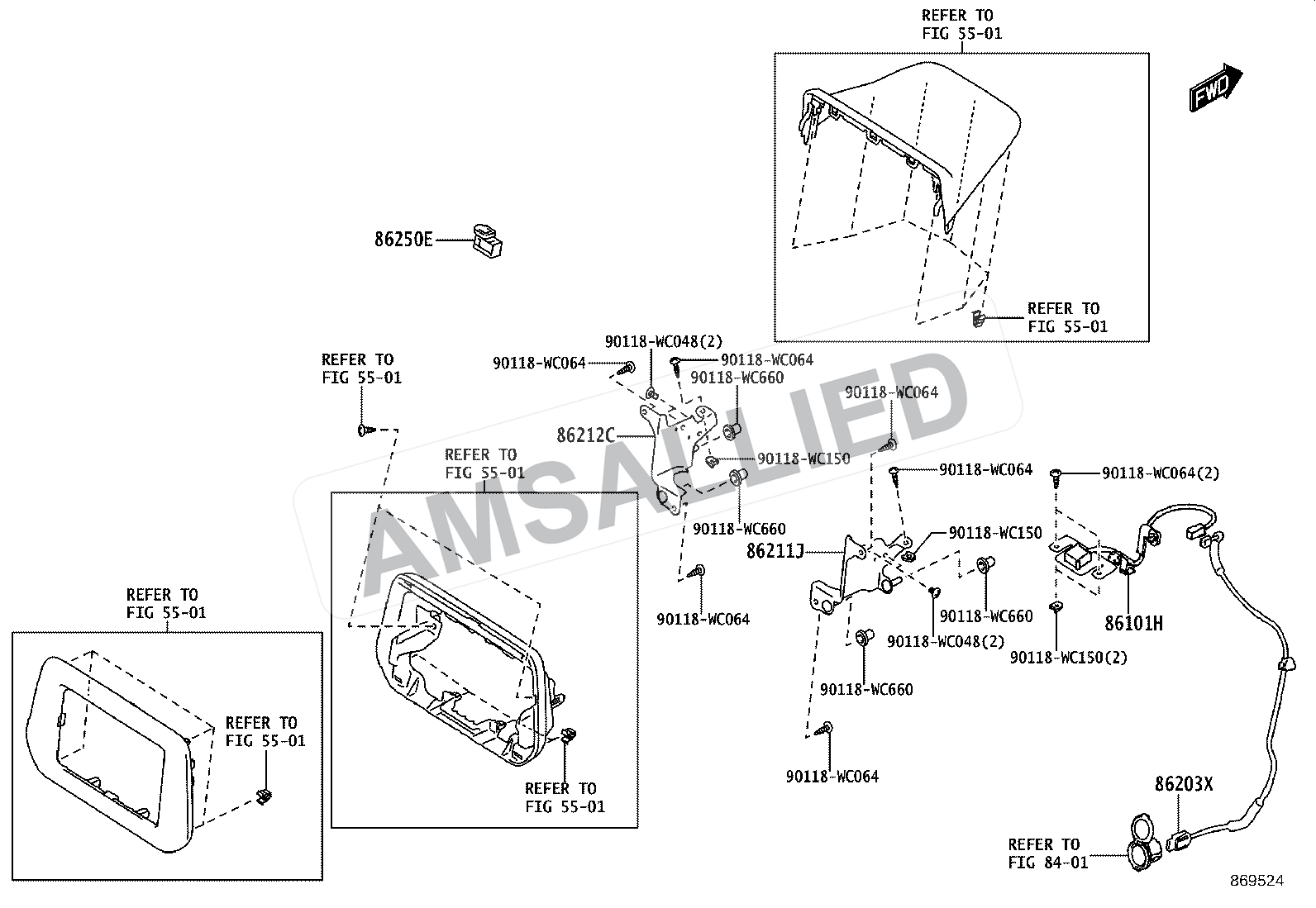

Toyota Hyryder Navigation & Front Monitor Display exploded parts diagram, figure 8603 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

17 parts

86101-WC020

Cord Sub-assy, Antenna

PNC 86101H

86140-WC053

Receiver Assy, Radio & Display

PNC 86140A

86140-WC054

Receiver Assy, Radio & Display

PNC 86140A

86140-WC055

Receiver Assy, Radio & Display

PNC 86140A

86203-WC008

Wiring Sub-assy, Radio

PNC 86203X

86211-WC012

Bracket, Radio Receiver, No.1

PNC 86211J

86211-WC013

Bracket, Radio Receiver, No.1

PNC 86211J

86211-WC014

Bracket, Radio Receiver, No.1

PNC 86211J

86212-WC012

Bracket, Radio Receiver, No.2

PNC 86212C

86212-WC013

Bracket, Radio Receiver, No.2

PNC 86212C

86212-WC014

Bracket, Radio Receiver, No.2

PNC 86212C

86250-WC003

Microphone Assy, Amplifier

PNC 86250E

86764-WC002

Antenna Assy, Navigation

PNC 86860

90118-WC150

Diagram Hardware / Fastener

PNC 90118WC150

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WC660

Diagram Hardware / Fastener

PNC 90118WC660

90118-WC048

Diagram Hardware / Fastener

PNC 90118WC048
